CED 005006-500

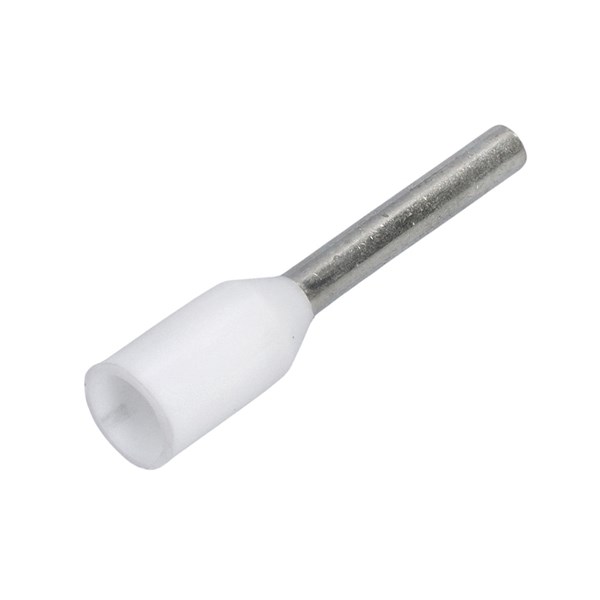

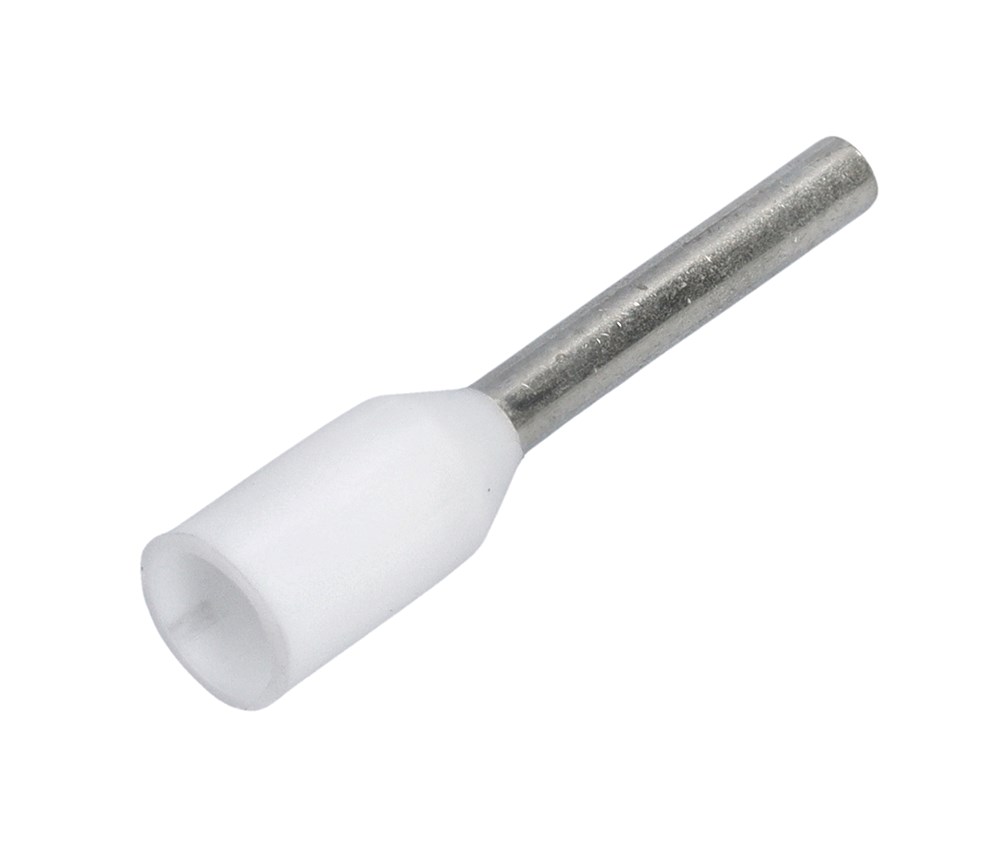

INSULATED END-SLEEVE, 0.5mm2-6 WHITE

Sku

CED 005006-500

Availability:
Yes
  • Total: 1
Product Description
Cord end-sleeves, CED-serien
  • Total: 1
  • Total: 1

Related items

Cord end-sleeves, CED-serien

  • Total: 1
Insulated Yes
Reel/roll packaging No
Construction type Single-sleeves
Colour White
Surface protection Tinned
Material insulation Polypropylene (PP)
Material Copper
Colour code CED/CTD (DIN)
Halogen free Yes
ID 1 mm
T 0.15 mm
L 12 mm
N 6 mm
W 2.6 mm
MOQ 500 .
Unit pcs
Sleeve Length 6 mm
AWG size 20
Total length 12 mm
Nominal cross section 0.5 mm²
Barcode 733117615406
Country of origin DE
Item status Stock item, normally in stock with reservation for in between sales.
MOQ 500 .
Stock code CED 005006-500
Taric code 85369010
Unit pcs
Approved according to CE Yes
Approved according to CSA Yes
With approval according to UL Yes
ETIM-Class EC000005 - Cable end sleeve
ETIM-Release 9.0
Trademark NEMIQ
Product Group Insulated single end-sleeves
Alternative SKU CED005006-500
Conflict Minerals Yes, see report under tab "Documents"
PFAS No PFAS
POPs No POPs
REACH No SVHC (240 Subs. 23 Jan 2024)
RoHS RoHS 3 (2015/863)
SCIP Not Applicable
US TSCA No (5 PBT Subs, Feb 2021)
