360 view
CEW 003408-1000

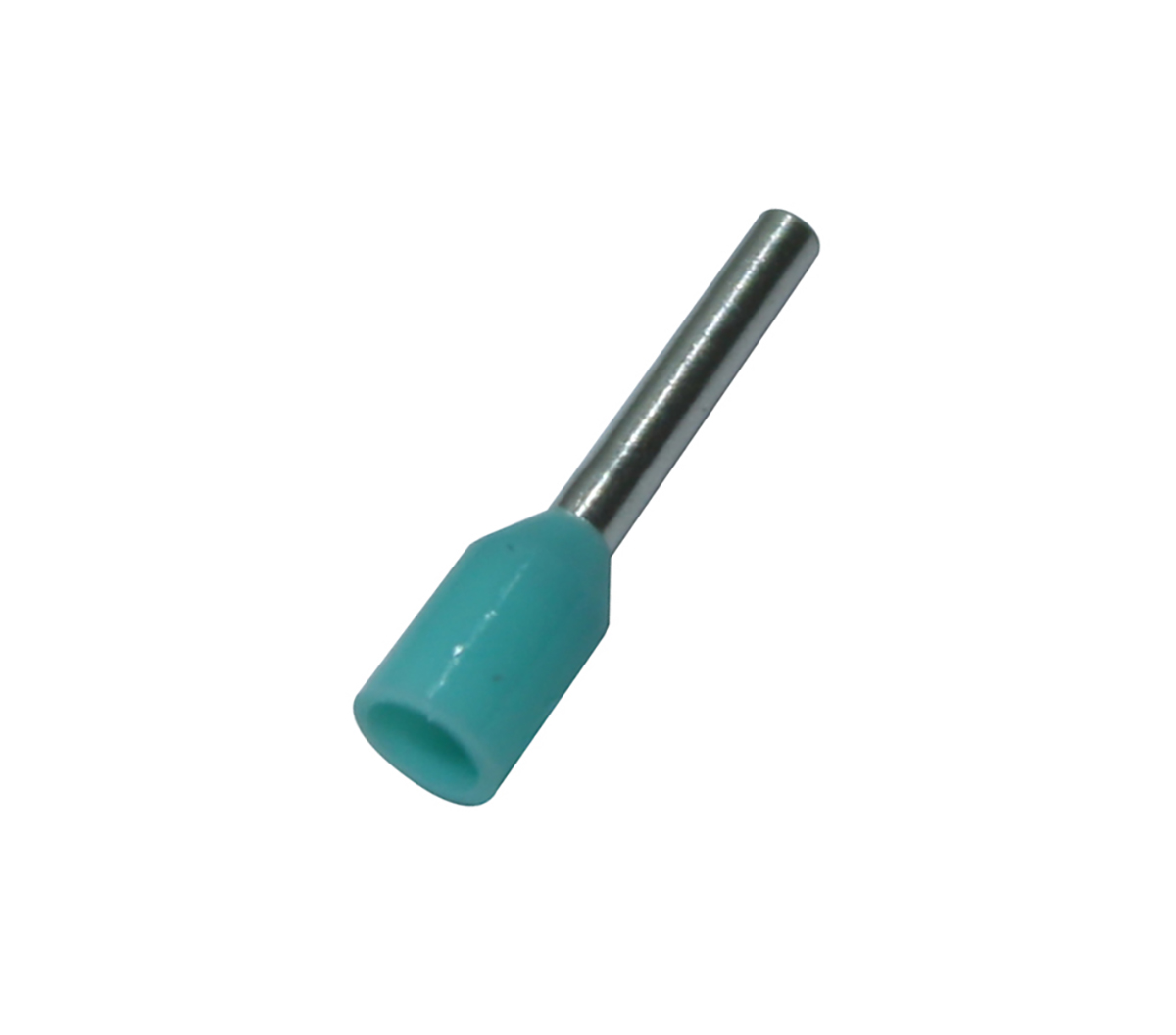

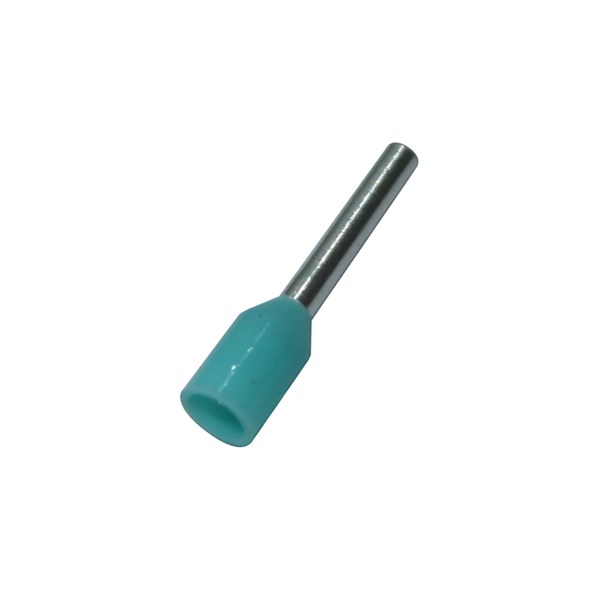

INSULATED END-SLEEVE, 0.34mm2-8 TURQUOISE
CEW 003408-1000
- Availability:
-
Yes
- Total: 1
Related items
Cord end-sleeves, CEW-serien
Material: Tinned copper
Temperature range: Up to 110º C (230º F)
Easy entry
DIN 46228-4:2020-03
Colour code: Old German color line
- Total: 1
Product Properties
| Insulated | Yes |
|---|---|
| Reel/roll packaging | No |
| Construction type | Single-sleeves |
| Colour | Turquoise |
| Surface protection | Tinned |
| Material insulation | Polypropylene (PP) |
| Material | Copper |
| Colour code | CEW/CTW (Old German colorline) |
| Halogen free | Yes |
Product video
Dimensions
| ID | 0.9 mm |
|---|---|
| T | 0.15 mm |
| L | 12.4 mm |
| N | 8 mm |
| W | 2 mm |
| MOQ | 1000 . |
| Unit | pcs |
| Sleeve Length | 8 mm |
| AWG size | 22 |
| Total length | 12.4 mm |
| Nominal cross section | 0.34 mm² |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117615496 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1000 . |
| Stock code | CEW 003408-1000 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| With approval according to UL | Yes |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (247 Subs. 21 Jan 2025) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
End sleeve Pull of requirements
Other info
| ETIM-Class | EC000005 - Cable end sleeve |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Insulated single end-sleeves |
| Alternative SKU | CEW003408-1000 |
Generate Datasheet:
