Grenklämmor

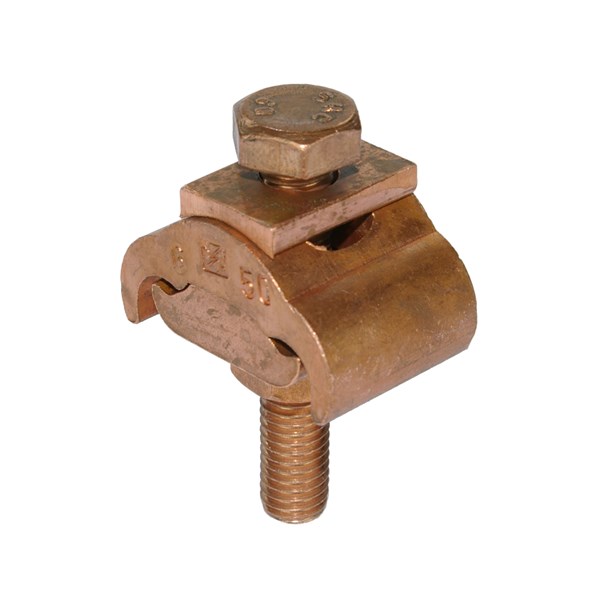

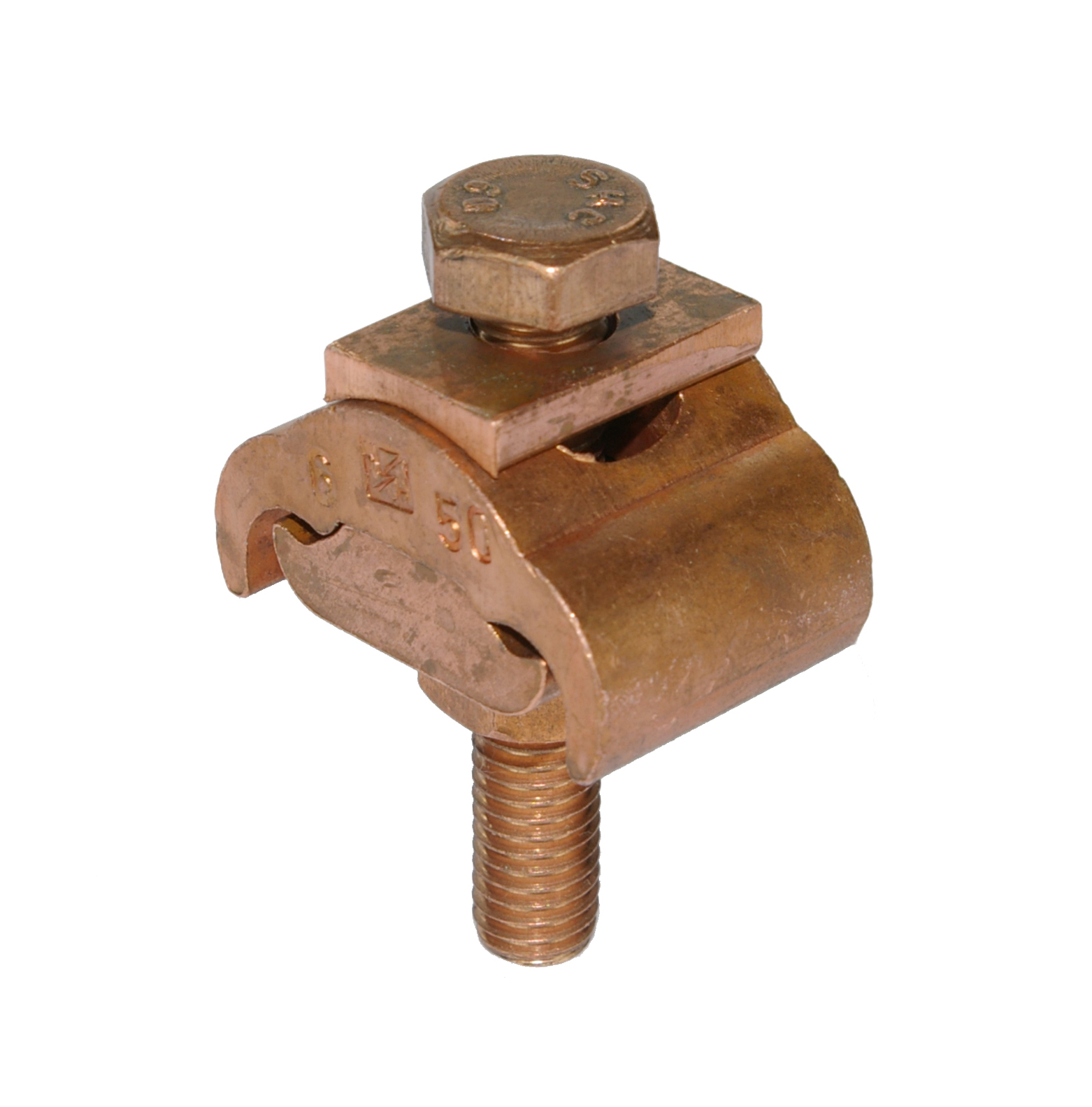

Grenklämma av koppar
Överdelen är utformad så att bultarna alltid dras mot en plan yta, trots att ledarna har olika areor.
Ledarspåren ger en jämn 4-punktsanläggning mot ledarna, oavsett area.
Material:
Bultar: Brons
Brickor: Fosforbrons
Muttrar: Koppar
Ã…tdragningskraft: 22 Nm
Technical properties
- Material main conductor:
- Copper
- Material branch conductor:
- Copper
- Terminal insulated:
- No
- Clamping channel opening main conductor:
- Both sides open
- Clamping channel opening branch conductor:
- Both sides open
- Type of connection:
- Screwed connection
- Max Temp:
- 150 °C
- Surface protection:
- Bare
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 7
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| GRENKLÄMMA, 2.5-16 mm², 1xM5 | 5 . | pcs |
Yes
|
|
|
| GRENKLÄMMA, 2.5-25 mm², 1xM6 | 1 . | pcs |
Yes
|
|
|
| GRENKLÄMMA, 6-50 mm², 1xM8 | 1 . | pcs |
Yes
|
|
|
| GRENKLÄMMA, 10-70 mm², 1xM8 | 1 . | pcs |
Yes
|
|
|
| GRENKLÄMMA, 6-70 mm², 2xM8 | 1 . | pcs |
Yes
|
|
|
| GRENKLÄMMA, 16-95 mm², 2xM8 | 1 . | pcs |
Yes
|
|
|
| GRENKLÄMMA, 16-150 mm², 2xM10 | 1 . | pcs |
Yes
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
| Product Description | Availability | ||
|---|---|---|---|
| GRENKLÄMMA, 2.5-16 mm², 1xM5 |
Yes
|
|
|
| GRENKLÄMMA, 2.5-25 mm², 1xM6 |
Yes
|
|
|
| GRENKLÄMMA, 6-50 mm², 1xM8 |
Yes
|
|
|
| GRENKLÄMMA, 10-70 mm², 1xM8 |
Yes
|
|
|
| GRENKLÄMMA, 6-70 mm², 2xM8 |
Yes
|
|
|
| GRENKLÄMMA, 16-95 mm², 2xM8 |
Yes
|
|
|
| GRENKLÄMMA, 16-150 mm², 2xM10 |
Yes
|
|
|
- Total: 7
Technical Properties
- Total: 7
| Product Description | Material main conductor | Material branch conductor | Terminal insulated | Clamping channel opening main conductor | Clamping channel opening branch conductor | Type of connection | Max Temp | Surface protection | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GRENKLÄMMA, 2.5-16 mm², 1xM5 | Copper | Copper | No | Both sides open | Both sides open | Screwed connection | 150 °C | Bare |
Yes
|
|
|
| GRENKLÄMMA, 2.5-25 mm², 1xM6 | Copper | Copper | No | Both sides open | Both sides open | Screwed connection | 150 °C | Bare |
Yes
|
|
|
| GRENKLÄMMA, 6-50 mm², 1xM8 | Copper | Copper | No | Both sides open | Both sides open | Screwed connection | 150 °C | Bare |
Yes
|
|
|
| GRENKLÄMMA, 10-70 mm², 1xM8 | Copper | Copper | No | Both sides open | Both sides open | Screwed connection | 150 °C | Bare |
Yes
|
|
|
| GRENKLÄMMA, 6-70 mm², 2xM8 | Copper | Copper | No | Both sides open | Both sides open | Screwed connection | 150 °C | Bare |
Yes
|
|
|
| GRENKLÄMMA, 16-95 mm², 2xM8 | Copper | Copper | No | Both sides open | Both sides open | Screwed connection | 150 °C | Bare |
Yes
|
|
|
| GRENKLÄMMA, 16-150 mm², 2xM10 | Copper | Copper | No | Both sides open | Both sides open | Screwed connection | 150 °C | Bare |
Yes
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| GRENKLÄMMA, 2.5-16 mm², 1xM5 | EC001062 - Branch terminal | 9.0 |
|
Screw Connections & Clamps | 277480-000, DA 16 A, HEL-3005, 709588-1 | E0651000 |
Yes
|
|
|
| GRENKLÄMMA, 2.5-25 mm², 1xM6 | EC001062 - Branch terminal | 9.0 |
|
Screw Connections & Clamps | GRENKLÄMMA | E0651002 |
Yes
|
|
|
| GRENKLÄMMA, 6-50 mm², 1xM8 | EC001062 - Branch terminal | 9.0 |
|
Screw Connections & Clamps | GRENKLÄMMA | E0651006 |
Yes
|
|
|
| GRENKLÄMMA, 10-70 mm², 1xM8 | EC001062 - Branch terminal | 9.0 |
|
Screw Connections & Clamps | E0651007 |
Yes
|
|
|
|
| GRENKLÄMMA, 6-70 mm², 2xM8 | EC001062 - Branch terminal | 9.0 |
|
Screw Connections & Clamps | GRENKLÄMMA | E0651010 |
Yes
|
|
|
| GRENKLÄMMA, 16-95 mm², 2xM8 | EC001062 - Branch terminal | 9.0 |
|
Screw Connections & Clamps | GRENKLÄMMA | E0651012 |
Yes
|
|
|
| GRENKLÄMMA, 16-150 mm², 2xM10 | EC001062 - Branch terminal | 9.0 |
|
Screw Connections & Clamps | 591368-000 HEL-3032 | E0651014 |
Yes
|
|
|
- Total: 7
