Gängtappar

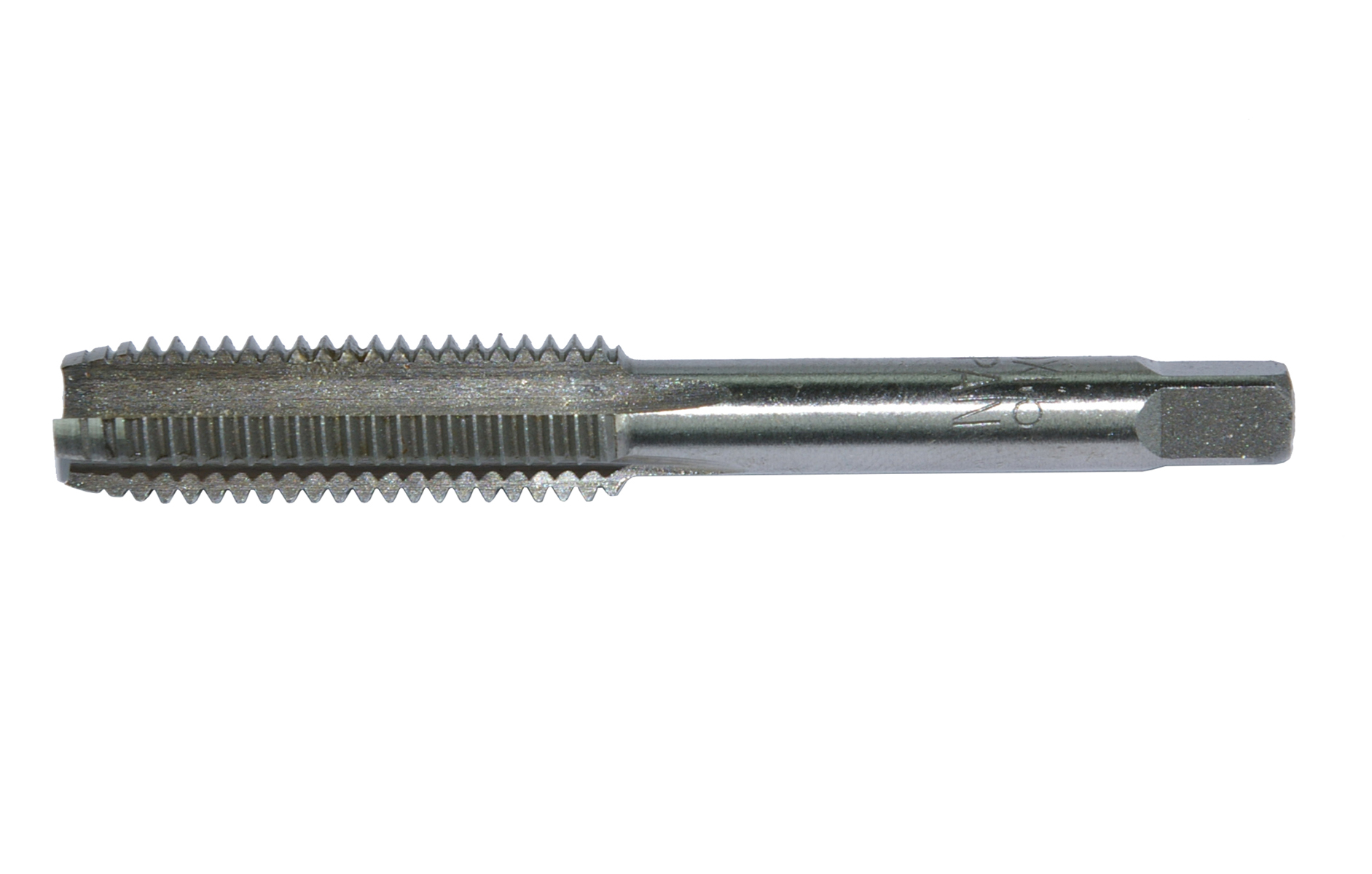

Metric intermediate tap made of high speed steel. Intended for alloy steel (400-800 N/mm²) and cast iron.
Available from M3 to m12.
Technical properties
- Key square:
- 5.5 mm, 7 mm, 2.7 mm, 3.4 mm, 4.9 mm
- Number of cutting edges:
- 4 ., 3 .
- Flank angle:
- 60 °
- Colour ring identification:
- None
- Cutting material:
- HSS
- Suitable for stainless steel:
- No
- Suitable for blind holes:
- Yes
- Left-handed thread:
- No
- With cooling channel:
- Yes
- Model:
- Hand tap
- Thread type:
- Metric
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 7
| Product Description | Thread size | Shaft diameter | Key square | Number of cutting edges | Flank angle | MOQ | Shaft length | Unit | Total length | Pitch thread | Thread length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TAPPING DRILL M 3 INTERMEDIATE TAP, HSS | 3 . | 3.5 mm | 2.7 mm | 3 . | 60 ° | 10 . | 29 mm | pcs | 40 mm | 0.5 mm | 11 mm |
Yes
|
|
|
| TAPPING DRILL M 4 INTERMEDIATE TAP, HSS | 4 . | 4.5 mm | 3.4 mm | 3 . | 60 ° | 10 . | 32 mm | pcs | 45 mm | 0.7 mm | 13 mm |
Yes
|
|
|
| TAPPING DRILL M 5 INTERMEDIATE TAP, HSS | 5 . | 6 mm | 4.9 mm | 3 . | 60 ° | 10 . | 34 mm | pcs | 50 mm | 0.8 mm | 16 mm |
Yes
|
|
|
| TAPPING DRILL M 6 INTERMEDIATE TAP, HSS | 6 . | 6 mm | 4.9 mm | 3 . | 60 ° | 10 . | 31 mm | pcs | 50 mm | 1 mm | 19 mm |
Yes
|
|
|
| TAPPING DRILL M 8 INTERMEDIATE TAP, HSS | 8 . | 6 mm | 4.9 mm | 4 . | 60 ° | 10 . | 24 mm | pcs | 56 mm | 1.25 mm | 22 mm |
Yes
|
|
|
| TAPPING DRILL M 10 INTERMEDIATE TAP, HSS | 10 . | 7 mm | 5.5 mm | 4 . | 60 ° | 10 . | 46 mm | pcs | 70 mm | 1.5 mm | 24 mm |
Yes
|
|
|
| TAPPING DRILL M 12 INTERMEDIATE TAP, HSS | 12 . | 9 mm | 7 mm | 4 . | 60 ° | 10 . | 46 mm | pcs | 75 mm | 1.75 mm | 29 mm |
Yes
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
- Total: 7
Technical Properties
- Total: 7
| Product Description | Key square | Number of cutting edges | Flank angle | Colour ring identification | Cutting material | Suitable for stainless steel | Suitable for blind holes | Left-handed thread | With cooling channel | Model | Thread type | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TAPPING DRILL M 3 INTERMEDIATE TAP, HSS | 2.7 mm | 3 . | 60 ° | None | HSS | No | Yes | No | Yes | Hand tap | Metric |
Yes
|
|
|
| TAPPING DRILL M 4 INTERMEDIATE TAP, HSS | 3.4 mm | 3 . | 60 ° | None | HSS | No | Yes | No | Yes | Hand tap | Metric |
Yes
|
|
|
| TAPPING DRILL M 5 INTERMEDIATE TAP, HSS | 4.9 mm | 3 . | 60 ° | None | HSS | No | Yes | No | Yes | Hand tap | Metric |
Yes
|
|
|
| TAPPING DRILL M 6 INTERMEDIATE TAP, HSS | 4.9 mm | 3 . | 60 ° | None | HSS | No | Yes | No | Yes | Hand tap | Metric |
Yes
|
|
|
| TAPPING DRILL M 8 INTERMEDIATE TAP, HSS | 4.9 mm | 4 . | 60 ° | None | HSS | No | Yes | No | Yes | Hand tap | Metric |
Yes
|
|
|
| TAPPING DRILL M 10 INTERMEDIATE TAP, HSS | 5.5 mm | 4 . | 60 ° | None | HSS | No | Yes | No | Yes | Hand tap | Metric |
Yes
|
|
|
| TAPPING DRILL M 12 INTERMEDIATE TAP, HSS | 7 mm | 4 . | 60 ° | None | HSS | No | Yes | No | Yes | Hand tap | Metric |
Yes
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| TAPPING DRILL M 3 INTERMEDIATE TAP, HSS | EC002155 - Tapping drill | 9.0 |
|
Tapping drill | M3 |
Yes
|
|
|
| TAPPING DRILL M 4 INTERMEDIATE TAP, HSS | EC002155 - Tapping drill | 9.0 |
|
Tapping drill | M4 |
Yes
|
|
|
| TAPPING DRILL M 5 INTERMEDIATE TAP, HSS | EC002155 - Tapping drill | 9.0 |
|
Tapping drill | M5 |
Yes
|
|
|
| TAPPING DRILL M 6 INTERMEDIATE TAP, HSS | EC002155 - Tapping drill | 9.0 |
|
Tapping drill | M6 |
Yes
|
|
|
| TAPPING DRILL M 8 INTERMEDIATE TAP, HSS | EC002155 - Tapping drill | 9.0 |
|
Tapping drill | M8 |
Yes
|
|
|
| TAPPING DRILL M 10 INTERMEDIATE TAP, HSS | EC002155 - Tapping drill | 9.0 |
|
Tapping drill | M10 |
Yes
|
|
|
| TAPPING DRILL M 12 INTERMEDIATE TAP, HSS | EC002155 - Tapping drill | 9.0 |
|
Tapping drill | M12 |
Yes
|
|
|
- Total: 7
