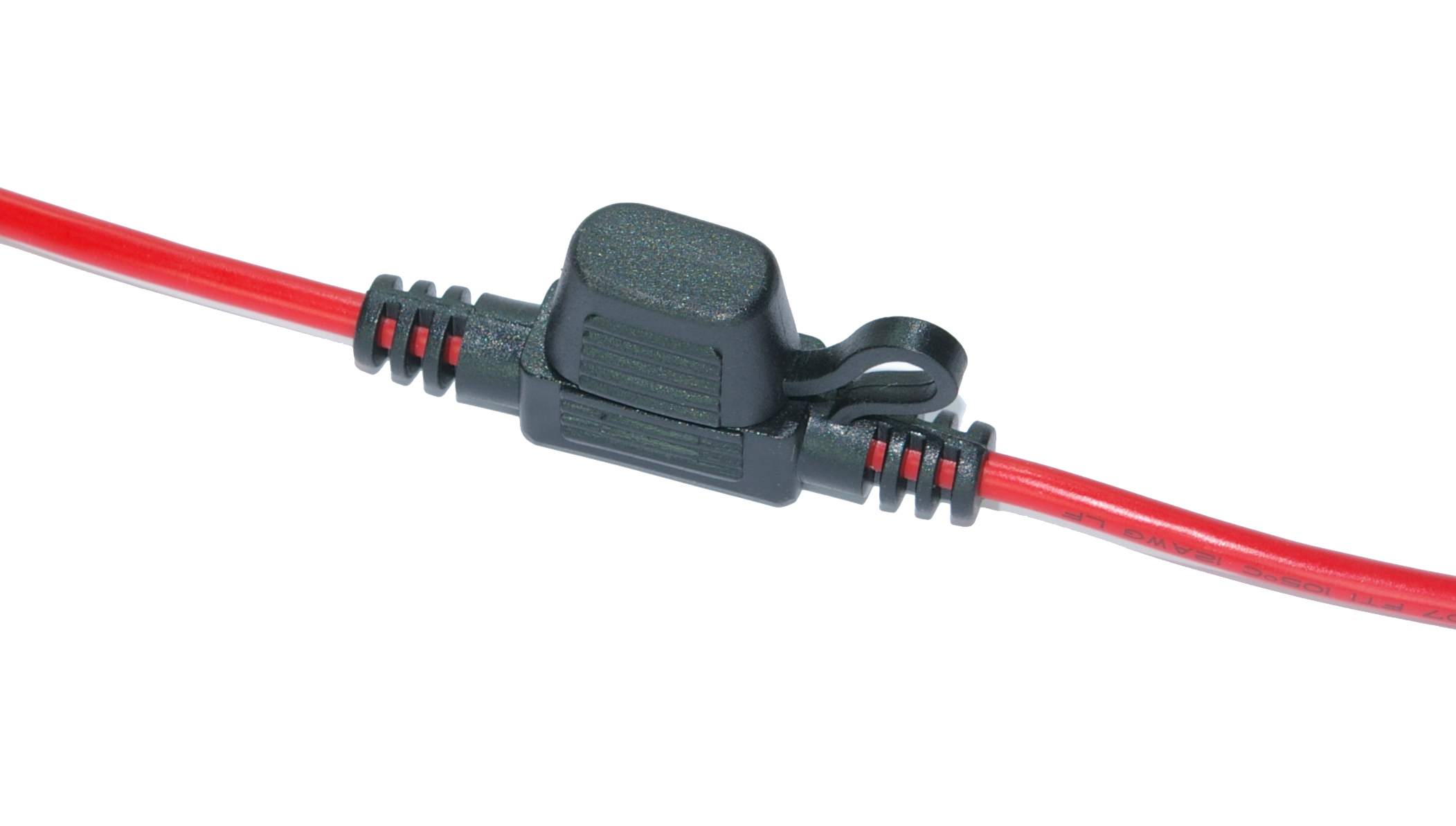

Fuse holder with cover and cable
För Minisäkringar.
Svart hus med röd förtent mässingskabel.
Längd: 300 mm
Skyddsklass: IP54
Kabelarea:
ZC 712 A-B: AWG 12 (3.31 mm²)
ZC 712 C-B: AWG 16 (1.31 mm²)
Denna artikel finns även butiksförpackad i påse med streckkod, då med ändelse -PP på artikelnumret.
Technical properties
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Connection type:
- Other
- Rated current:
- 30 A
- Rated voltage:
- 58 V
- Type of current:
- DC
- Mounting method:
- Other
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
ZC-712_1
Dimensions
- Total: 3
| Product Description | MOQ | Unit | Rated voltage | Dimensions glass fuse | Availability | ||
|---|---|---|---|---|---|---|---|
| FUSE HOLDER, MINI BLACK HOUSE, 3.31mm2, AWG12, 300mm RED CABLE | 10 . | pcs | 58 V | Blade fuse |
Yes
|
|
|
| FUSE HOLDER, MINI BLACK HOUSE, 3.31mm2, AWG12, 300mm RED CABLE | 10 . | pck | 58 V | Blade fuse |
Yes
|
|
|
| FUSE HOLDER, MINI BLACK HOUSE, 1.31mm2, AWG16, 300mm RED CABLE | 10 . | pcs | 58 V | Blade fuse |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Approved according to CE | Availability | ||
|---|---|---|---|---|
| FUSE HOLDER, MINI BLACK HOUSE, 3.31mm2, AWG12, 300mm RED CABLE |
|
Yes
|
|
|
| FUSE HOLDER, MINI BLACK HOUSE, 3.31mm2, AWG12, 300mm RED CABLE |
Yes
|
|
|
|
| FUSE HOLDER, MINI BLACK HOUSE, 1.31mm2, AWG16, 300mm RED CABLE |
|
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Permitted cable outer temperature after assembling without vibration | Connection type | Rated current | Rated voltage | Type of current | Mounting method | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| FUSE HOLDER, MINI BLACK HOUSE, 3.31mm2, AWG12, 300mm RED CABLE | -30-70 °C | Other | 30 A | 58 V | DC | Other |
Yes
|
|
|
| FUSE HOLDER, MINI BLACK HOUSE, 3.31mm2, AWG12, 300mm RED CABLE | -30-70 °C | Other | 30 A | 58 V | DC | Other |
Yes
|
|
|
| FUSE HOLDER, MINI BLACK HOUSE, 1.31mm2, AWG16, 300mm RED CABLE | -30-70 °C | Other | 30 A | 58 V | DC | Other |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| FUSE HOLDER, MINI BLACK HOUSE, 3.31mm2, AWG12, 300mm RED CABLE | EC000036 - Miniature fuse holder | 9.0 |
|
Fuse Holder - Mini | ZC712A-B |
Yes
|
|
|
| FUSE HOLDER, MINI BLACK HOUSE, 3.31mm2, AWG12, 300mm RED CABLE | EC000036 - Miniature fuse holder | 9.0 |
|
Fuse Holder - Mini | ZC712AB-PP1 |
Yes
|
|
|
| FUSE HOLDER, MINI BLACK HOUSE, 1.31mm2, AWG16, 300mm RED CABLE | EC000036 - Miniature fuse holder | 9.0 |
|
Fuse Holder - Mini | ZC712C-B |
Yes
|
|
|
- Total: 3
