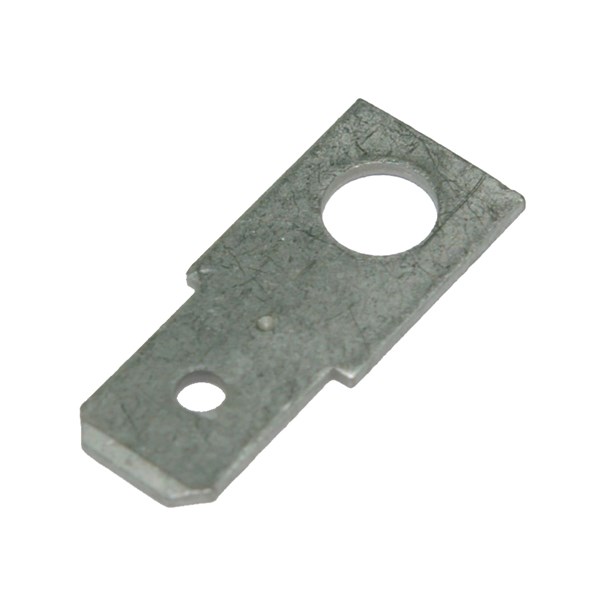

Flatstift (skruvmontage)
Enkla flatstift för skruvmontage
Ytbehandling: > 4mc Sn
Technical properties
- Model:
- Plug
- Max. current (Imax):
- 12 A, 24 A
- Insulation:
- Not isolated
- Colour insulation:
- Other
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Other
- Operating temperature:
- -40-110 °C
- Material:
- Brass
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 6
| Product Description | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(2.8x0.8mm), M5 | 100 . | pcs | 0.14-6.64 mm² | Flat 2.8x0.8 mm |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(2.8x0.8mm), M8 | 100 . | pcs | 0.14-6.64 mm² | Flat 2.8x0.8 mm |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(4.8x0.8mm), M3 | 100 . | pcs | 0.14-6.64 mm² | Flat 4.8x0.8 mm |
No
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(4.8x0.8mm), M4 | 100 . | pcs | 0.14-6.64 mm² | Flat 4.8x0.8 mm |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(6.3x0.8mm), M4 | 100 . | pcs | 0.14-6.64 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(6.3x0.8mm), M5 | 100 . | pcs | 0.14-6.64 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
- Total: 6
Technical Properties
- Total: 6
| Product Description | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(2.8x0.8mm), M5 | Plug | 12 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(2.8x0.8mm), M8 | Plug | 12 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(4.8x0.8mm), M3 | Plug | 24 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
No
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(4.8x0.8mm), M4 | Plug | 24 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(6.3x0.8mm), M4 | Plug | 24 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(6.3x0.8mm), M5 | Plug | 24 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
- Total: 6
Other information
- Total: 6
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(2.8x0.8mm), M5 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for screw mounting | B1803H5 |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(2.8x0.8mm), M8 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for screw mounting | B1803H8 |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(4.8x0.8mm), M3 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for screw mounting | B1804H3 |
No
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(4.8x0.8mm), M4 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for screw mounting | B1804H4 |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(6.3x0.8mm), M4 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for screw mounting | B1807H4 |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING STRAIGHT, 1x(6.3x0.8mm), M5 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for screw mounting | B1807H5 |
Yes
|
|
|
- Total: 6
