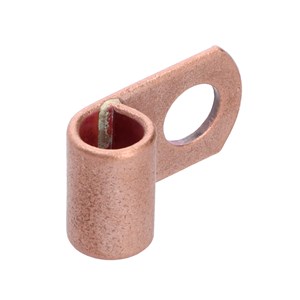

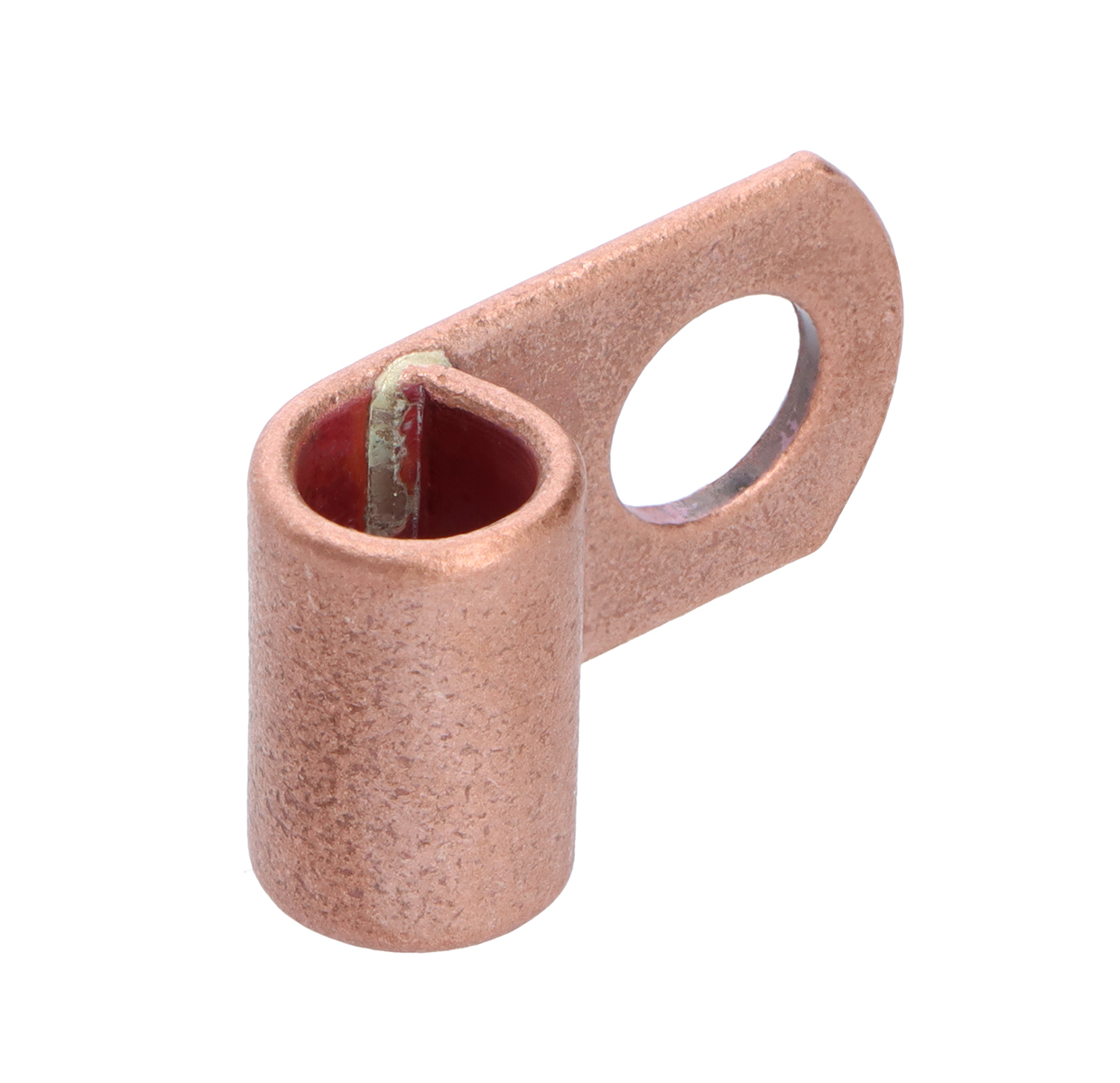

Flaggkabelskor
Flaggkabelskor som passar till mångtrådiga ledare.
Material: 99.9% ren Cu
Ytbehandling: Med eller utan ytbehandling
Technical properties
- Suitable for Class 5 conductor:
- Yes
- Suitable for Class 6 conductor:
- Yes
- Max. current (Imax):
- 66 A, 124 A, 153 A, 842 A, 227 A, 288 A
- Max Temp:
- 150 °C
- Surface protection:
- Untreated
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents

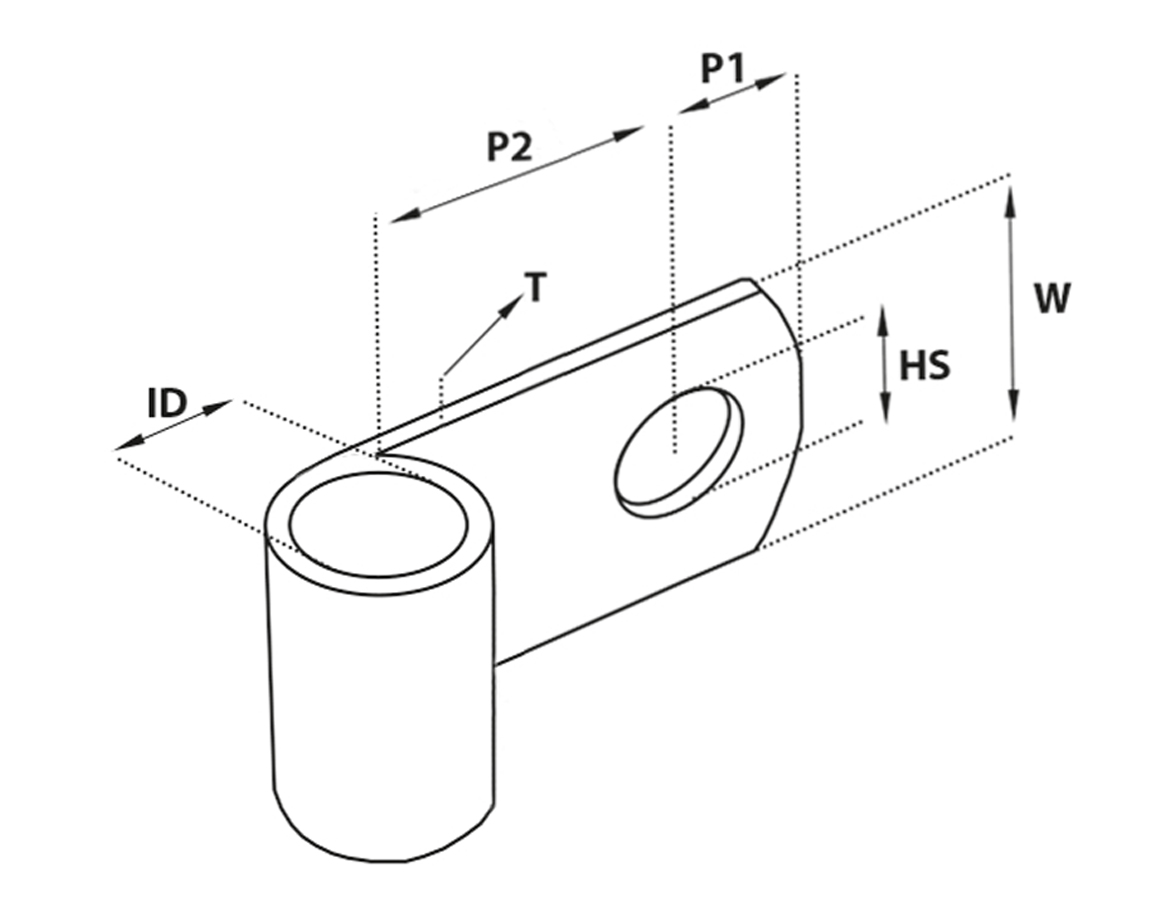

Dimensions
- Total: 6
Product Description | HS | ID | T | P1 | P2 | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FLAG TERMINAL 10mm2, M10, NO PLATING | 10.5 mm | 5 mm | 2 mm | 9.5 mm | 13 mm | 20 mm | 200 . | pcs | 10 . | 10 mm² |
Yes
|
|
|
CABLE LUG, FLAG, OF 25mm2, M10, NO PLATING | 10.5 mm | 8 mm | 2 mm | 10 mm | 18 mm | 20 mm | 200 . | pcs | 10 . | 25 mm² |
Yes
|
|
|
CABLE LUG, FLAG, OF 35mm2, M10, NO PLATING | 10.5 mm | 9 mm | 2 mm | 9.5 mm | 13 mm | 20 mm | 200 . | pcs | 10 . | 35 mm² |
Yes
|
|
|
CABLE LUG, FLAG, OF 50mm2, M20, NO PLATING | 21 mm | 11 mm | 2 mm | 18 mm | 22 mm | 40 mm | 200 . | pcs | 20 . | 50 mm² |
Yes
|
|
|
CABLE LUG, FLAG, OF 70mm2, M20, NO PLATING | 21 mm | 13 mm | 3 mm | 19 mm | 22 mm | 40 mm | 200 . | pcs | 20 . | 70 mm² |
Yes
|
|
|
CABLE LUG, FLAG, OF 95mm2, M20, NO PLATING | 21 mm | 15 mm | 3 mm | 19 mm | 22 mm | 40 mm | 100 . | pcs | 20 . | 95 mm² |
No
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
Product Description | Approved according to CE | Availability | ||
---|---|---|---|---|
FLAG TERMINAL 10mm2, M10, NO PLATING |
|
Yes
|
|
|
CABLE LUG, FLAG, OF 25mm2, M10, NO PLATING |
|
Yes
|
|
|
CABLE LUG, FLAG, OF 35mm2, M10, NO PLATING |
|
Yes
|
|
|
CABLE LUG, FLAG, OF 50mm2, M20, NO PLATING |
|
Yes
|
|
|
CABLE LUG, FLAG, OF 70mm2, M20, NO PLATING |
|
Yes
|
|
|
CABLE LUG, FLAG, OF 95mm2, M20, NO PLATING |
|
No
|
|
|
- Total: 6
Technical Properties
- Total: 6
Product Description | Suitable for Class 5 conductor | Suitable for Class 6 conductor | Max. current (Imax) | Max Temp | Surface protection | Availability | ||
---|---|---|---|---|---|---|---|---|
FLAG TERMINAL 10mm2, M10, NO PLATING | Yes | Yes | 66 A | 150 °C | Untreated |
Yes
|
|
|
CABLE LUG, FLAG, OF 25mm2, M10, NO PLATING | Yes | Yes | 124 A | 150 °C | Untreated |
Yes
|
|
|
CABLE LUG, FLAG, OF 35mm2, M10, NO PLATING | Yes | Yes | 153 A | 150 °C | Untreated |
Yes
|
|
|
CABLE LUG, FLAG, OF 50mm2, M20, NO PLATING | Yes | Yes | 842 A | 150 °C | Untreated |
Yes
|
|
|
CABLE LUG, FLAG, OF 70mm2, M20, NO PLATING | Yes | Yes | 227 A | 150 °C | Untreated |
Yes
|
|
|
CABLE LUG, FLAG, OF 95mm2, M20, NO PLATING | Yes | Yes | 288 A | 150 °C | Untreated |
No
|
|
|
- Total: 6
Other information
- Total: 6
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|---|
FLAG TERMINAL 10mm2, M10, NO PLATING | EC001050 - Crimp cable lug for copper conductors | 9.0 |
|
Flag terminals | 10-10FLAGGOF |
Yes
|
|
|
|
CABLE LUG, FLAG, OF 25mm2, M10, NO PLATING | EC001050 - Crimp cable lug for copper conductors | 9.0 |
|
Flag terminals | 25-10FLAGGOF |
Yes
|
|
|
|
CABLE LUG, FLAG, OF 35mm2, M10, NO PLATING | EC001050 - Crimp cable lug for copper conductors | 9.0 |
|
Flag terminals | 35-10FLAGGOF |
Yes
|
|
|
|
CABLE LUG, FLAG, OF 50mm2, M20, NO PLATING | EC001050 - Crimp cable lug for copper conductors | 9.0 |
|
Flag terminals | 50MM2, M20 | 50-21FLAGGOF |
Yes
|
|
|
CABLE LUG, FLAG, OF 70mm2, M20, NO PLATING | EC001050 - Crimp cable lug for copper conductors | 9.0 |
|
Flag terminals | 70MM2, M20 | 70-21FLAGGOF |
Yes
|
|
|
CABLE LUG, FLAG, OF 95mm2, M20, NO PLATING | EC001050 - Crimp cable lug for copper conductors | 9.0 |
|
Flag terminals | 95MM2, M20 | 95-20FLAGGOF |
No
|
|
|
- Total: 6
