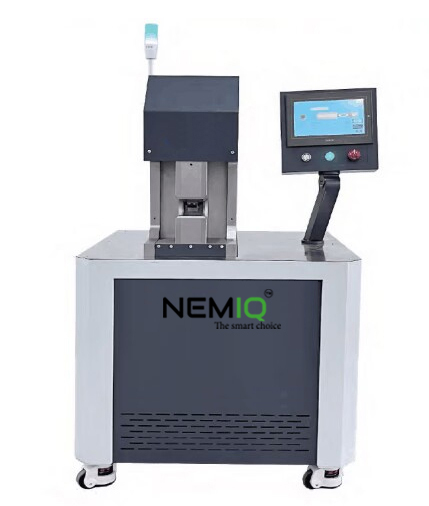

Electro-hydaulic HEX-crimp equipment for 10-400 mm²
The NTHC HX400 is a user-friendly hexagon crimp machine designed for seamless operation on copper and aluminum cable lugs without the need for die changes. Cable lugs and splices can be crimped using the same dies from 10-400 mm² for copper and 16-300 mm² for aluminum.
The NTHC HX400 works with high-precision hexagon crimping, simultaneously compressing all sides to minimize the risk of wings forming.
Selecting the right crimping option is easy with the touchscreen interface.
Compact pcsructure for space-saving.
Technical Specifications:
Pressing Force: 200 kN
Capacity: 10-400mm² Cu / 16-300mm² Al
Max Width: 38 mm
Die Width: 8 mm
Power Source: 220V 50Hz
Weight: 160 kg
Dimensions: 700 x 860 x 1260 mm
Technical properties
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Compression force:
- 200 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Electrical
- Compression shape:
- Hexagon
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
Product Description | Cross section | MOQ | Unit | Availability | ||
---|---|---|---|---|---|---|
HYDRAULISK PRESSUTRUSTNING, 6-KANTSPRESSNING UTAN PRESSBACKAR | 10-400 mm² | 1 . | pcs |
No
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
Product Description | Availability | ||
---|---|---|---|
HYDRAULISK PRESSUTRUSTNING, 6-KANTSPRESSNING UTAN PRESSBACKAR |
No
|
|
|
- Total: 1
Technical Properties
- Total: 1
Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Compression force | Suitable for | Construction/operation | Compression shape | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|
HYDRAULISK PRESSUTRUSTNING, 6-KANTSPRESSNING UTAN PRESSBACKAR | No | No | 1 . | Yes | 200 kN | Cable lugs and connectors | Electrical | Hexagon |
No
|
|
|
- Total: 1
Other information
- Total: 1
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|---|
HYDRAULISK PRESSUTRUSTNING, 6-KANTSPRESSNING UTAN PRESSBACKAR | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Tabletop Machines | HYDRAULISK PRESSUTRUSTNING SKV2024TOBIAS4 | NTHCHX400 |
No
|
|
|
- Total: 1
