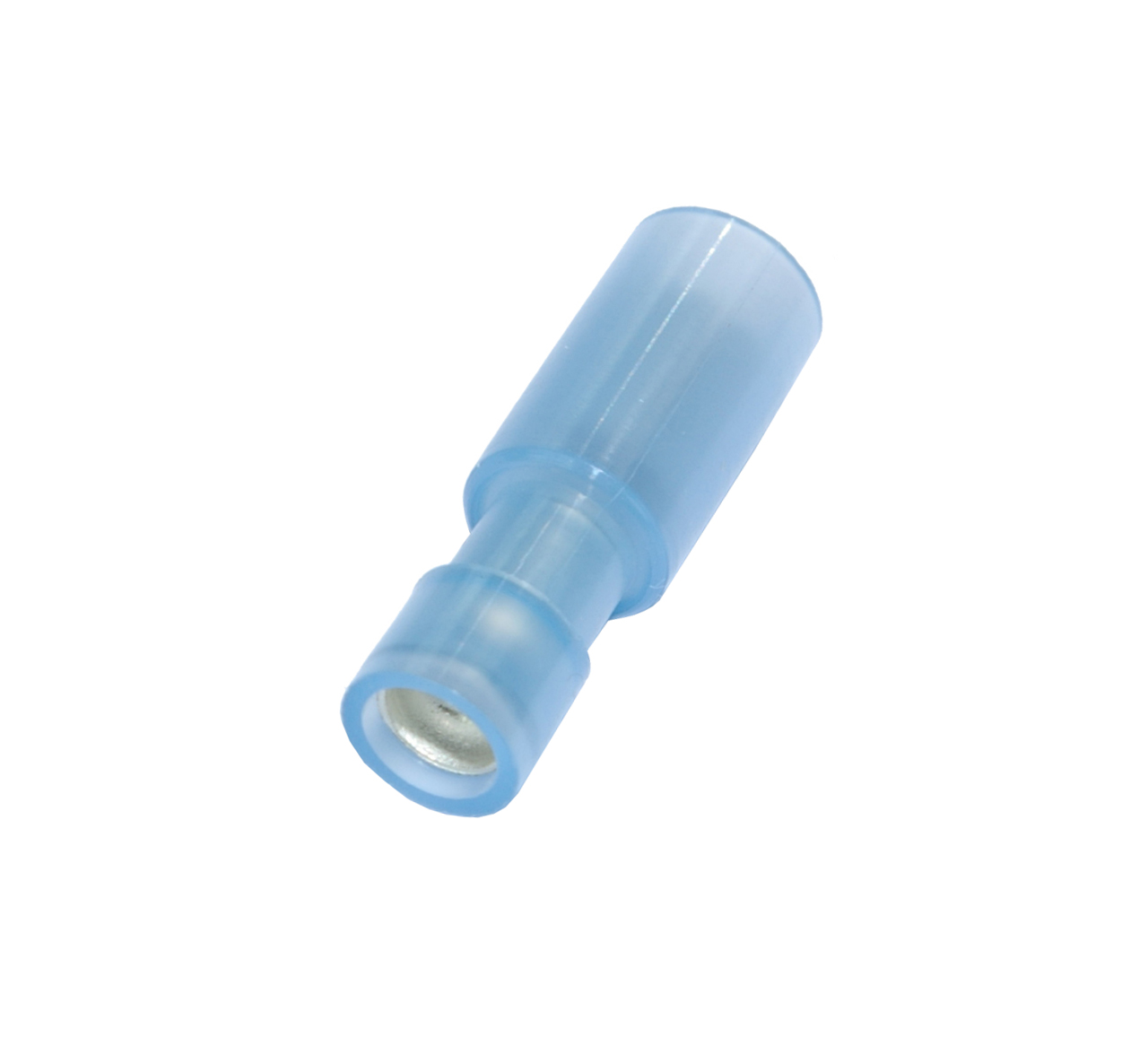

Bullet female terminals N PLD-series
Long copper sleeve
Easy Entry
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10 A, 15 A, 24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Red, Blue, Yellow
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- Packaging:
- Loose piece
- Inflammability class of insulation material according to with UL94:
- V2
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
CE Declaration of Conformity_N PLD-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 4
| Product Description | ID | L | N | W | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE RED, 4mm | 3.6 mm | 24 mm | 10.3 mm | 4 mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Round 4 mm |
No
|
|
|
| INSULATED BULLET FEMALE BLUE, 4mm | 4.3 mm | 24 mm | 11 mm | 4 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Round 4 mm |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm | 4.3 mm | 24 mm | 11 mm | 5 mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Round 5 mm |
Yes
|
|
|
| INSULATED BULLET FEMALE YELLOW, 5mm | 5.7 mm | 27 mm | 13 mm | 5 mm | 100 . | pcs | 2.63-6.64 mm² | 12-10 . | Round 5 mm |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Approved according to CE | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE RED, 4mm |
|
|
|
No
|
|
|
| INSULATED BULLET FEMALE BLUE, 4mm |
|
|
|
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm |
|
|
|
Yes
|
|
|
| INSULATED BULLET FEMALE YELLOW, 5mm |
|
|
|
Yes
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Packaging | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE RED, 4mm | Yes | Yes | Bushing | 10 A | Fully isolated | Red | No | No | Polyamide (PA) | According to UL94V2 | -40-105 °C | Brass | 300V | Yes | Loose piece |
|
No
|
|
|
| INSULATED BULLET FEMALE BLUE, 4mm | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyamide (PA) | According to UL94V2 | -40-105 °C | Brass | 300V | Yes | Loose piece |
|
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyamide (PA) | According to UL94V2 | -40-105 °C | Brass | 300V | Yes | Loose piece |
|
Yes
|
|
|
| INSULATED BULLET FEMALE YELLOW, 5mm | Yes | Yes | Bushing | 24 A | Fully isolated | Yellow | No | No | Polyamide (PA) | According to UL94V2 | -40-105 °C | Brass | 300V | Yes | Loose piece |
|
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE RED, 4mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - Polyamide | N1504HOPLD |
No
|
|
|
| INSULATED BULLET FEMALE BLUE, 4mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - Polyamide | N2504HOPLD |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - Polyamide | N2505HOPLD |
Yes
|
|
|
| INSULATED BULLET FEMALE YELLOW, 5mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - Polyamide | N4605HOPLD |
Yes
|
|
|
- Total: 4
