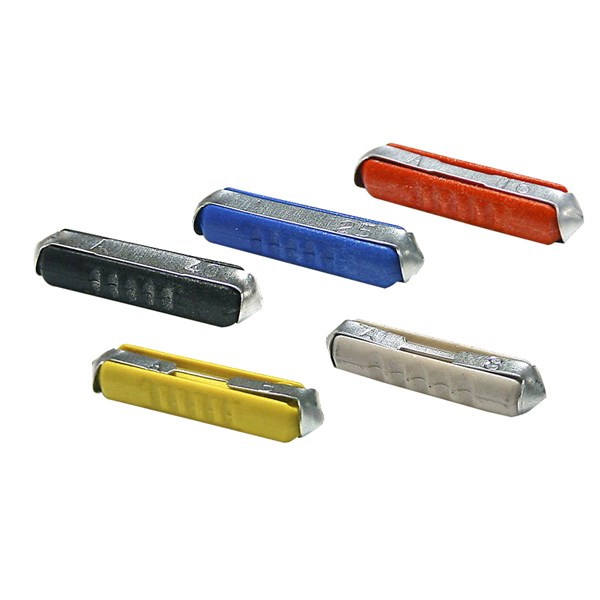

Bakelitsäkring
GBB-seriesFuses in bakelite meets the measurement requirementsaccording to DIN 72581-1.Maximum voltage: 32 V DCCurrent rating: 5-40 ASize (W x D x H): 24.7 x 5.8 x 5.1 mm
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
Technical properties
- Voltage type:
- DC
- Connection type:
- Base
- Release characteristic:
- Medium time-lag
- Rated current:
- 15 A, 16 A, 25 A, 40 A, 5 A, 8 A
- Rated voltage:
- 32 V, 32 V, Other
- Optical defect indication:
- No
- Utilization category:
- Other
- Model:
- Other
- Max. current (Imax):
- 15 A, 16 A, 25 A, 40 A, 5 A, 8 A
- Nominal current:
- 15 A, 16 A, 25 A, 40 A, 5 A, 8 A
- With striker:
- No
- Packaging:
- Loose piece
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 6
| Product Description | MOQ | Size | Unit | Rated voltage | Dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|
| BAKELITE FUSE, 5A YELLOW | 100 . | Other | pcs | 32 V | Other |
Yes
|
|
|
| BAKELITE FUSE, 8A WHITE | 100 . | Other | pcs | 32 V | Other |
Yes
|
|
|
| BAKELITE FUSE, 15A BEIGE | 100 . | Other | pcs | 32 V | Other |
Yes
|
|
|
| BAKELITE FUSE, 16A RED | 100 . | Other | pcs | 32 V | Other |
Yes
|
|
|
| BAKELITE FUSE, 25A BLUE | 100 . | Other | pcs | 32 V | Other |
Yes
|
|
|
| BAKELITE FUSE, 40A BLACK | 100 . | Other | pcs | 32 V | Other |
Yes
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
| Product Description | Voltage type | Availability | ||
|---|---|---|---|---|
| BAKELITE FUSE, 5A YELLOW | DC |
Yes
|
|
|
| BAKELITE FUSE, 8A WHITE | DC |
Yes
|
|
|
| BAKELITE FUSE, 15A BEIGE | DC |
Yes
|
|
|
| BAKELITE FUSE, 16A RED | DC |
Yes
|
|
|
| BAKELITE FUSE, 25A BLUE | DC |
Yes
|
|
|
| BAKELITE FUSE, 40A BLACK | DC |
Yes
|
|
|
- Total: 6
Technical Properties
- Total: 6
| Product Description | Voltage type | Connection type | Release characteristic | Rated current | Rated voltage | Optical defect indication | Utilization category | Model | Max. current (Imax) | Nominal current | Rated voltage | Rated voltage | With striker | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BAKELITE FUSE, 5A YELLOW | DC | Base | Medium time-lag | 5 A | 32 V | No | Other | Other | 5 A | 5 A | 32 V | Other | No | Loose piece |
Yes
|
|
|
| BAKELITE FUSE, 8A WHITE | DC | Base | Medium time-lag | 8 A | 32 V | No | Other | Other | 8 A | 8 A | 32 V | Other | No | Loose piece |
Yes
|
|
|
| BAKELITE FUSE, 15A BEIGE | DC | Base | Medium time-lag | 15 A | 32 V | No | Other | Other | 15 A | 15 A | 32 V | Other | No | Loose piece |
Yes
|
|
|
| BAKELITE FUSE, 16A RED | DC | Base | Medium time-lag | 16 A | 32 V | No | Other | Other | 16 A | 16 A | 32 V | Other | No | Loose piece |
Yes
|
|
|
| BAKELITE FUSE, 25A BLUE | DC | Base | Medium time-lag | 25 A | 32 V | No | Other | Other | 25 A | 25 A | 32 V | Other | No | Loose piece |
Yes
|
|
|
| BAKELITE FUSE, 40A BLACK | DC | Base | Medium time-lag | 40 A | 32 V | No | Other | Other | 40 A | 40 A | 32 V | Other | No | Loose piece |
Yes
|
|
|
- Total: 6
Other information
- Total: 6
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| BAKELITE FUSE, 5A YELLOW | EC002704 - Cylindrical fuse | 9.0 |
|
Bakelite & Ceramic fuses | GBB5 |
Yes
|
|
|
| BAKELITE FUSE, 8A WHITE | EC002704 - Cylindrical fuse | 9.0 |
|
Bakelite & Ceramic fuses | GBB8 |
Yes
|
|
|
| BAKELITE FUSE, 15A BEIGE | EC002704 - Cylindrical fuse | 9.0 |
|
Bakelite & Ceramic fuses | GBB15 |
Yes
|
|
|
| BAKELITE FUSE, 16A RED | EC002704 - Cylindrical fuse | 9.0 |
|
Bakelite & Ceramic fuses | GBB16 |
Yes
|
|
|
| BAKELITE FUSE, 25A BLUE | EC002704 - Cylindrical fuse | 9.0 |
|
Bakelite & Ceramic fuses | GBB25 |
Yes
|
|
|
| BAKELITE FUSE, 40A BLACK | EC002704 - Cylindrical fuse | 9.0 |
|
Bakelite & Ceramic fuses | GBB40 |
Yes
|
|
|
- Total: 6
