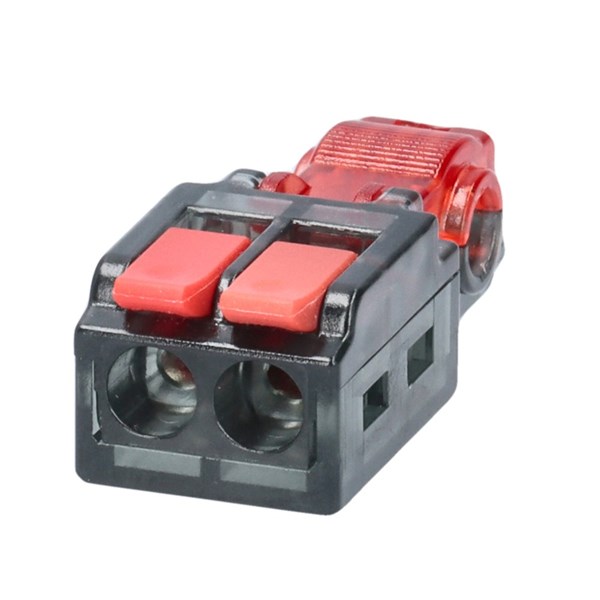

SCT-2R
BRANCH CLAMP IDC for CABLE 0.5-1.0mm2 2xBRANCH 0.5-2.5mm2(4mm2 Solid), AWG28-12
SCT-2R
- Availability:
-
Yes
- Total: 1
Related items
Splicing connectors for tap wires
Splicing connector for 1 or 2 tap wires from a run through cable. The run through cable is connected with Insulation Displacement Connection (IDC).
A quick connection can made on mid-span of a wire without cutting and stripping. A good solution when space is limited or if the cable is so short it could be difficult to connect to connector again after cut and stripped.
Tap wires are connected with lever.
Transparent cover for easy inspection of connector. No tool needed. Solid conductors can be connected when closed.
Stripping range: 10 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: Polycarbonate (PC)
Spring: Stainless steel
- Total: 1
Product Properties
Dimensions
| MOQ | 25 . |
|---|---|
| Unit | pcs |
Logistics
| Barcode | 733117614846 |
|---|---|
| Country of origin | CN |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 25 . |
| Stock code | SCT-2R |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to UKCA | Ja |
|---|
Other info
| ETIM-Class | EC000446 - Screwless terminal |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Self stripping tap connectors |
| Search Description | SKV2024ERIK2 |
| Alternative SKU | SCT-2R |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
