Avgreningshylsor & skarvar för enledare
Avgreningshylsor

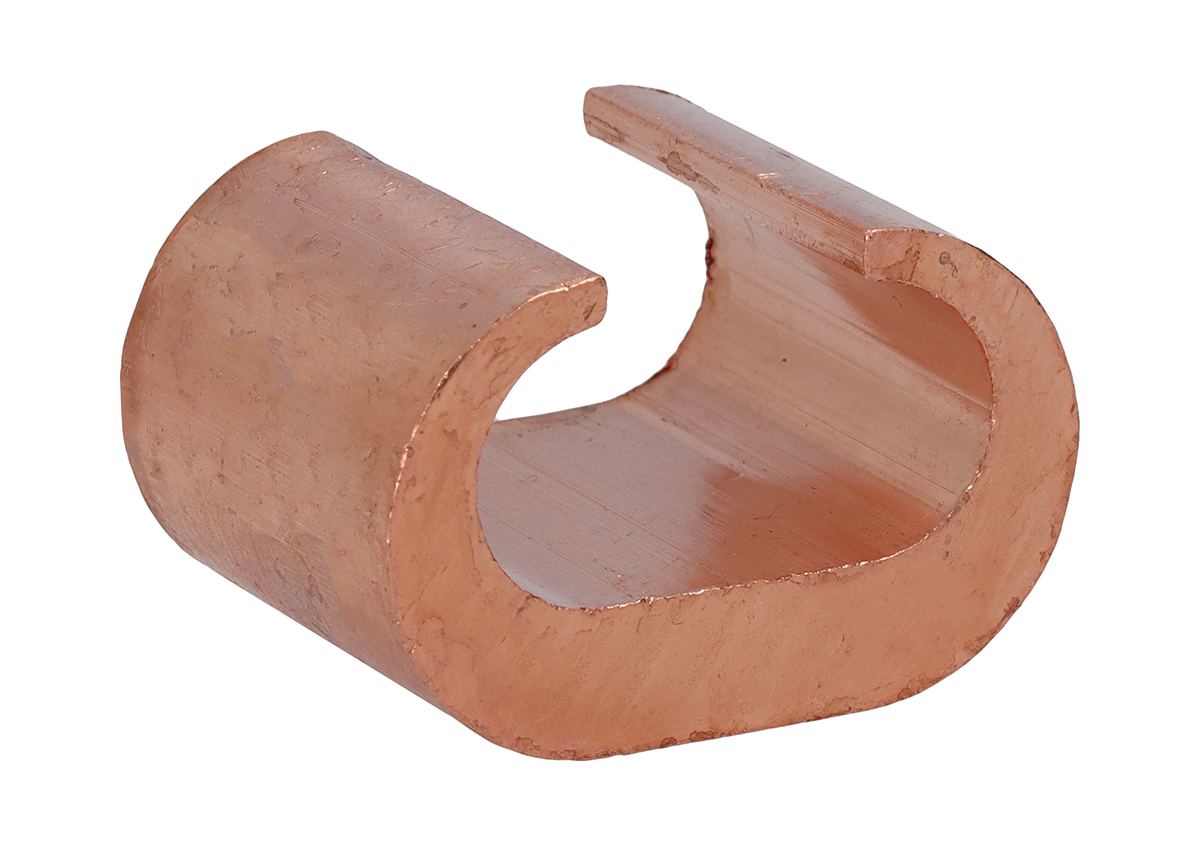

C-hylsor som passar till mångtrådiga och fåtrådiga ledare.
Material: 99.9% ren Cu
Technical properties
- Suitable for Class 1 conductor:
- Yes
- Suitable for Class 2 conductor:
- Yes
- Suitable for solid cores:
- Yes
- Max Temp:
- 150 °C
- Surface protection:
- Bare
- Material:
- Copper
Show more
Item List
- Total: 23
- Total: 23
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved

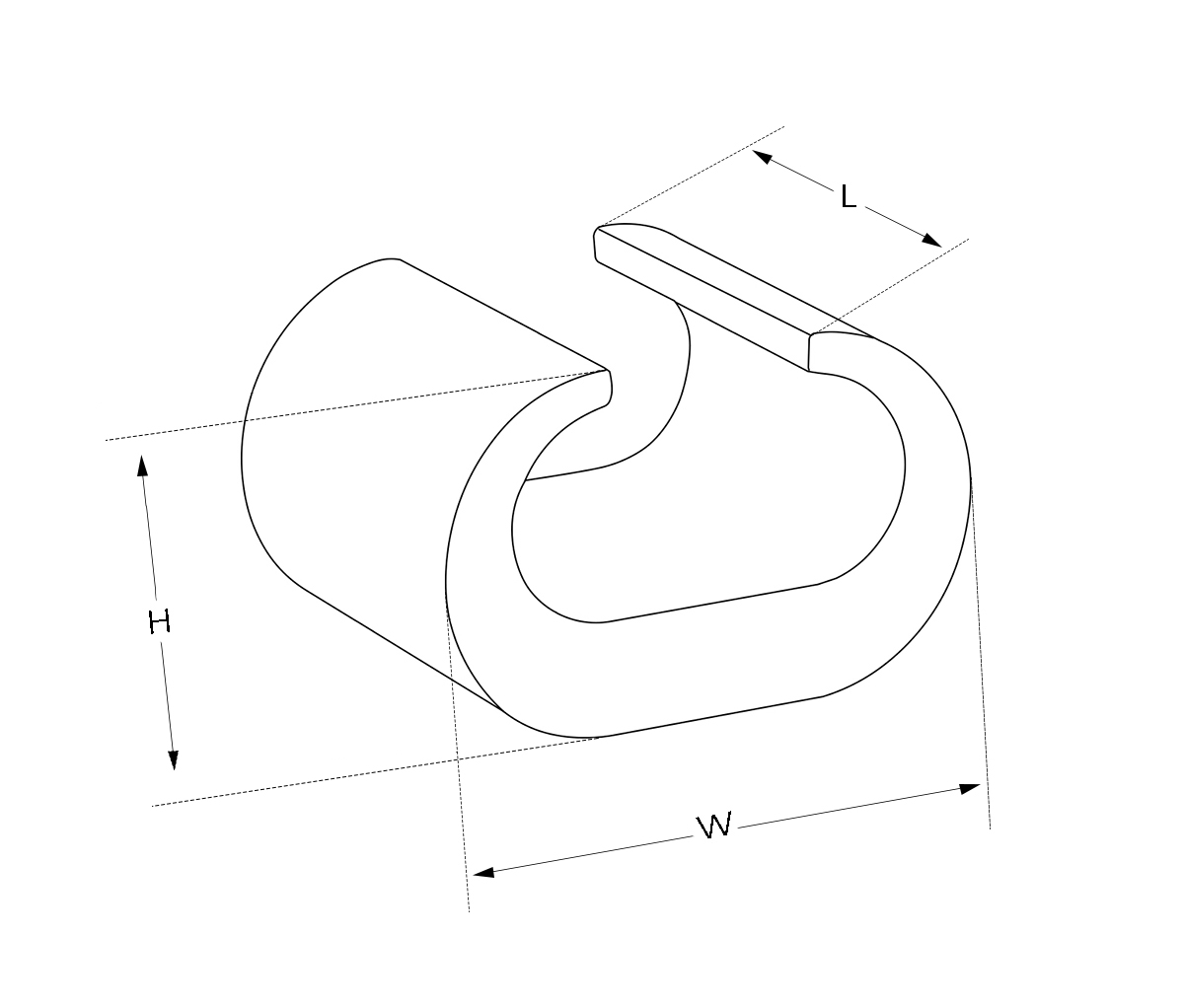

Dimensions
- Total: 23
| Product Description | H | L | W | MOQ | Unit | Cross section through-wiring core | Cross section branch core | Nominal cross section | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-SLEEVE CONNECTORS 10mm2 | 8 mm | 12 mm | 13 mm | 100 . | pcs | 10 mm² | 10 mm² | 10 mm² | 12 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 16mm2 | 10 mm | 15 mm | 16 mm | 100 . | pcs | 16 mm² | 16 mm² | 16 mm² | 15 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 25mm2 | 12 mm | 16 mm | 23 mm | 100 . | pcs | 25 mm² | 25 mm² | 25 mm² | 16 mm |
No
|
|
|
| C-SLEEVE CONNECTORS 35mm2 | 18 mm | 23 mm | 28 mm | 50 . | pcs | 35 mm² | 35 mm² | 35 mm² | 23 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 35/25mm2 | 18 mm | 23 mm | 28 mm | 50 . | pcs | 35 mm² | 25 mm² | 25-35 mm² | 23 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 50mm2 | 18 mm | 23 mm | 28 mm | 50 . | pcs | 50 mm² | 50 mm² | 50 mm² | 23 mm |
No
|
|
|
| C-SLEEVE CONNECTORS 50/25mm2 | 18 mm | 23 mm | 28 mm | 50 . | pcs | 50 mm² | 25 mm² | 25-50 mm² | 23 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 50/35mm2 | 18 mm | 23 mm | 28 mm | 50 . | pcs | 50 mm² | 35 mm² | 35-50 mm² | 23 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 70mm2 | 19 mm | 23 mm | 31 mm | 50 . | pcs | 70 mm² | 70 mm² | 70 mm² | 23 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 70/35mm2 | 19 mm | 23 mm | 31 mm | 50 . | pcs | 70 mm² | 35 mm² | 35-70 mm² | 23 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 70/50mm2 | 19 mm | 23 mm | 31 mm | 50 . | pcs | 70 mm² | 50 mm² | 50-70 mm² | 23 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 95mm2 | 22 mm | 25 mm | 35 mm | 50 . | pcs | 95 mm² | 95 mm² | 95 mm² | 25 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 95/35mm2 | 22 mm | 25 mm | 35 mm | 50 . | pcs | 95 mm² | 35 mm² | 95-35 mm² | 25 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 95/50mm2 | 22 mm | 25 mm | 35 mm | 50 . | pcs | 95 mm² | 50 mm² | 95-50 mm² | 25 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 95/70mm2 | 22 mm | 25 mm | 35 mm | 50 . | pcs | 95 mm² | 70 mm² | 70-95 mm² | 25 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 120mm2 | 26 mm | 30 mm | 41 mm | 25 . | pcs | 120 mm² | 120 mm² | 120 mm² | 30 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 120/35mm2 | 26 mm | 30 mm | 41 mm | 25 . | pcs | 120 mm² | 35 mm² | 35-120 mm² | 30 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 120/50mm2 | 26 mm | 30 mm | 41 mm | 25 . | pcs | 120 mm² | 50 mm² | 50-120 mm² | 30 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 120/70mm2 | 26 mm | 30 mm | 41 mm | 25 . | pcs | 120 mm² | 70 mm² | 70-120 mm² | 30 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 120/95mm2 | 26 mm | 30 mm | 41 mm | 25 . | pcs | 120 mm² | 95 mm² | 95-120 mm² | 30 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 150mm2 | 30 mm | 35 mm | 53 mm | 25 . | pcs | 150 mm² | 150 mm² | 150 mm² | 35 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 150/50mm2 | 30 mm | 35 mm | 53 mm | 10 . | pcs | 150 mm² | 50 mm² | 50-150 mm² | 35 mm |
Yes
|
|
|
| C-SLEEVE CONNECTORS 150/95mm2 | 30 mm | 35 mm | 53 mm | 10 . | pcs | 150 mm² | 95 mm² | 95-150 mm² | 35 mm |
Yes
|
|
|
- Total: 23
Similar Options
Approvals
- Total: 23
| Product Description | Approved according to CE | Availability | ||
|---|---|---|---|---|
| C-SLEEVE CONNECTORS 10mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 16mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 25mm2 |
|
No
|
|
|
| C-SLEEVE CONNECTORS 35mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 35/25mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 50mm2 |
|
No
|
|
|
| C-SLEEVE CONNECTORS 50/25mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 50/35mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 70mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 70/35mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 70/50mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 95mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 95/35mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 95/50mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 95/70mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 120mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 120/35mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 120/50mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 120/70mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 120/95mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 150mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 150/50mm2 |
|
Yes
|
|
|
| C-SLEEVE CONNECTORS 150/95mm2 |
|
Yes
|
|
|
- Total: 23
Technical Properties
- Total: 23
| Product Description | Suitable for Class 1 conductor | Suitable for Class 2 conductor | Suitable for solid cores | Max Temp | Surface protection | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| C-SLEEVE CONNECTORS 10mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 16mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 25mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
No
|
|
|
| C-SLEEVE CONNECTORS 35mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 35/25mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 50mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
No
|
|
|
| C-SLEEVE CONNECTORS 50/25mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 50/35mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 70mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 70/35mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 70/50mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 95mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 95/35mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 95/50mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 95/70mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 120mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 120/35mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 120/50mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 120/70mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 120/95mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 150mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 150/50mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
| C-SLEEVE CONNECTORS 150/95mm2 | Yes | Yes | Yes | 150 °C | Bare | Copper |
Yes
|
|
|
- Total: 23
Other information
- Total: 23
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| C-SLEEVE CONNECTORS 10mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C4 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 16mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C5 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 25mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C6 |
No
|
|
|
|
| C-SLEEVE CONNECTORS 35mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C8 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 35/25mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C8-6 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 50mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | AVGRENINGS / C-HYLSA | C9 |
No
|
|
|
| C-SLEEVE CONNECTORS 50/25mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C9-6 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 50/35mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C9-8 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 70mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C11 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 70/35mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C11-8 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 70/50mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C11-9 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 95mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C13 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 95/35mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C13-8 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 95/50mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C13-9 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 95/70mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C13-11 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 120mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C15 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 120/35mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C15-8 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 120/50mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C15-9 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 120/70mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C15-11 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 120/95mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C15-13 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 150mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C16 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 150/50mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C16-9 |
Yes
|
|
|
|
| C-SLEEVE CONNECTORS 150/95mm2 | EC002290 - C-clamp for round wire | DYNAMIC |
|
Branch connectors | C16-13 |
Yes
|
|
|
- Total: 23
