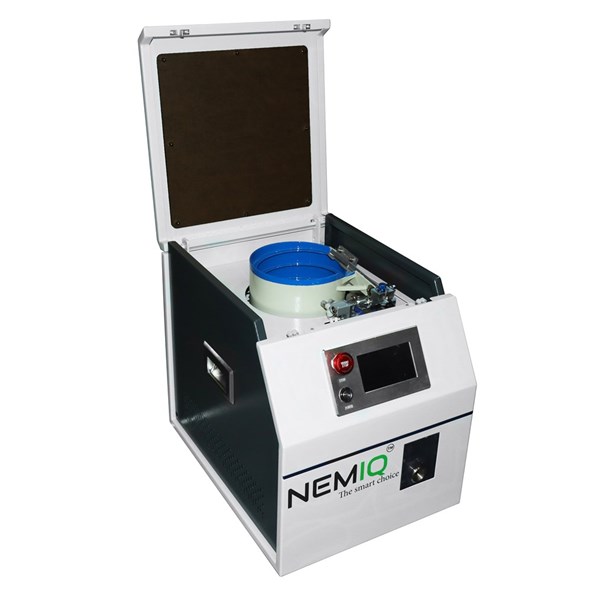

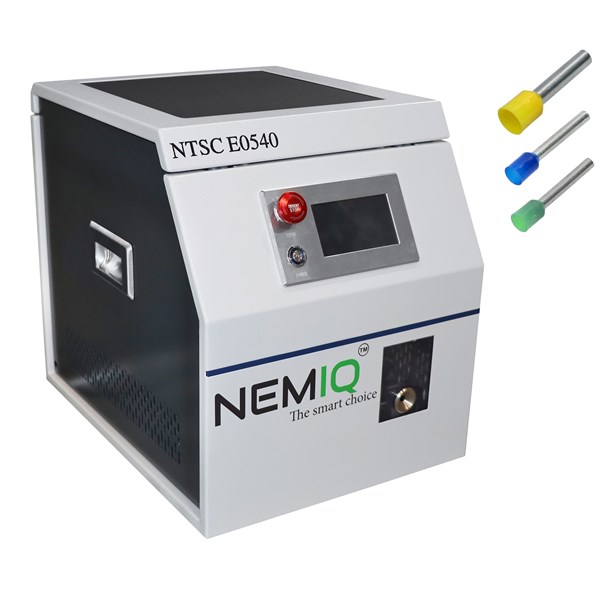

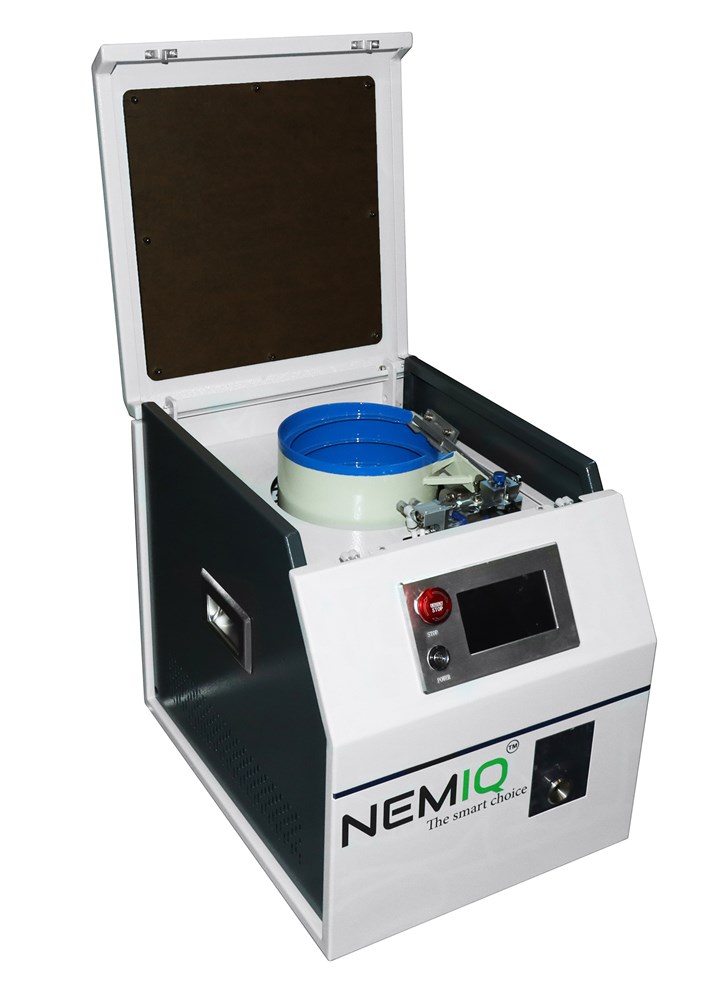

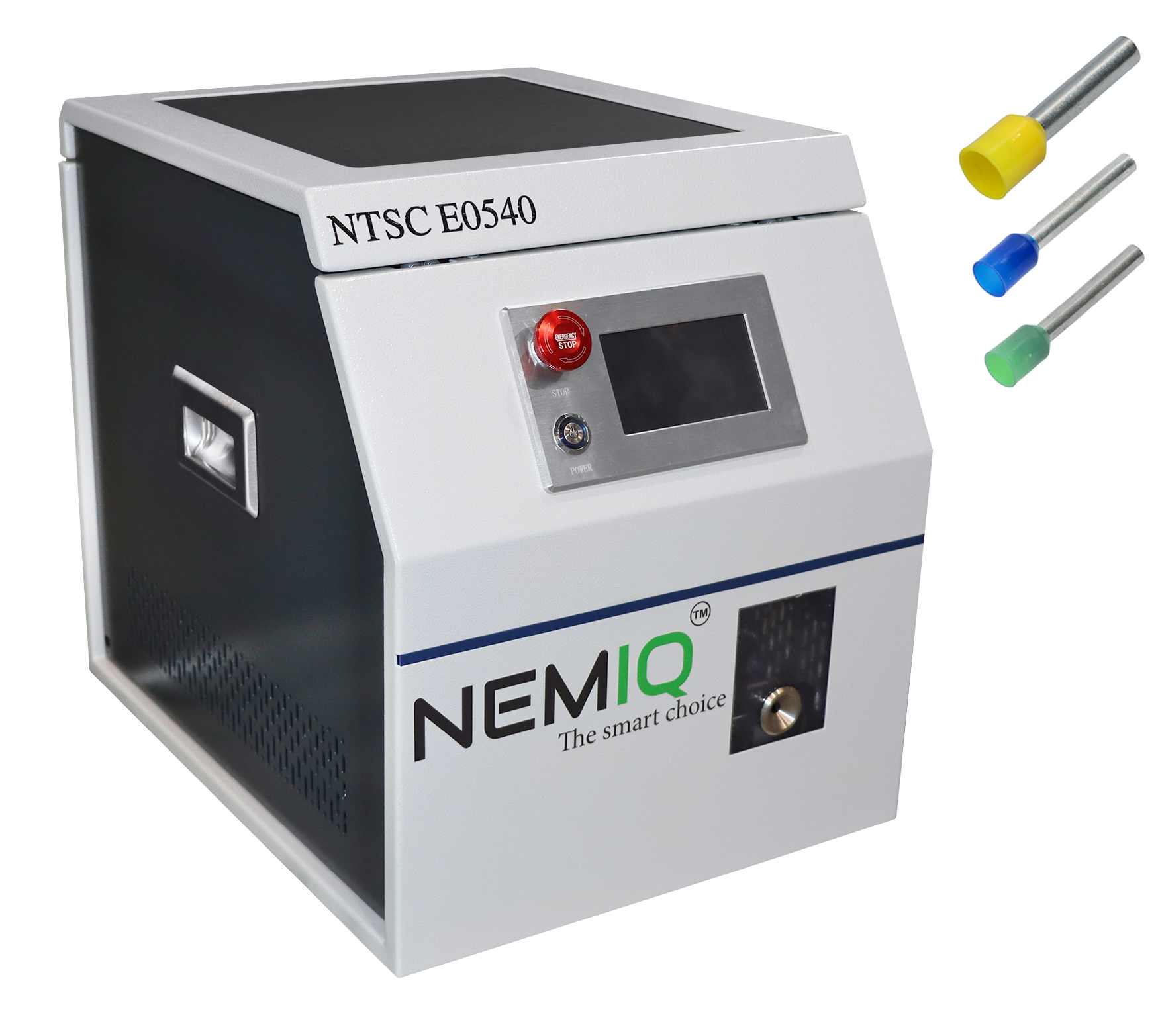

Automatic strip and crimp machine for ferrules
Automatic strip and crimp machine for insulated end sleeves 0.5-4 mm².
Stripping and crimping are carried out in a single step, which enables efficient and time-saving processing.
Technical data
Operation mode: Automatic trigger operation and manual operation
Twisting function: Yes
Wire size: 0.5-4 mm²
Stripping lenght: 3-17 mm
Max tube leght: 12 mm
Crimp shape: Quadrilateral crimp
Production capacity: 2.8s/wire
Air Supply: 0.6-0.8Mpa
Power source: 220V 50HZ
Weight 40 KG
Dimensions WxLxH: 350 x 450 x 400 mm
Technical properties
- Strip length adjustable:
- Yes
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2.8 s
- Suitable for:
- Cable end sleeves
- Adjustable conductor cross section:
- 0.5-4 mm²
- Function:
- Skin and crimp
- Type of drive:
- Electrical
- Strip length:
- 3-17 mm
- Construction/operation:
- Pneumatic
- Compression shape:
- Square compression
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
NTSC E0540 Manual
Dimensions
- Total: 1
| Product Description | Depth | Width | Height | Cross section | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SKAL- & PRESSMASKIN , ISOLERADE ÄNDHYLSOR 0.5-4mm2 | 450 mm | 350 mm | 400 mm | 0.5-4 mm² | 1 . | pcs |
No
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| SKAL- & PRESSMASKIN , ISOLERADE ÄNDHYLSOR 0.5-4mm2 |
No
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Strip length adjustable | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Adjustable conductor cross section | Function | Type of drive | Strip length | Construction/operation | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKAL- & PRESSMASKIN , ISOLERADE ÄNDHYLSOR 0.5-4mm2 | Yes | No | No | 1 . | Yes | 2.8 s | Cable end sleeves | 0.5-4 mm² | Skin and crimp | Electrical | 3-17 mm | Pneumatic | Square compression |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SKAL- & PRESSMASKIN , ISOLERADE ÄNDHYLSOR 0.5-4mm2 | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection, EC002778 - Stripping and crimping machine | 9.0 |
|
Tabletop Machines | SKH2023TOBIAS3 | NTSCE0540 |
No
|
|
|
- Total: 1
