ED905-PP1

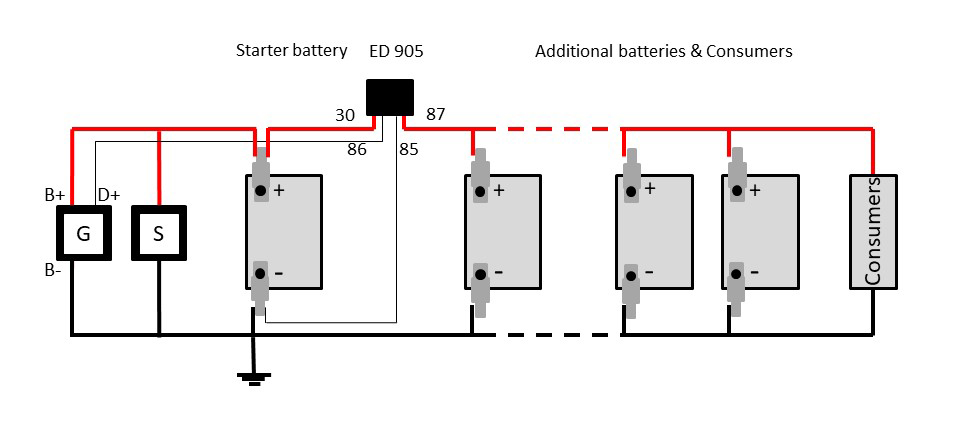

SEPARATING RELAY, SINGLE BREAKING, ON/OFF 2xM6 + 2x6.3mm, 12V, 100A, ELECTROMAGNETIC
ED905-PP1
- Availability:
-
Yes
- Total: 1
Product Description | ||||
---|---|---|---|---|
Elektromagnetiska - Enkel, On/Off, 4-pol, fast hållare - Butiksförpackad |
|
- Total: 1
- Total: 1
Related items
Elektromagnetiska - Enkel, On/Off, 4-pol, fast hållare - Butiksförpackad
Elektromagnetiskt Kraftrelä On/Off
4-pol (2x 6.3 x 0.8 mm flatstift & 2x M6 bult) Normally open contacts
Plasthus i storlek (L x B x H): 46 x 46 x 45mm
Hållare med skruvhål: 6mm
- Total: 1
Product Properties
Complete with socket | No |
---|---|
Operating voltage DC | 12 V |
Type of switch contact | Single contact |
Voltage type (operating voltage) | DC |
Voltage type for actuating | DC |
With LED indication | No |
Nominal current | 100 A |
Type of electric connection | Flat plug-in connection |
Number of contacts as normally closed contact | 0 . |
Number of contacts as normally open contact | 1 . |
Number of contacts as change-over contact | 0 . |
Rated control supply voltage DC | 12 V |
With detachable clamps | No |
Dimensions
Depth | 46 mm |
---|---|
Width | 46 mm |
Height | 45 mm |
MOQ | 1 . |
Unit | pck |
Logistics
Barcode | 733117637164 |
---|---|
Country of origin | CN |
Item status | Non Stock Item, can be on stock but is not a regular stock item. |
MOQ | 1 . |
Stock code | ED905-PP1 |
Taric code | 85369010 |
Unit | pck |
Approvals
Other info
ETIM-Class | EC001437 - Switching relay |
---|---|
ETIM-Release | 9.0 |
Trademark | NECORE |
Product Group | Power Relays |
Search Description | SKILJERELÄ, ENKELBRYTANDE, ON/OFF |
Alternative SKU | ED905-PP1 |
Compliance
Conflict Minerals | Yes, see report under tab "Documents" |
---|---|
REACH | No SVHC (Latest. 27 June 2024) |
RoHS | RoHS 3 (2015/863) |
SCIP | Not Applicable |
