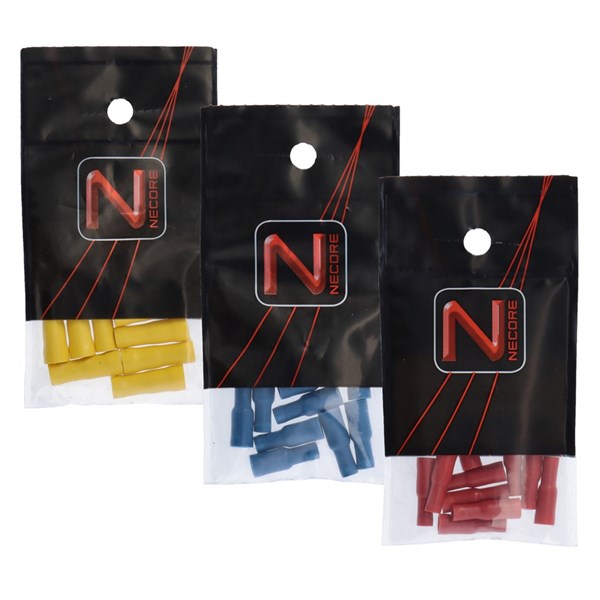

Rundstiftshylsa i Konsumentförpackning (PVC)
Ett stort urval av kabelskor(isolerade, oisolerade, rör, plåt & limkabelskor) förpackade i påse(Pin-Pac) med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10 A, 15 A, 24 A
- Insulation:
- Fully isolated, Partially isolated
- Colour insulation:
- Red, Blue, Yellow, Grey
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA), Polyvinyl chloride (PVC)
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Packaging:
- Bag
- Inflammability class of insulation material according to with UL94:
- V2
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_A-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 7
| Product Description | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE CLEAR, 2mm, 0.5-0.75mm2, 10-PACK | 10 . | pck | 0.5-0.75 mm² | Round 2 mm |
No
|
|
|
|
| INSULATED BULLET FEMALE RED, 4mm, 10-PACK | 10 . | pck | 0.5-1.65 mm² | 22-16 . | Round 4 mm |
Yes
|
|
|
| INSULATED BULLET MALE RED, 4mm, 0.5-1.5mm2, 10-PACK | 10 . | pck | 0.5-1.65 mm² | 22-16 . | Round 4 mm |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 4mm, 10-PACK | 10 . | pck | 1.04-2.63 mm² | 16-14 . | Round 4 mm |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm, 10-PACK | 10 . | pck | 1.04-2.63 mm² | 16-14 . | Round 5 mm |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm, 1.0-2.5mm2 | 10 . | pck | 1.04-2.63 mm² | 16-14 . | Round 5 mm |
Yes
|
|
|
| INSULATED BULLET FEMALE YELLOW, 5mm, 10-PACK | 10 . | pck | 2.63-6.64 mm² | 12-10 . | Round 5 mm |
No
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
| Product Description | Approved according to CE | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|
| INSULATED BULLET FEMALE CLEAR, 2mm, 0.5-0.75mm2, 10-PACK |
|
|
No
|
|
|
| INSULATED BULLET FEMALE RED, 4mm, 10-PACK |
|
Yes
|
|
|
|
| INSULATED BULLET MALE RED, 4mm, 0.5-1.5mm2, 10-PACK |
|
Yes
|
|
|
|
| INSULATED BULLET FEMALE BLUE, 4mm, 10-PACK |
|
Yes
|
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm, 10-PACK |
|
Yes
|
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm, 1.0-2.5mm2 |
|
Yes
|
|
|
|
| INSULATED BULLET FEMALE YELLOW, 5mm, 10-PACK |
|
No
|
|
|
- Total: 7
Technical Properties
- Total: 7
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Voltage max | Packaging | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE CLEAR, 2mm, 0.5-0.75mm2, 10-PACK | Yes | Yes | Bushing | 10 A | Fully isolated | Grey | No | No | Polyamide (PA) | -40-105 °C | Brass | 300V | Bag |
|
No
|
|
|
| INSULATED BULLET FEMALE RED, 4mm, 10-PACK | Yes | Yes | Bushing | 10 A | Fully isolated | Red | No | No | Polyvinyl chloride (PVC) | -40-75 °C | Brass | 300V | Bag |
Yes
|
|
|
|
| INSULATED BULLET MALE RED, 4mm, 0.5-1.5mm2, 10-PACK | Yes | Yes | Bushing | 10 A | Partially isolated | Red | No | No | Polyamide (PA) | -40-105 °C | Brass | 300V | Bag |
Yes
|
|
|
|
| INSULATED BULLET FEMALE BLUE, 4mm, 10-PACK | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyvinyl chloride (PVC) | -40-75 °C | Brass | 300V | Bag |
Yes
|
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm, 10-PACK | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyvinyl chloride (PVC) | -40-75 °C | Brass | 300V | Bag |
Yes
|
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm, 1.0-2.5mm2 | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyamide (PA) | -40-105 °C | Brass | 300V | Bag |
Yes
|
|
|
|
| INSULATED BULLET FEMALE YELLOW, 5mm, 10-PACK | Yes | Yes | Bushing | 24 A | Fully isolated | Yellow | No | No | Polyvinyl chloride (PVC) | -40-75 °C | Brass | 300V | Bag |
No
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED BULLET FEMALE CLEAR, 2mm, 0.5-0.75mm2, 10-PACK | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - Pin-pac bag | N0802HO-PP10 |
No
|
|
|
| INSULATED BULLET FEMALE RED, 4mm, 10-PACK | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - Pin-pac bag | A1504HOPL-PP10 |
Yes
|
|
|
| INSULATED BULLET MALE RED, 4mm, 0.5-1.5mm2, 10-PACK | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - Pin-pac bag | N1504HOPLD-PP10 |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 4mm, 10-PACK | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - Pin-pac bag | A2504HOPL-PP10 |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm, 10-PACK | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - Pin-pac bag | A2505HOPL-PP10 |
Yes
|
|
|
| INSULATED BULLET FEMALE BLUE, 5mm, 1.0-2.5mm2 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - Pin-pac bag | N2505HOPLD-PP10 |
Yes
|
|
|
| INSULATED BULLET FEMALE YELLOW, 5mm, 10-PACK | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Bullet Female - Pin-pac bag | A4605HOPL-PP10 |
No
|
|
|
- Total: 7
