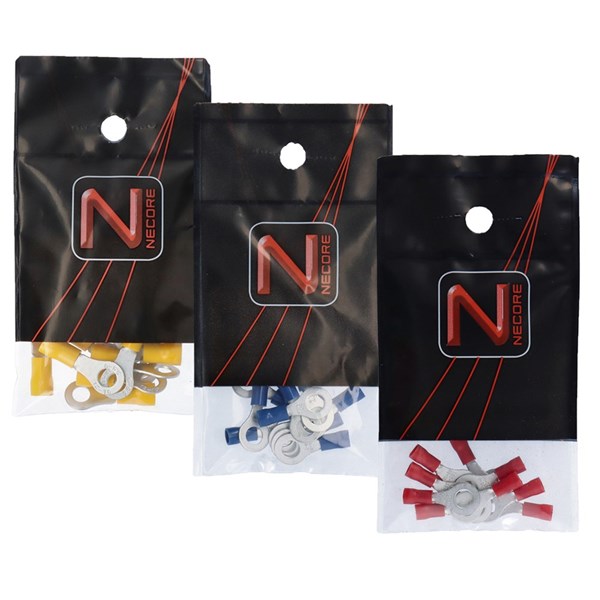

Ringkabelskor i Konsumentförpackning (PA)
Ett stort urval av kabelskor(isolerade, oisolerade, rör, plåt & limkabelskor) förpackade i påse(Pin-Pac) med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 27 A, 48 A, 19 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short, Long
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
Show more
Item List
- Total: 9
- Total: 9
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_N PL-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 9
| Product Description | HS | ID | L | N | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M4 | 10 . | pck | 4 . | 0.5-1.65 mm² |
Yes
|
|
|
|||||
| INSULATED RING TERMINAL RED, M6, 10-PACK | 6.4 mm | 4.1 mm | 27.5 mm | 10.5 mm | 11.6 mm | 10 . | pck | 6 . | 0.5-1.65 mm² |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M5, 10-PACK | 5.3 mm | 4.9 mm | 23 mm | 11 mm | 9.5 mm | 10 . | pck | 5 . | 1.04-2.63 mm² |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M6, 1.0-2.5mm2, 10-PACK | 10 . | pck | 6 . | 1.04-2.63 mm² |
Yes
|
|
|
|||||
| INSULATED RING TERMINAL BLUE, M8, 10-PACK | 10 . | pck | 8 . | 1.04-2.63 mm² |
Yes
|
|
|
|||||
| INSULATED RING TERMINAL YELLOW, M10, 10-PACK | 10 . | pck | 10 . | 2.63-6.64 mm² |
Yes
|
|
|
|||||
| INSULATED RING TERMINAL YELLOW, M5, 4.0-6.0mm2, 10-PACK | 10 . | pck | 5 . | 2.63-6.64 mm² |
Yes
|
|
|
|||||
| INSULATED RING TERMINAL YELLOW, M6, 4.0-6.0mm2, 10-PACK | 10 . | pck | 6 . | 2.63-6.64 mm² |
Yes
|
|
|
|||||
| INSULATED RING TERMINAL YELLOW, M8, 4.0-6.0mm2, 10-PACK | 10 . | pck | 8 . | 2.63-6.64 mm² |
Yes
|
|
|
- Total: 9
Similar Options
Approvals
- Total: 9
| Product Description | Approved according to CE | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M4 |
|
|
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6, 10-PACK |
|
|
No
|
|
|
| INSULATED RING TERMINAL BLUE, M5, 10-PACK |
|
|
No
|
|
|
| INSULATED RING TERMINAL BLUE, M6, 1.0-2.5mm2, 10-PACK |
|
|
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8, 10-PACK |
|
|
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M10, 10-PACK |
|
|
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5, 4.0-6.0mm2, 10-PACK |
|
|
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6, 4.0-6.0mm2, 10-PACK |
|
|
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M8, 4.0-6.0mm2, 10-PACK |
|
|
Yes
|
|
|
- Total: 9
Technical Properties
- Total: 9
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M4 | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | Copper | 600V |
Yes
|
|
|
||
| INSULATED RING TERMINAL RED, M6, 10-PACK | Yes | Yes | No | 19 A | Ring shape | No | Partially isolated | Red | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | Copper | 600V |
No
|
|
|
||
| INSULATED RING TERMINAL BLUE, M5, 10-PACK | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | Copper | 600V |
No
|
|
|
||
| INSULATED RING TERMINAL BLUE, M6, 1.0-2.5mm2, 10-PACK | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M8, 10-PACK | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | Copper | 600V |
Yes
|
|
|
||
| INSULATED RING TERMINAL YELLOW, M10, 10-PACK | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Long | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | Copper | 600V |
Yes
|
|
|
||
| INSULATED RING TERMINAL YELLOW, M5, 4.0-6.0mm2, 10-PACK | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6, 4.0-6.0mm2, 10-PACK | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M8, 4.0-6.0mm2, 10-PACK | Yes | Yes | No | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | -40-105 °C | Copper | 600V | Yes |
Yes
|
|
|
- Total: 9
Other information
- Total: 9
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Pin-pac bags | ENR2023V | N1543RPL-PP10 |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6, 10-PACK | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Pin-pac bags | N1565RPL-PP10 |
No
|
|
|
|
| INSULATED RING TERMINAL BLUE, M5, 10-PACK | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Pin-pac bags | ENR2023V | N2553RPL-PP10 |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M6, 1.0-2.5mm2, 10-PACK | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Pin-pac bags | N2565RPL-PP10 |
Yes
|
|
|
|
| INSULATED RING TERMINAL BLUE, M8, 10-PACK | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Pin-pac bags | N2585RPL-PP10 |
Yes
|
|
|
|
| INSULATED RING TERMINAL YELLOW, M10, 10-PACK | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Pin-pac bags | N4610RPL-PP10 |
Yes
|
|
|
|
| INSULATED RING TERMINAL YELLOW, M5, 4.0-6.0mm2, 10-PACK | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Pin-pac bags | ENR2023V | N4653RPL-PP10 |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6, 4.0-6.0mm2, 10-PACK | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Pin-pac bags | N4665RPL-PP10 |
Yes
|
|
|
|
| INSULATED RING TERMINAL YELLOW, M8, 4.0-6.0mm2, 10-PACK | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Pin-pac bags | ISOLERAD RINGKABELSKO | N4685RPL-PP10 |
Yes
|
|
|
- Total: 9
