ED010-PP1

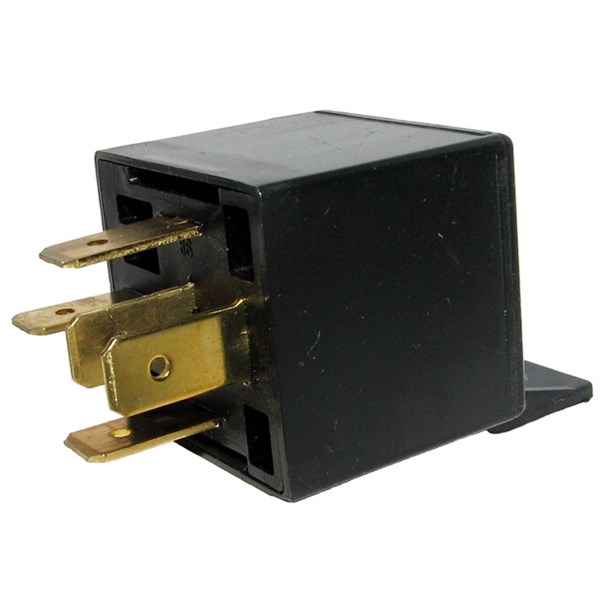

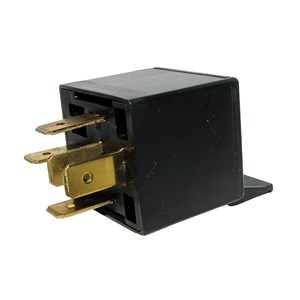

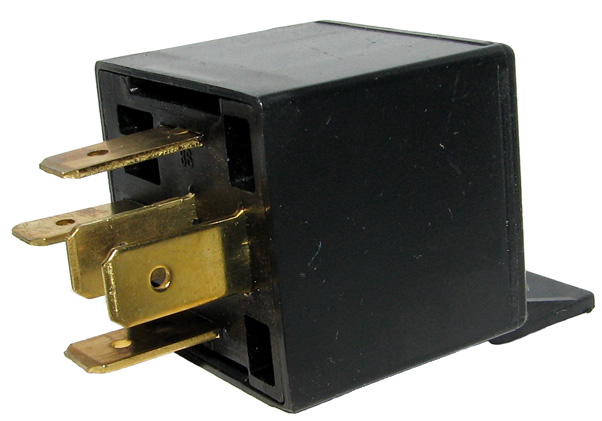

RELAY, SINGLE BREAKING, ON/OFF 5 PIN, 24V, 20A, ELECTROMAGNETIC
ED010-PP1
- Availability:
-
Yes
- Total: 1
Related items
Elektromagnetiska - Enkel, On/Off, 5 stift, fast hållare

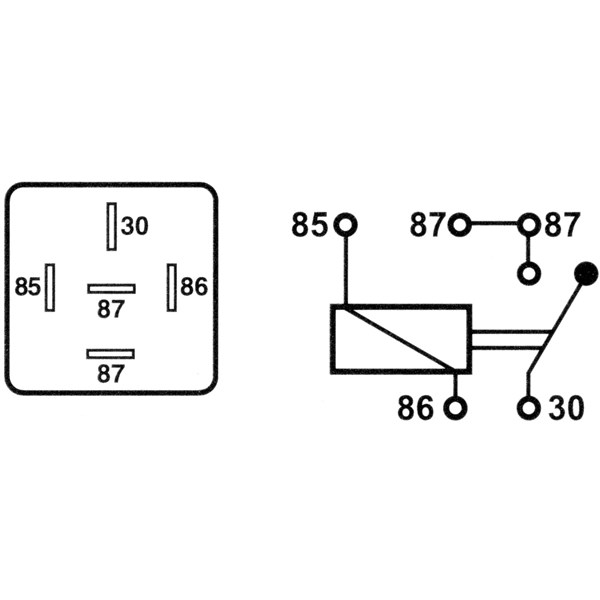

On/Off, 5-stifts (6.3 x 0.8 mm) relä. Normally open contacts.
Plasthus i storlek (L x B x H): 27 x 26 x 24 mm
Hållare med skruvhål: 5 mm
Artikelnummer med ändelse "-PP" = Butiksförpackad.
- Total: 1
Product Properties
| Complete with socket | No |
|---|---|
| Operating voltage DC | 24 V |
| Type of switch contact | Single contact |
| Voltage type (operating voltage) | DC |
| Voltage type for actuating | DC |
| With LED indication | No |
| Voltage type | DC |
| Nominal current | 20 A |
| Type of electric connection | Flat plug-in connection |
| Number of contacts as normally closed contact | 0 . |
| Number of contacts as normally open contact | 2 . |
| Number of contacts as change-over contact | 0 . |
| Nominal measuring voltage | 24 V |
| Nominal operating current | 20 A |
| Rated control supply voltage DC | 24 V |
| With detachable clamps | No |
| Number of phases | 1 . |
Dimensions
| Number of phases | 1 . |
|---|---|
| Depth | 27 mm |
| Width | 26 mm |
| Height | 24 mm |
| MOQ | 1 . |
| Unit | pck |
Logistics
| Barcode | 733117616997 |
|---|---|
| Country of origin | GB |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | ED010-PP1 |
| Taric code | 85364190 |
| Unit | pck |
Approvals
| Voltage type | DC |
|---|
Other info
| ETIM-Class | EC001437 - Switching relay |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Mini relays - Electromagnetic |
| Search Description | RELÄ, ENKELBRYTANDE, ON/OFF, ELEKTROMAGNETISK |
| Alternative SKU | ED010-PP1 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Contain no Iron or Steel |
| REACH | No SVHC (Latest. 27 June 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
