03421-PP2

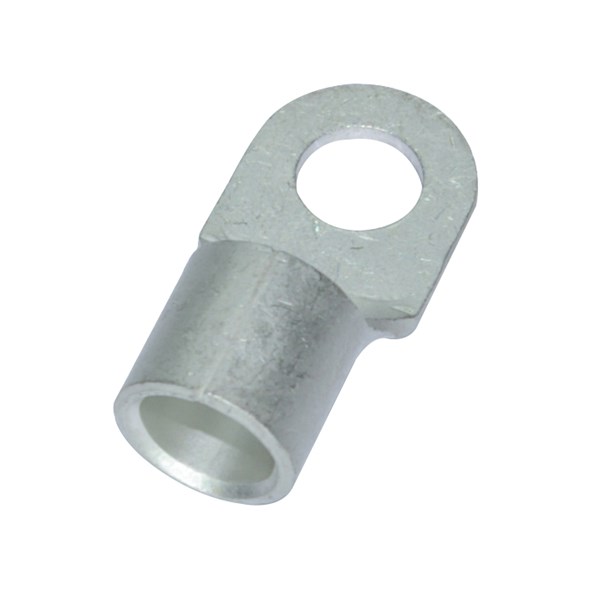

UNINSULATED RING TERMINAL, DIN 46234 16mm2, M6, 2-PACK
03421-PP2
- Availability:
-
Yes
- Total: 1
Related items
Ringkabelskor i Konsumentförpackning (Oisolerade)
Ett stort urval av kabelskor(isolerade, oisolerade, rör, plåt & limkabelskor) förpackade i påse(Pin-Pac) med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
- Total: 1
Product Properties
| Reel/roll packaging | No |
|---|---|
| Max. current (Imax) | 88 A |
| Flange shape | Ring shape |
| According to DIN | Yes |
| Insulation | None |
| Colour insulation | Other |
| Sleeve form | Short |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| Surface protection | Tinned |
| Operating temperature | -55-110 °C |
| Material | Copper |
| Neck type | Welded |
Dimensions
| MOQ | 1 . |
|---|---|
| Unit | pck |
| Bolt dimension (metric) | 6 . |
| Nominal cross section | 16 mm² |
Logistics
| Barcode | 733117611110 |
|---|---|
| Country of origin | JP |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | 03421-PP2 |
| Taric code | 85369010 |
| Unit | pck |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Uninsulated Ring Terminals - Pin-pac bags |
| Alternative SKU | 03421-PP2 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
