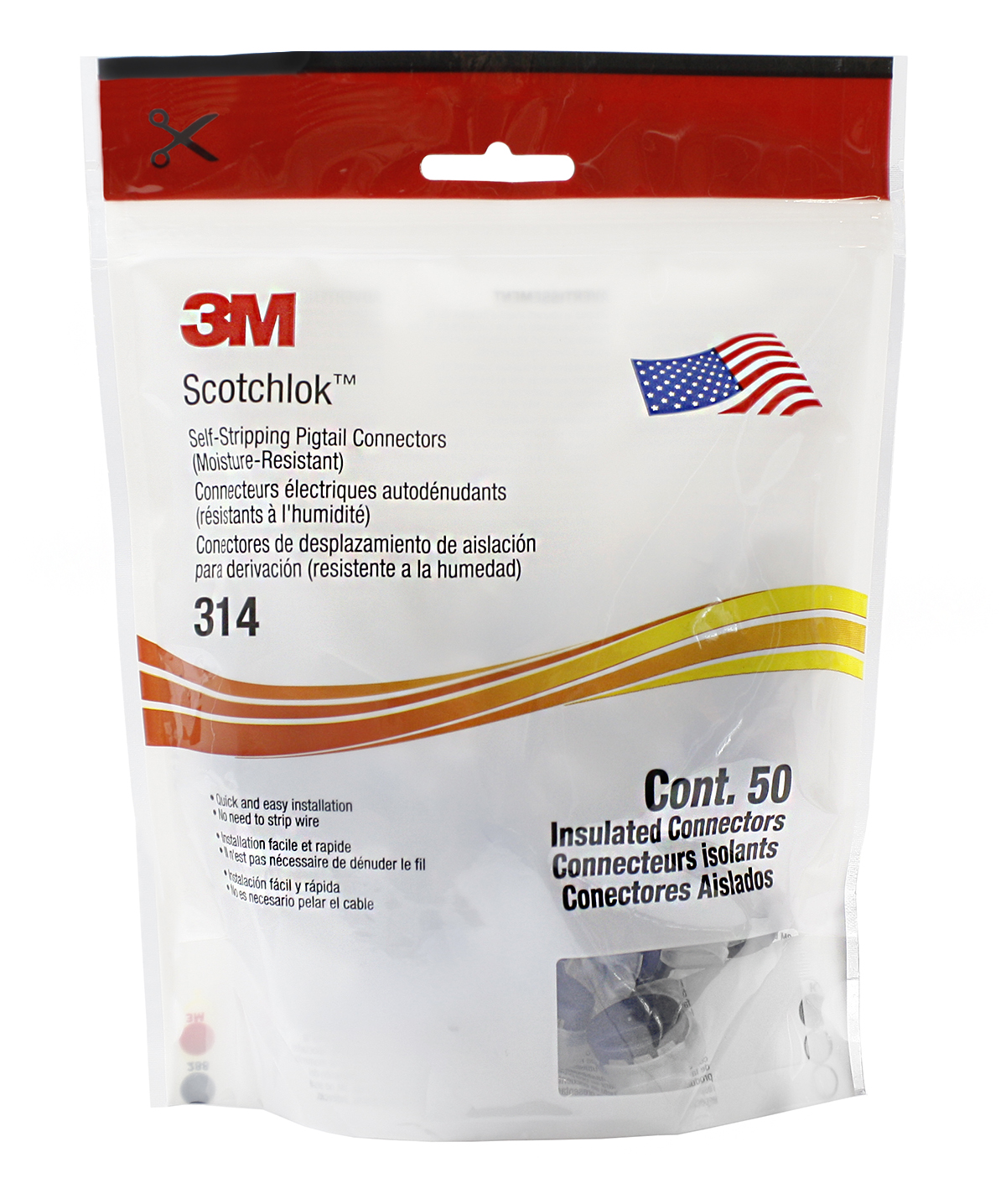

PIGTAIL CONNECTOR FOR 2 OR 3 WIRE ENDS, 0.5-1.5mm2 MOISTURE RESISTANT, SELF STRIPPING
314
- Availability:
-
Yes
- Total: 1
Related items
Self stripping pigtail wire splice connector
Insulation Displacement Connector (IDC) for conenction of 2 or 3 wires.
Simply press the sharp insert through the cable jacket and create a quick and secure termination.
Gel filled to prevent corrosion and promotes sealing.
Only to use with cupper cable.
Max voltage: 600V
- Total: 1
E0812663
Product Properties
| Model | Single-conductor connector |
|---|---|
| Colour insulation | Blue |
| Grease filling against corrosion | Yes |
| Max. number of cores | 3 . |
| Temperature | -40-105 °C |
| Interrupt free shifting | No |
| Material insulation | Polyamide (PA) |
Dimensions
| Core diameter | 0.8-1.4 mm |
|---|---|
| Max. outer diameter | 1.2-3.9 mm |
| MOQ | 50 . |
| Unit | pcs |
| Nominal cross section | 0.5-1.5 mm² |
Logistics
| Barcode | 054007092308 |
|---|---|
| Country of origin | US |
| E-no | E0812663 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 50 . |
| Stock code | 314 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| With approval according to UL | Yes |
|---|
Other info
| ETIM-Class | EC000306 - Low current connector |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | 3M |
| Product Group | IDC connector |
| Search Description | SKARVKLÄMMA/GRENKLÄMMA. 3-LEDARE, 0.5-1.5MM2 |
| Alternative SKU | 314 |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | Yes, see report under tab "Documents" |
| Iron and Steel Sanction | Contain no Iron or Steel |
| REACH | No SVHC (241 Subs. 27 June 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
