ED007

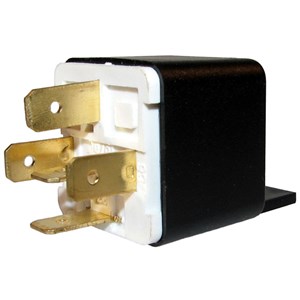

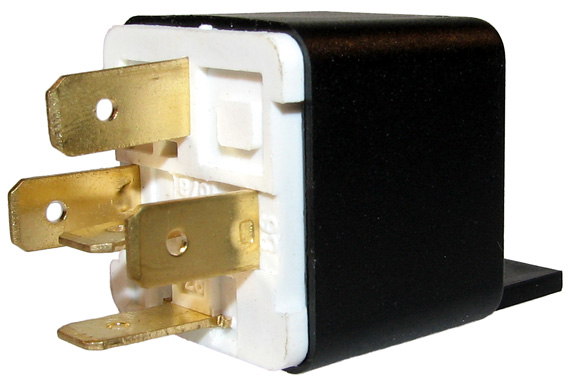

MINI RELAY, SINGLE BREAKING, ON/ON 5 PIN, 24V, 10/20A, ELECTROMAGNETIC
ED007
- Availability:
-
Yes
- Total: 1
Related items
Elektromagnetiska - Enkel, On/On, 5 stift, fast hållare
On/On, 5-stifts (6.3 x 0.8 mm) relä.
Plasthus i storlek (L x B x H): 27 x 26 x 24 mm
Hållare med skruvhål: 5 mm Artikelnummer med ändelse "-PP" = Butiksförpackad.
- Total: 1
Product Properties
| Complete with socket | No |
|---|---|
| Operating voltage DC | 24 V |
| Type of switch contact | Single contact |
| Voltage type (operating voltage) | DC |
| Voltage type for actuating | DC |
| With LED indication | No |
| Nominal current | 10-20 A |
| Type of electric connection | Flat plug-in connection |
| Number of contacts as normally closed contact | 1 . |
| Number of contacts as normally open contact | 1 . |
| Number of contacts as change-over contact | 0 . |
| Rated control supply voltage DC | 24 V |
| Voltage | 24V |
| With detachable clamps | No |
| Function | On/On |
| Packaging | Loose piece |
Dimensions
| Depth | 27 mm |
|---|---|
| Width | 26 mm |
| Height | 24 mm |
| MOQ | 1 . |
| Unit | pcs |
Logistics
| Barcode | 733117630040 |
|---|---|
| Country of origin | GB |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Packaging | Loose piece |
| Stock code | ED007 |
| Taric code | 85364190 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC001437 - Switching relay |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Mini relays - Electromagnetic |
| Search Description | MINIRELÄ, ENKELBRYTANDE, ON/ON, ELEKTROMAGNETISK |
| Alternative SKU | ED007 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
