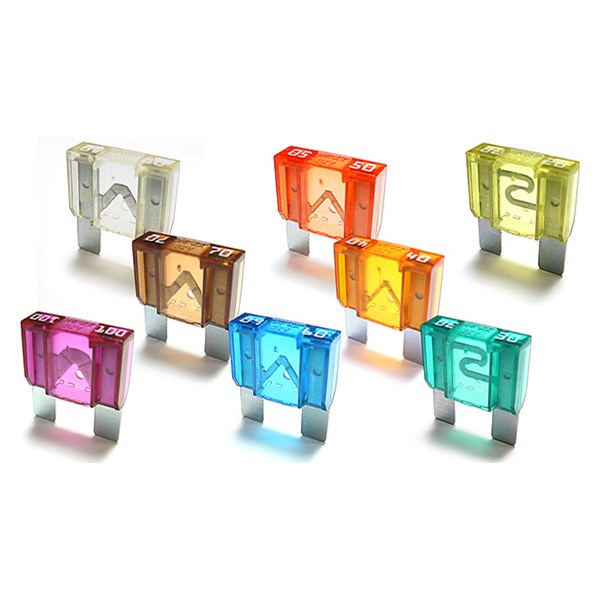

Maxi fuses in consumer pack

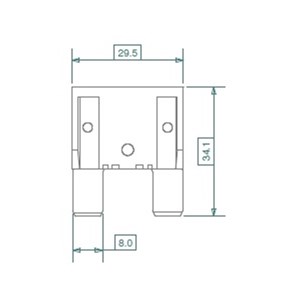

Maximum voltage: 32 V DCCurrent rating: 2-100 ASize (W x D x H): 29.5 x 8.9 x 34.3 mm

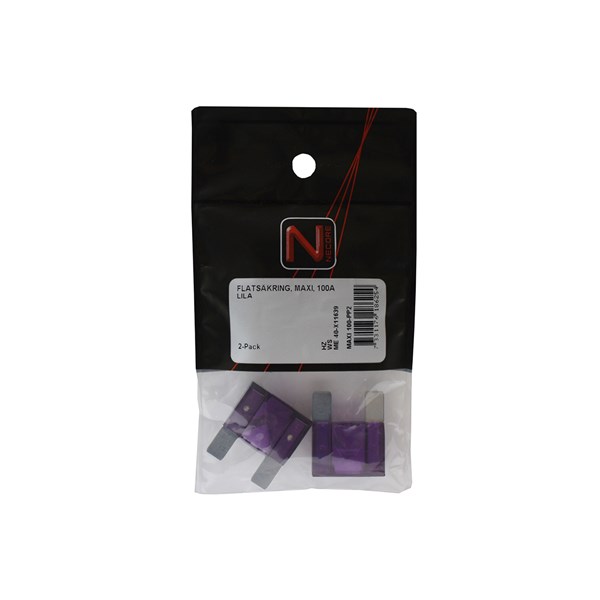

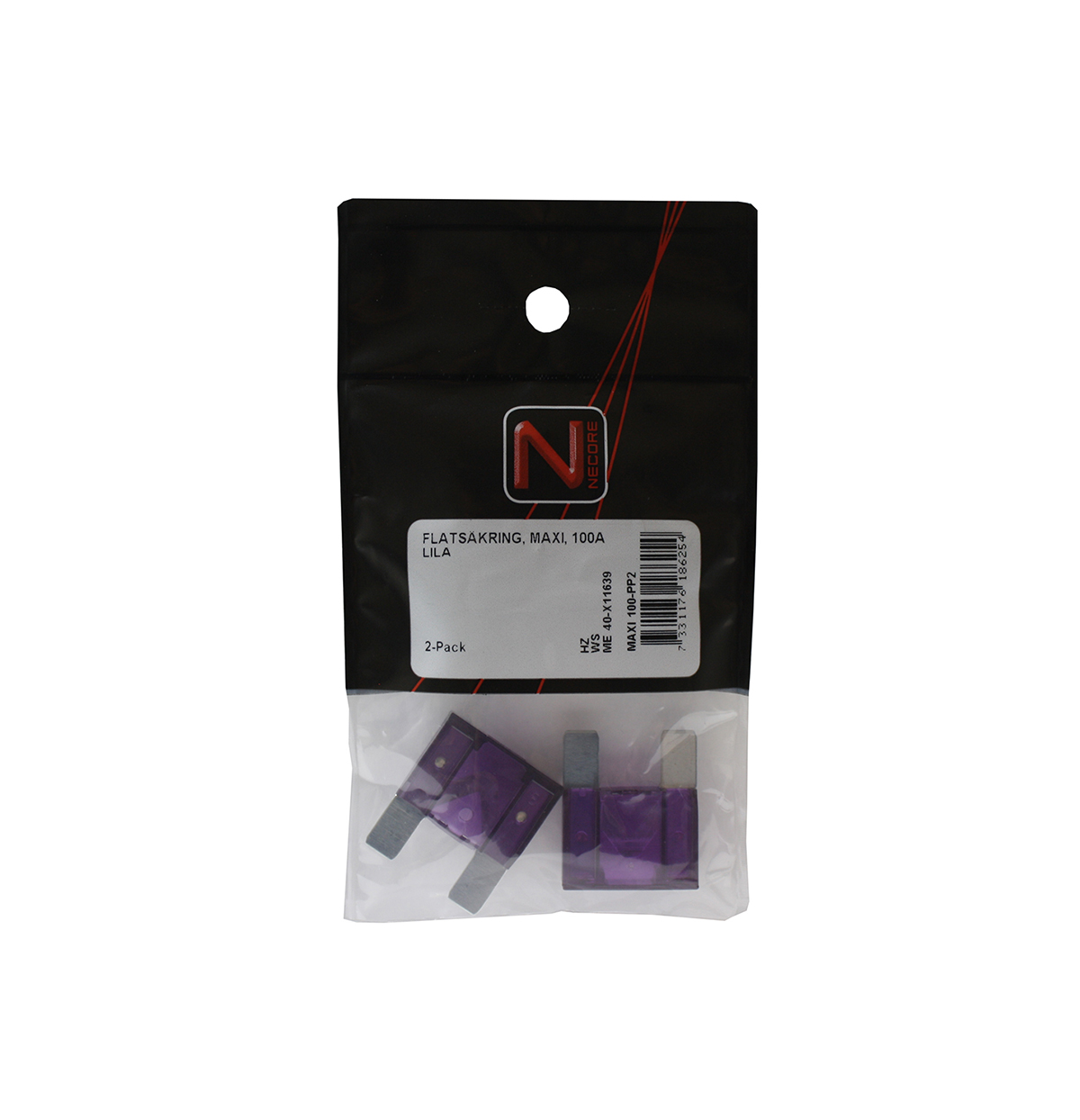

This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
Technical properties
- Release characteristic:
- Medium time-lag
- Rated voltage:
- 32 V
- Type of current:
- DC
- Colour code:
- Purple, Yellow, Green, Other, Red, Blue, Brown, Natural colour
- Nominal voltage DC:
- 32 V
- Number of fuses:
- 2 .
- Model:
- Blade fuse
- Max. current (Imax):
- 100 A, 20 A, 30 A, 40 A, 50 A, 60 A, 70 A, 80 A
- Nominal current:
- 100 A, 20 A, 30 A, 40 A, 50 A, 60 A, 70 A, 80 A, 25 A
- Fuse type:
- Maxi
- Packaging:
- Bag
Show more
Item List
- Total: 9
- Total: 9
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 9
| Product Description | Width | MOQ | Unit | Rated voltage | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| BLADE FUSE, MAXI, 20A YELLOW | 29.5 mm | 10 . | pck | 32 V | 34.3 mm |
Yes
|
|
|
| BLADE FUSE, MAXI, 20A WHITE | 29.5 mm | 10 . | pck | 34.3 mm |
No
|
|
|
|
| BLADE FUSE, MAXI, 30A GREEN | 29.5 mm | 10 . | pck | 32 V | 34.3 mm |
Yes
|
|
|
| BLADE FUSE, MAXI, 40A ORANGE | 29.5 mm | 10 . | pck | 32 V | 34.3 mm |
Yes
|
|
|
| BLADE FUSE, MAXI, 50A RED | 29.5 mm | 10 . | pck | 32 V | 34.3 mm |
Yes
|
|
|
| BLADE FUSE, MAXI, 60A BLUE | 29.5 mm | 10 . | pck | 32 V | 34.3 mm |
Yes
|
|
|
| BLADE FUSE, MAXI, 70A BROWN | 29.5 mm | 10 . | pck | 32 V | 34.3 mm |
Yes
|
|
|
| BLADE FUSE, MAXI, 80A NATURAL | 29.5 mm | 10 . | pck | 32 V | 34.3 mm |
Yes
|
|
|
| BLADE FUSE, MAXI, 100A PURPLE | 29.5 mm | 10 . | pck | 32 V | 34.3 mm |
Yes
|
|
|
- Total: 9
Similar Options
Approvals
- Total: 9
| Product Description | Availability | ||
|---|---|---|---|
| BLADE FUSE, MAXI, 20A YELLOW |
Yes
|
|
|
| BLADE FUSE, MAXI, 20A WHITE |
No
|
|
|
| BLADE FUSE, MAXI, 30A GREEN |
Yes
|
|
|
| BLADE FUSE, MAXI, 40A ORANGE |
Yes
|
|
|
| BLADE FUSE, MAXI, 50A RED |
Yes
|
|
|
| BLADE FUSE, MAXI, 60A BLUE |
Yes
|
|
|
| BLADE FUSE, MAXI, 70A BROWN |
Yes
|
|
|
| BLADE FUSE, MAXI, 80A NATURAL |
Yes
|
|
|
| BLADE FUSE, MAXI, 100A PURPLE |
Yes
|
|
|
- Total: 9
Technical Properties
- Total: 9
| Product Description | Release characteristic | Rated voltage | Type of current | Colour code | Nominal voltage DC | Number of fuses | Model | Max. current (Imax) | Nominal current | Fuse type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BLADE FUSE, MAXI, 20A YELLOW | Medium time-lag | 32 V | DC | Yellow | 32 V | 2 . | Blade fuse | 20 A | 20 A | Maxi | Bag |
Yes
|
|
|
| BLADE FUSE, MAXI, 20A WHITE | Medium time-lag | DC | Other | 32 V | 25 A |
No
|
|
|
||||||
| BLADE FUSE, MAXI, 30A GREEN | Medium time-lag | 32 V | DC | Green | 32 V | 2 . | Blade fuse | 30 A | 30 A | Maxi | Bag |
Yes
|
|
|
| BLADE FUSE, MAXI, 40A ORANGE | Medium time-lag | 32 V | DC | Other | 32 V | 2 . | Blade fuse | 40 A | 40 A | Maxi | Bag |
Yes
|
|
|
| BLADE FUSE, MAXI, 50A RED | Medium time-lag | 32 V | DC | Red | 32 V | 2 . | Blade fuse | 50 A | 50 A | Maxi | Bag |
Yes
|
|
|
| BLADE FUSE, MAXI, 60A BLUE | Medium time-lag | 32 V | DC | Blue | 32 V | 2 . | Blade fuse | 60 A | 60 A | Maxi | Bag |
Yes
|
|
|
| BLADE FUSE, MAXI, 70A BROWN | Medium time-lag | 32 V | DC | Brown | 32 V | 2 . | Blade fuse | 70 A | 70 A | Maxi | Bag |
Yes
|
|
|
| BLADE FUSE, MAXI, 80A NATURAL | Medium time-lag | 32 V | DC | Natural colour | 32 V | 2 . | Blade fuse | 80 A | 80 A | Maxi | Bag |
Yes
|
|
|
| BLADE FUSE, MAXI, 100A PURPLE | Medium time-lag | 32 V | DC | Purple | 32 V | 2 . | Blade fuse | 100 A | 100 A | Maxi | Bag |
Yes
|
|
|
- Total: 9
Other information
- Total: 9
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| BLADE FUSE, MAXI, 20A YELLOW | EC002298 - Blade fuse | 9.0 |
|
Blade fuses - Pin-pac | MAXI20-PP2 |
Yes
|
|
|
|
| BLADE FUSE, MAXI, 20A WHITE | EC002298 - Blade fuse | 9.0 |
|
Blade fuses - Pin-pac | FLATSÄKRING, MAXI, 25A | MAXI25-PP2 |
No
|
|
|
| BLADE FUSE, MAXI, 30A GREEN | EC002298 - Blade fuse | 9.0 |
|
Blade fuses - Pin-pac | MAXI30-PP2 |
Yes
|
|
|
|
| BLADE FUSE, MAXI, 40A ORANGE | EC002298 - Blade fuse | 9.0 |
|
Blade fuses - Pin-pac | MAXI40-PP2 |
Yes
|
|
|
|
| BLADE FUSE, MAXI, 50A RED | EC002298 - Blade fuse | 9.0 |
|
Blade fuses - Pin-pac | MAXI50-PP2 |
Yes
|
|
|
|
| BLADE FUSE, MAXI, 60A BLUE | EC002298 - Blade fuse | 9.0 |
|
Blade fuses - Pin-pac | MAXI60-PP2 |
Yes
|
|
|
|
| BLADE FUSE, MAXI, 70A BROWN | EC002298 - Blade fuse | 9.0 |
|
Blade fuses - Pin-pac | MAXI70-PP2 |
Yes
|
|
|
|
| BLADE FUSE, MAXI, 80A NATURAL | EC002298 - Blade fuse | 9.0 |
|
Blade fuses - Pin-pac | MAXI80-PP2 |
Yes
|
|
|
|
| BLADE FUSE, MAXI, 100A PURPLE | EC002298 - Blade fuse | 9.0 |
|
Blade fuses - Pin-pac | MAXI100-PP2 |
Yes
|
|
|
- Total: 9
