NWLS6000K09WFF-25-R
LED STRIP WORKLIGHT 25m, FLICKER FREE SINGLE LED, REEL, 240V, 6000K, IP54, 8W/m
NWLS6000K09WFF-25-R
- Availability:
-
No
- Total: 1
Related items
Work light LED strip, Flicker free on reel
Flicker-free LED strip, work light in a robust design for outdoor/indoor use that withstands rough handling, wet conditions, and can be easily adjusted to suit all need. The LED strip comes with either a single or double row of diodes, double diodes provide increased power and increased brightness

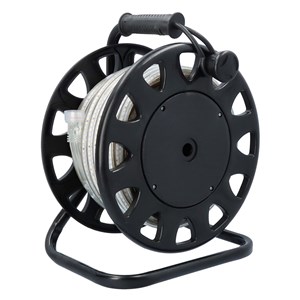

Comes on a reel for easy roll-up and storage.
Poor lighting on the workplace can affect both eyes and brain, leading to headaches and difficulty concentrating.
To be used at construction sites , stairwells, elevator shafts, scaffolding, and corridors.
Note that it should not be connected while still in the box or rolled up.
Temperature range: -25º to +50º
CE and RoHS certification
Standard: EN 60595-1
LVD: 2014/35/EU
EMC: 2014/30/EU.
- Total: 1
E7600037
Product Properties
| Protection class according to IEC 61140 | II |
|---|---|
| Lamp type | LED not exchangeable |
| Voltage type | AC |
| Energy efficiency class of the built-in lamp | Other |
| Max. system power | 200 W |
| Colour of light | White |
| Colour temperature | 6000 K |
| Colour rendering index CRI | 80-89 |
| Power factor | 0.5 . |
| Number of poles | 2 . |
| Luminaire efficacy | 110 lm/W |
| Connection type | Other |
| Self-adhesive | No |
| Mounting method | Surface mounting |
| With protective cover | Yes |
| Degree of protection (IP) | IP65 |
| Model | Hose |
| Exchangeable control gear | Yes |
| Colour of light adjustable | No |
| Beam angle adjustable | No |
| Luminous flux adjustable | No |
| Number of nodes per meter | 120 . |
| Number of nodes per foot | 37 . |
| Lamp power per meter | 8 W |
| Lamp power per foot | 2.4384 W |
| Luminous flux per meter | 880 lm |
| Lamp voltage | 220-240 V |
| Beam angle | 120 ° |
| Suitable for dimmer | No |
| With end piece | Yes |
| With connection set | Yes |
Dimensions
| Width | 15 mm |
|---|---|
| Conductor cross section | 1.5 mm² |
| MOQ | 1 . |
| Height/depth | 7 mm |
| Unit | pcs |
| Length | 25000 mm |
| Beam angle | 120 ° |
Logistics
| Barcode | 733117614898 |
|---|---|
| Country of origin | CN |
| E-no | E7600037 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | NWLS6000K09WFF-25-R |
| Taric code | 85414010 |
| Unit | pcs |
Approvals
| Protection class according to IEC 61140 | II |
|---|---|
| Voltage type | AC |
| Degree of protection (IP) | IP65 |
Other info
| ETIM-Class | EC002706 - Light ribbon-/hose/-strip |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Work lights |
| Search Description | SKH2023TOBIAS1, ENR2023H |
| Alternative SKU | NWLS6000K09WFF-25-R |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| REACH | No SVHC (Latest. 27 June 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
