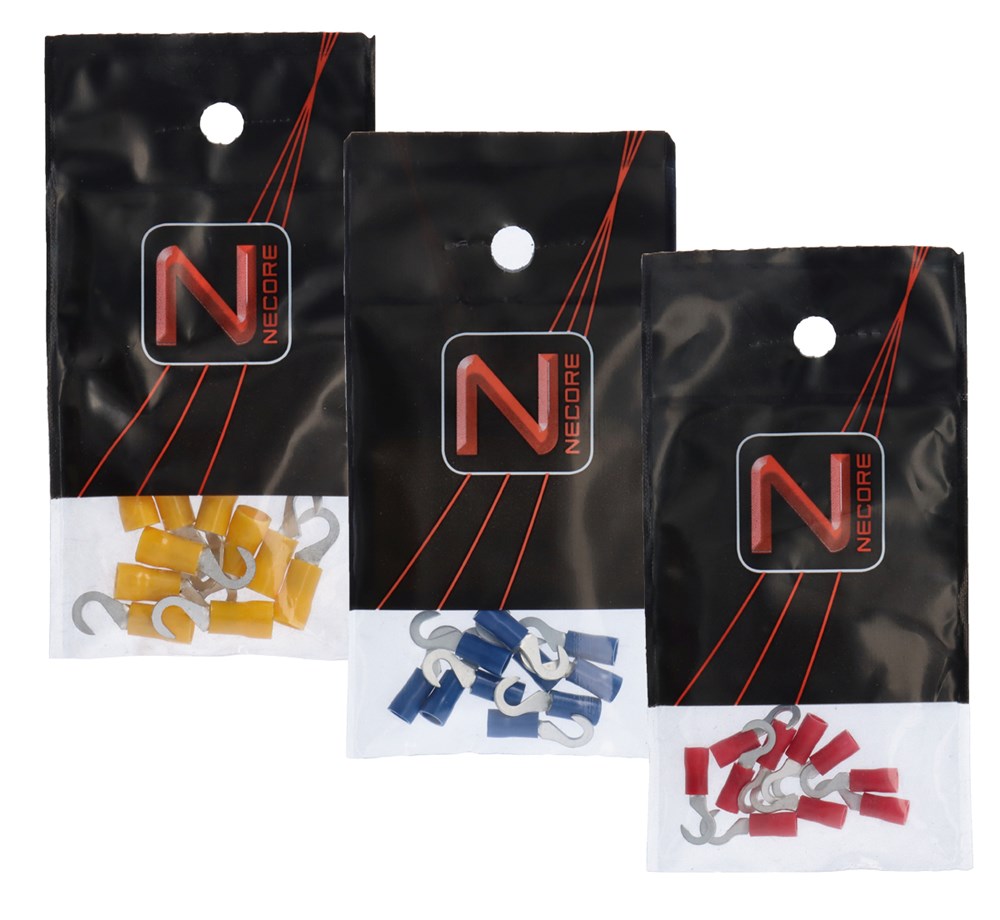

Krokkabelsko i Konsumentförpackning (PVC)
Ett stort urval av kabelskor(isolerade, oisolerade, rör, plåt & limkabelskor) förpackade i påse(Pin-Pac) med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A, 27 A, 48 A
- Flange shape:
- Hook shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-75 °C
- Material:
- Copper
- Voltage max:
- 600V
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_A-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 3
| Product Description | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|
| INSULATED HOOK TERMINAL RED, M4, 10-PACK | 10 . | pck | 4 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED HOOK TERMINAL YELLOW, M5, 10-PACK | 10 . | pck | 5 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED HOOK TERMINAL BLUE, M4 , 10-PACK | 10 . | pck | 4 . | 1.04-2.63 mm² |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Approved according to CE | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|
| INSULATED HOOK TERMINAL RED, M4, 10-PACK |
|
|
Yes
|
|
|
| INSULATED HOOK TERMINAL YELLOW, M5, 10-PACK |
|
|
Yes
|
|
|
| INSULATED HOOK TERMINAL BLUE, M4 , 10-PACK |
|
|
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED HOOK TERMINAL RED, M4, 10-PACK | Yes | Yes | No | 19 A | Hook shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Copper | 600V |
Yes
|
|
|
| INSULATED HOOK TERMINAL YELLOW, M5, 10-PACK | Yes | Yes | No | 48 A | Hook shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Copper | 600V |
Yes
|
|
|
| INSULATED HOOK TERMINAL BLUE, M4 , 10-PACK | Yes | Yes | No | 27 A | Hook shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Copper | 600V |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED HOOK TERMINAL RED, M4, 10-PACK | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Hook Terminals - Pin-pac bags | A1543KPL-PP10 |
Yes
|
|
|
| INSULATED HOOK TERMINAL YELLOW, M5, 10-PACK | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Hook Terminals - Pin-pac bags | A4653KPL-PP10 |
Yes
|
|
|
| INSULATED HOOK TERMINAL BLUE, M4 , 10-PACK | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Hook Terminals - Pin-pac bags | A2543KPL-PP10 |
Yes
|
|
|
- Total: 3
