360 view
N 0503 FLF5 PLD-PP10

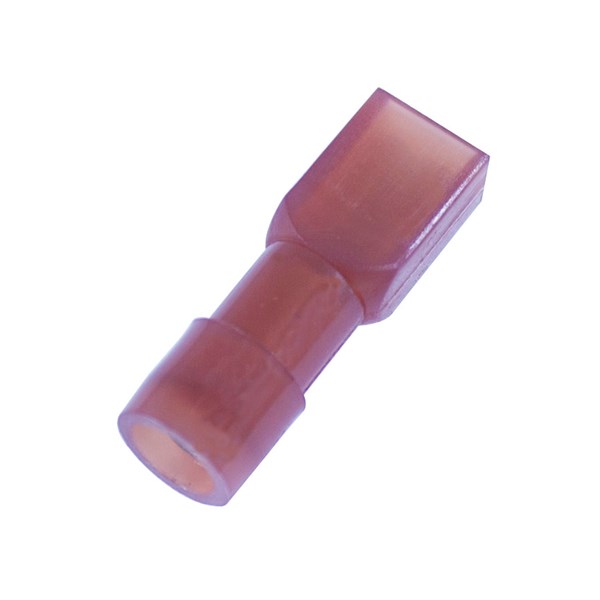

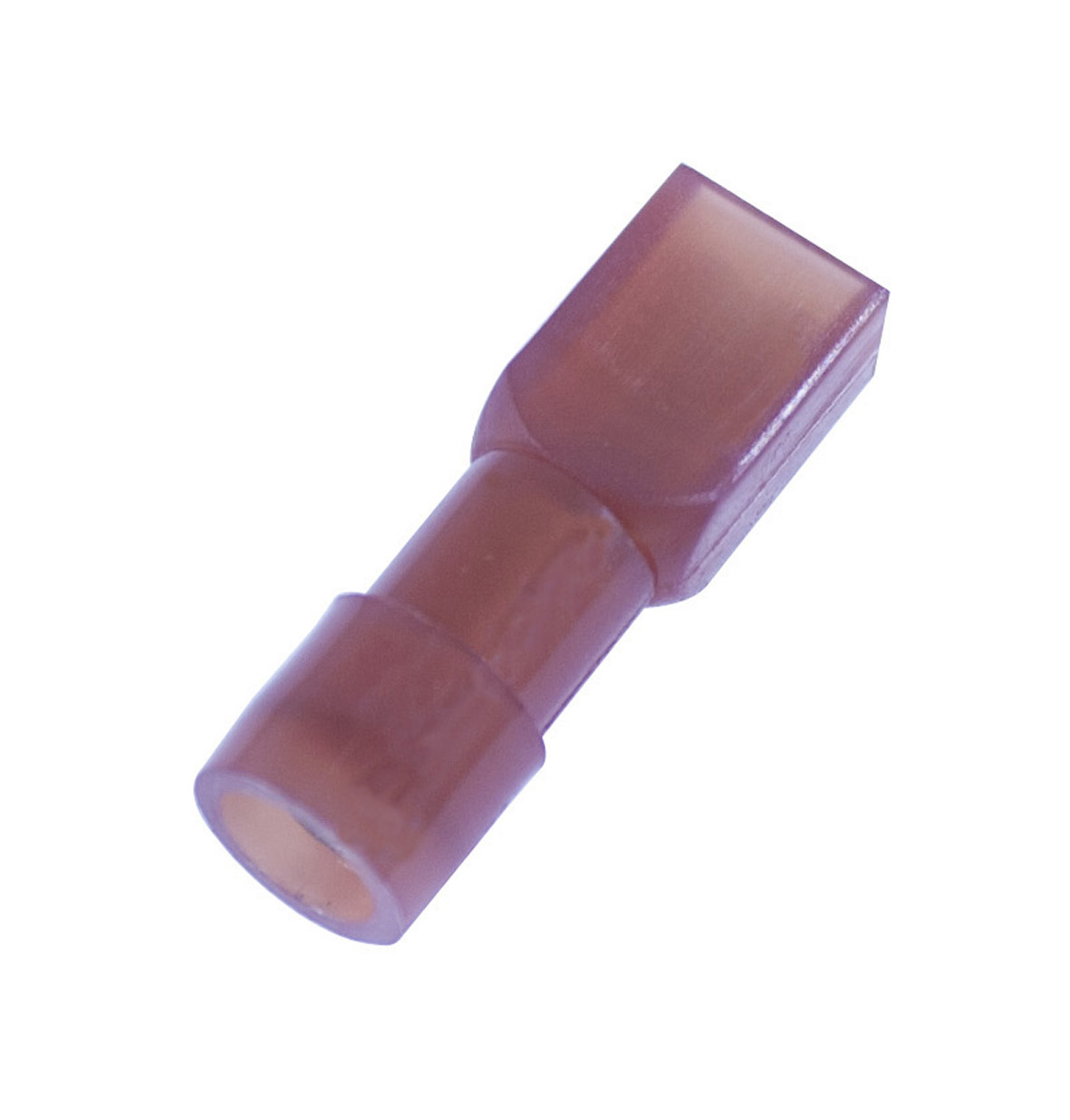

FULLY INSULATED RECEPTACLE RED, 2.8x0.5mm, 10-PACK
N 0503 FLF5 PLD-PP10
- Availability:
-
No
- Total: 1
Related items

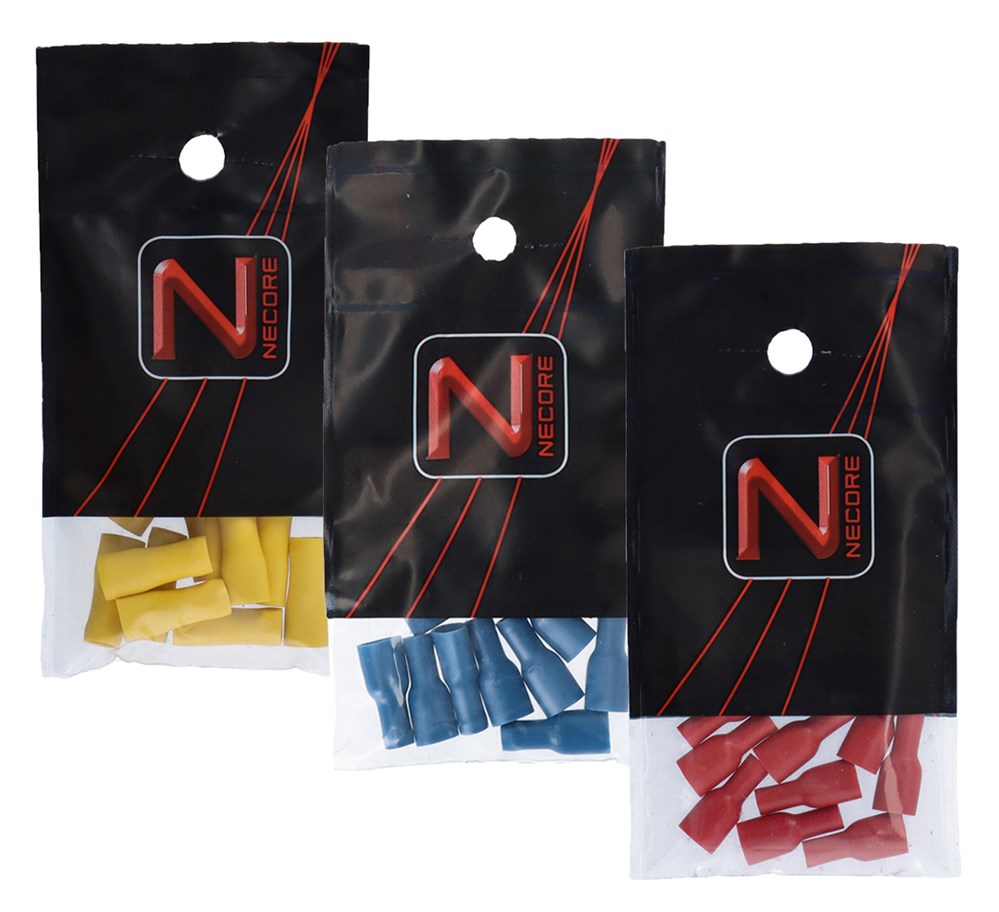

Helisolerade flatstiftshylsa i Konsumentförpackning (PA)
Ett stort urval av kabelskor(isolerade, oisolerade, rör, plåt & limkabelskor) förpackade i påse(Pin-Pac) med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Bushing |
| Insulation | Fully isolated |
| Colour insulation | Red |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyamide (PA) |
| Fire classification | According to UL94V0 |
| Material | Brass |
| Voltage max | 300V |
Dimensions
| MOQ | 200 . |
|---|---|
| Unit | pck |
| Plug dimensions | Flat 2.8x0.5 mm |
Logistics
| Barcode | 733117633197 |
|---|---|
| Country of origin | CN |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 200 . |
| Stock code | N 0503 FLF5 PLD-PP10 |
| Taric code | 85369010 |
| Unit | pck |
Approvals
| Approved according to CE | Yes |
|---|---|
| Inflammability class of insulation material according to with UL94 | V0 |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Fully Insulated Receptacle - Pin-pac bags |
| Alternative SKU | N0503FLF5PLD-PP10 |
Compliance
| Iron and Steel Sanction | Contain no Iron or Steel |
|---|
