360 view
MINI 20-PP10

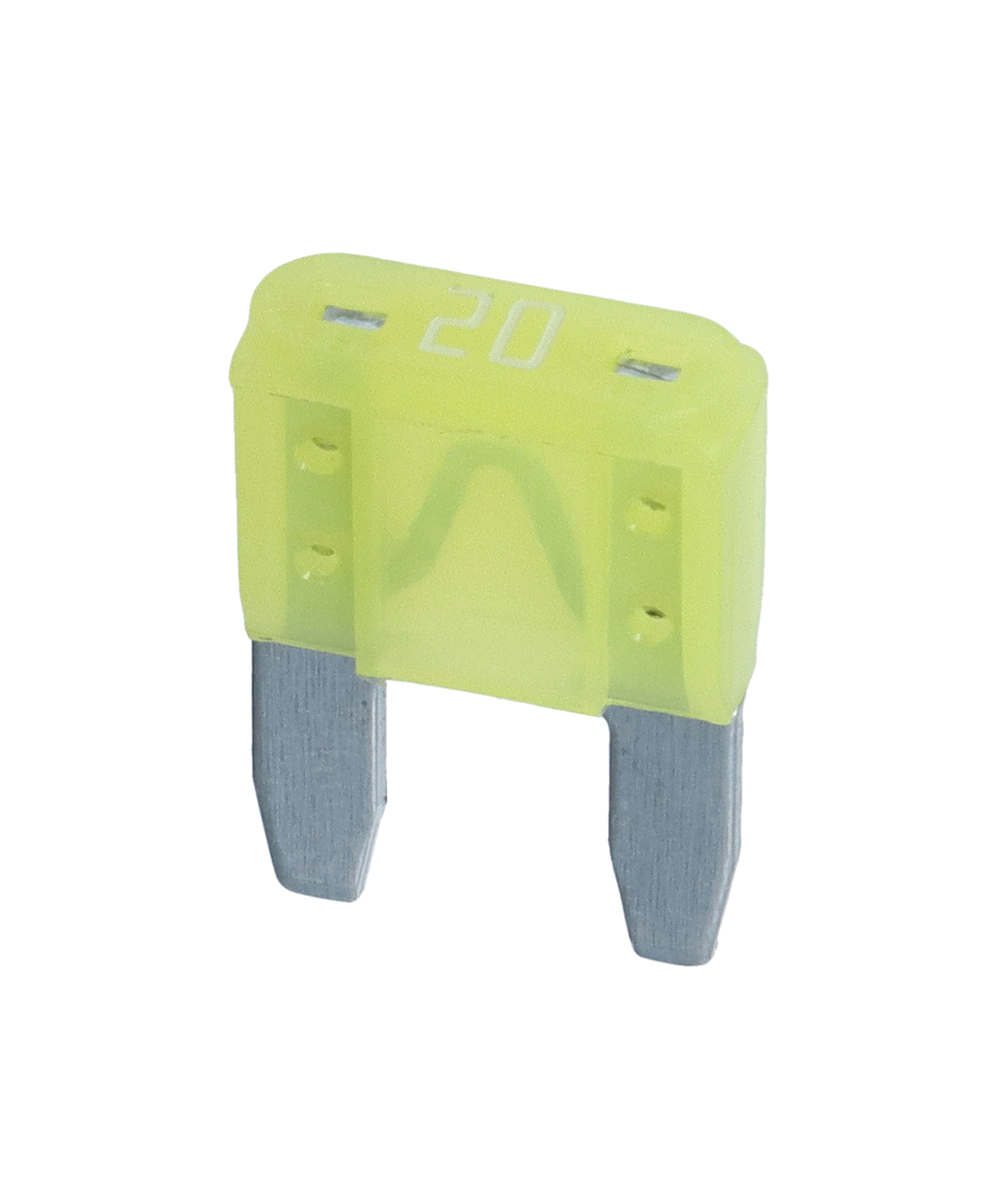

BLADE FUSE, MINI, 20A YELLOW
MINI 20-PP10
- Availability:
-
Yes
- Total: 1
Related items
Minisäkringar i Polykarbonat (PC) i Konsumentförpackning
Maximum voltage: 32 V DCCurrent rating: 2-30 AMaterial: Polycarbonate (PC)Size (W x D x H): 11.0 x 3.8 x 16.2 mm
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
- Total: 1
Product Properties
| Release characteristic | Fast (F) |
|---|---|
| Rated voltage | 32 V |
| Type of current | DC |
| Colour code | Yellow |
| Nominal voltage DC | 58 V |
| Number of fuses | 10 . |
| Model | Blade fuse |
| Max. current (Imax) | 20 A |
| Nominal current | 20 A |
| Fuse type | Mini |
| Packaging | Bag |
Dimensions
| Width | 11 mm |
|---|---|
| MOQ | 10 . |
| Unit | pck |
| Rated voltage | 32 V |
| Length | 16.2 mm |
Logistics
| Barcode | 733117618647 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Packaging | Bag |
| Stock code | MINI 20-PP10 |
| Taric code | 85361050 |
| Unit | pck |
Approvals
Other info
| ETIM-Class | EC002298 - Blade fuse |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Blade fuses - Pin-pac |
| Alternative SKU | MINI20-PP10 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
