ELECTRICITY METER, FLEX PRO1-S, WITH CABLE CEE, 16A/230 V, IP54
50523091
- Availability:
-
No
- Total: 1
Related items

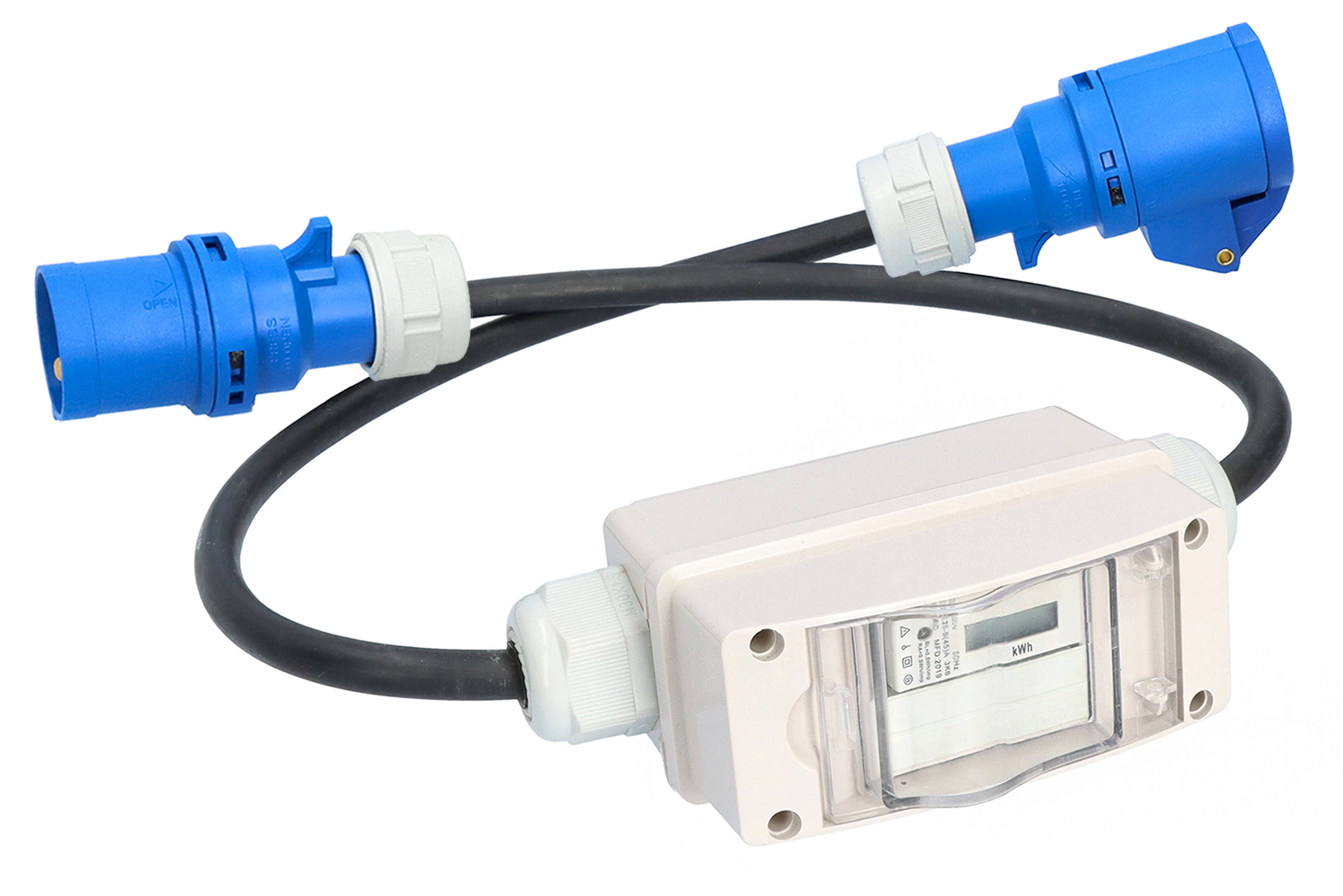

Electricity meter digital, CEE
Digital electricity meter on cable, the meter cannot be reset and comes in a sealed housing provided with CEE-devices in each end.
Portable electricity meter for example campsites, marinas and marketplaces.
230 VAC
Max: 25A, 50-60 Hz ±10%
IP-class: IP 54 (Kabel IP 44)
Working temperature: -25°C till +55°C
Storage temperature: -30°C till +70°C
Accuracy rating: B
Cable length: 2 x 50cm
Electric meter measurements: 90 x 125 x 59mm
EN50470-3 / IEC62053-21.
- Total: 1
E0900379
Product Properties
| Degree of protection (IP) | IP44 |
|---|---|
| Model | Direct measurement |
| Max. current (Imax) | 16 A |
| Frequency | 50-60 Hz |
| Width in number of modular spacings | 1 . |
| Pole type | Single phase |
| Type of indication | Digital |
Dimensions
| Depth | 59 mm |
|---|---|
| Width | 125 mm |
| Height | 90 mm |
| MOQ | 1 . |
| Unit | pcs |
Logistics
| Barcode | 733117641083 |
|---|---|
| Country of origin | NL |
| E-no | E0900379 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | 50523091 |
| Taric code | 90283011 |
| Unit | pcs |
Approvals
| Degree of protection (IP) | IP44 |
|---|---|
| Approved according to CE | Yes |
Other info
| ETIM-Class | EC001506 - Kilowatt-hour meter |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Electricity Meter |
| Search Description | ELMÄTARE PÅ KABEL ENR2023V |
| Alternative SKU | 50523091 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
50523091_51523091 User Manual
Generate Datasheet:
