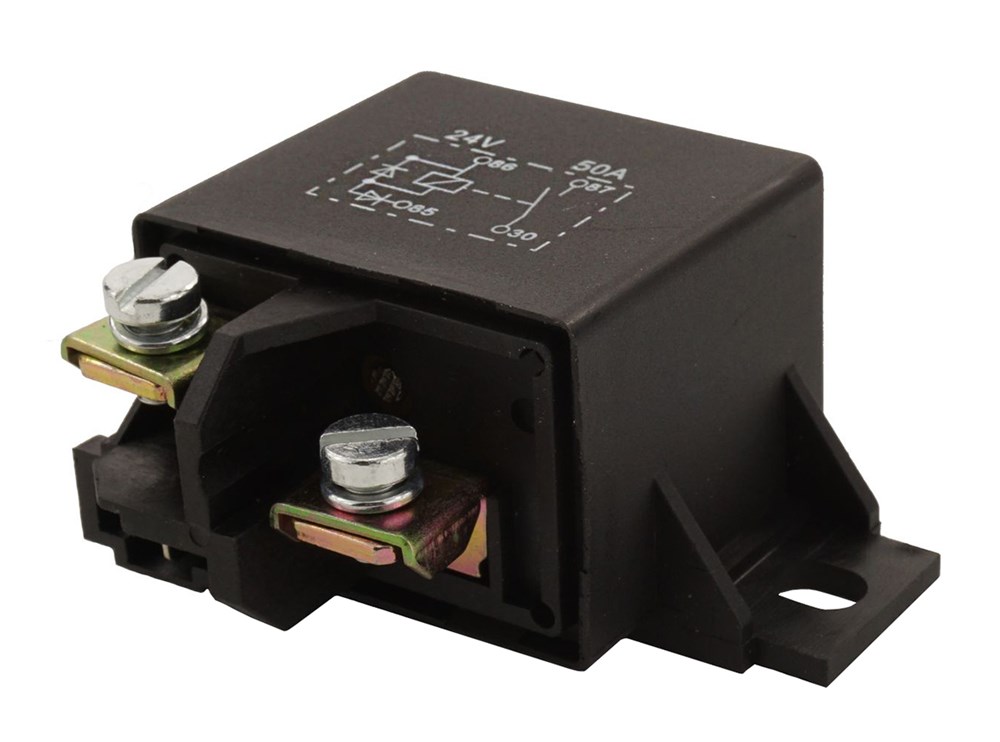

Diode – Single, On/Off, 4-pin
On/Off, diod- relä, skruvanslutning med fäste. Normally open contacts.
Plasthus i storlek ( L x B x H) 39 x 75 x 32 mm.
Diod-reläer eliminerar spänningsspikar och skyddar elektroniken.
Technical properties
- Complete with socket:
- No
- Operating voltage DC:
- 24 V
- Type of switch contact:
- Single contact
- Voltage type (operating voltage):
- DC
- Voltage type for actuating:
- DC
- With LED indication:
- No
- Nominal current:
- 50 A
- Type of electric connection:
- Clip connection
- Number of contacts as normally closed contact:
- 0 .
- Number of contacts as normally open contact:
- 1 .
- Number of contacts as change-over contact:
- 0 .
- Rated control supply voltage DC:
- 24 V
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
DD552

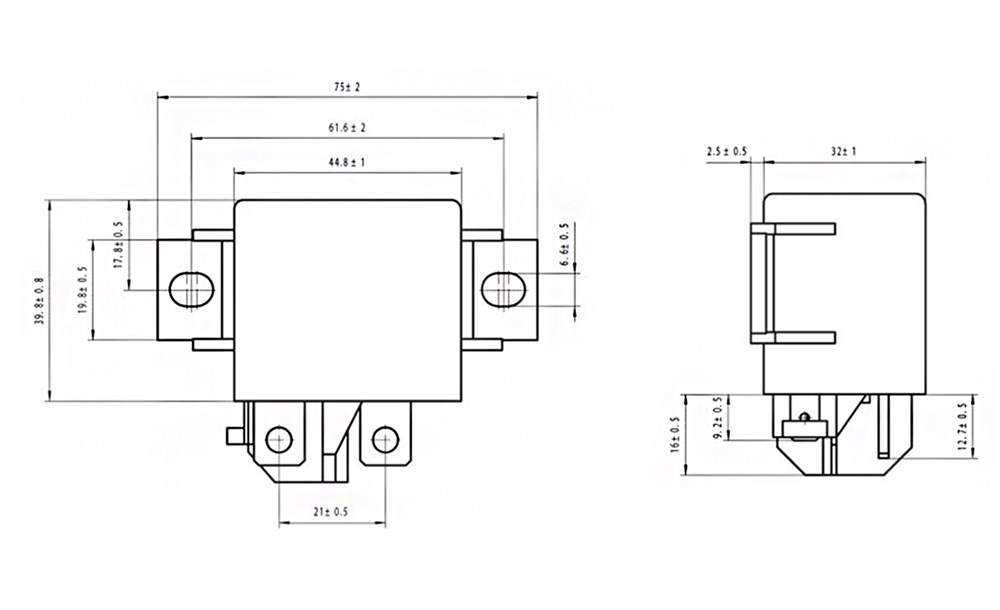

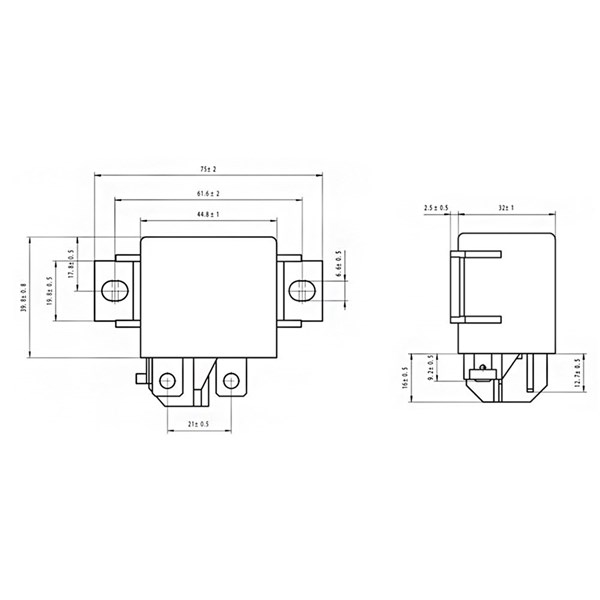

Dimensions
- Total: 1
| Product Description | Depth | Width | Height | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|
| MINI RELAY, SINGLE BREAKING, ON/OFF, DIODE 4 PIN, 24V, 50A | 39 mm | 75 mm | 32 mm | 1 . | pcs |
No
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| MINI RELAY, SINGLE BREAKING, ON/OFF, DIODE 4 PIN, 24V, 50A |
No
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Complete with socket | Operating voltage DC | Type of switch contact | Voltage type (operating voltage) | Voltage type for actuating | With LED indication | Nominal current | Type of electric connection | Number of contacts as normally closed contact | Number of contacts as normally open contact | Number of contacts as change-over contact | Rated control supply voltage DC | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MINI RELAY, SINGLE BREAKING, ON/OFF, DIODE 4 PIN, 24V, 50A | No | 24 V | Single contact | DC | DC | No | 50 A | Clip connection | 0 . | 1 . | 0 . | 24 V |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| MINI RELAY, SINGLE BREAKING, ON/OFF, DIODE 4 PIN, 24V, 50A | EC001437 - Switching relay | 9.0 |
|
Mini relays - Diode | RELÄ, ENKELBRYTANDE, ON/OFF, DIOD | DD552 |
No
|
|
|
- Total: 1
