Boundary wire for robotic lawn mowers
High quality signal cable for robot lawn mowers of all brands. Resistant and durable PE-insulation cable that can be buried in moist soil or gravel. It has tinned copper conductors for best conductivity and it does not risk corroding at joints.
Cable can be nailed down on lawn or buried underground. Make sure that the grass is cut when using staples. Regardless of the method, the cable will not be visible after a few weeks as it will sink into the lawn.

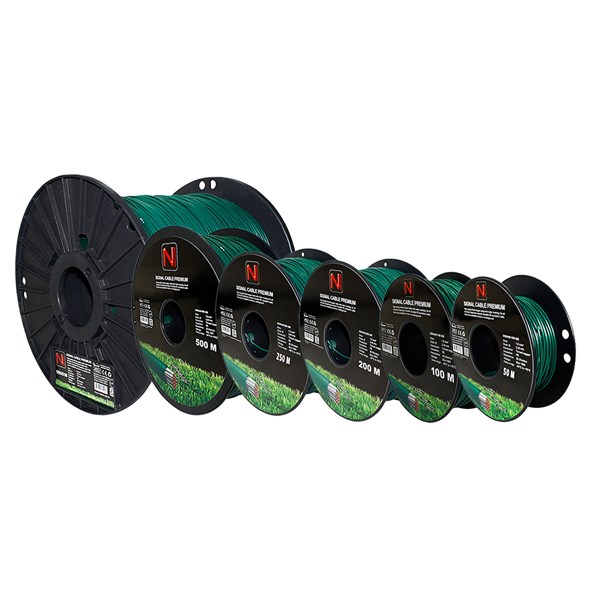

Length: 50m, 100m, 250m, 500m, 1000m.
Area: See below.
Sheath: PE (Polyethylene)
Outer diameter: 2.5mm
Color: Green
Marking: Meter marked
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Other
- Specification core insulation:
- Polyethylene (PE)
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Green
- Permitted cable outer temperature after assembling without vibration:
- -40-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Core colour:
- Green
- Conductor surface:
- Tinned
- Min. permitted bending radius, stationary application/permanent installation:
- 8.4 mm
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Tillbehöskoncept för robotgräsklippare
Dimensions
- Total: 5
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B3, 100V, PE, FT, 70C | 1 mm² | 50 . | 2.1 mm | 8.4 mm | 1 mm | m |
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B3, 100V, PE, FT, 70C | 1 mm² | 100 . | 2.1 mm | 8.4 mm | 1 mm | m |
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B5, 100V, PE, FT, 70C | 1 mm² | 200 . | 2.1 mm | 8.4 mm | 1 mm | m |
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B5, 100V, PE, FT, 70C | 1 mm² | 250 . | 2.1 mm | 8.4 mm | 1 mm | m |
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B5, 100V, PE, FT, 70C | 1 mm² | 500 . | 2.1 mm | 8.4 mm | 1 mm | m |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B3, 100V, PE, FT, 70C | N/A | N/A | N/A | N/A | Yes | No | No | No |
|
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B3, 100V, PE, FT, 70C | N/A | N/A | N/A | N/A | Yes | No | No | No |
|
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B5, 100V, PE, FT, 70C | N/A | N/A | N/A | N/A | Yes | No | No | No |
|
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B5, 100V, PE, FT, 70C | N/A | N/A | N/A | N/A | Yes | No | No | No |
|
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B5, 100V, PE, FT, 70C | N/A | N/A | N/A | N/A | Yes | No | No | No |
|
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Halogen free | Conductor category | Core colour | Conductor surface | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B3, 100V, PE, FT, 70C | 1 . | Other | Polyethylene (PE) | None | No | None | Other | Green | -40-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | Yes | Class 5 = flexible | Green | Tinned | 8.4 mm |
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B3, 100V, PE, FT, 70C | 1 . | Other | Polyethylene (PE) | None | No | None | Other | Green | -40-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | Yes | Class 5 = flexible | Green | Tinned | 8.4 mm |
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B5, 100V, PE, FT, 70C | 1 . | Other | Polyethylene (PE) | None | No | None | Other | Green | -40-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | Yes | Class 5 = flexible | Green | Tinned | 8.4 mm |
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B5, 100V, PE, FT, 70C | 1 . | Other | Polyethylene (PE) | None | No | None | Other | Green | -40-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | Yes | Class 5 = flexible | Green | Tinned | 8.4 mm |
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B5, 100V, PE, FT, 70C | 1 . | Other | Polyethylene (PE) | None | No | None | Other | Green | -40-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | Yes | Class 5 = flexible | Green | Tinned | 8.4 mm |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B3, 100V, PE, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Boundary wire | GRÄSKLIPPARK BEGRÄNSNINGSK SIGNALK GKK2023 | 050648-50GR |
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B3, 100V, PE, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Boundary wire | GRÄSKLIPPARK BEGRÄNSNINGSK SIGNALK GKK2023 | 050648-100GR |
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B5, 100V, PE, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Boundary wire | GRÄSKLIPPARK BEGRÄNSNINGSK SIGNALK GKK2023 | 050648-200GR |
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B5, 100V, PE, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Boundary wire | GRÄSKLIPPARK BEGRÄNSNINGSK SIGNALK GKK2023 | 050648-250GR |
Yes
|
|
|
| Area: 1.0mm2, OD: 2.5mm, RLUB, GREEN SPOOL B5, 100V, PE, FT, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Boundary wire | GRÄSKLIPPARK BEGRÄNSNINGSK SIGNALK GKK2023 | 050648-500GR |
Yes
|
|
|
- Total: 5
