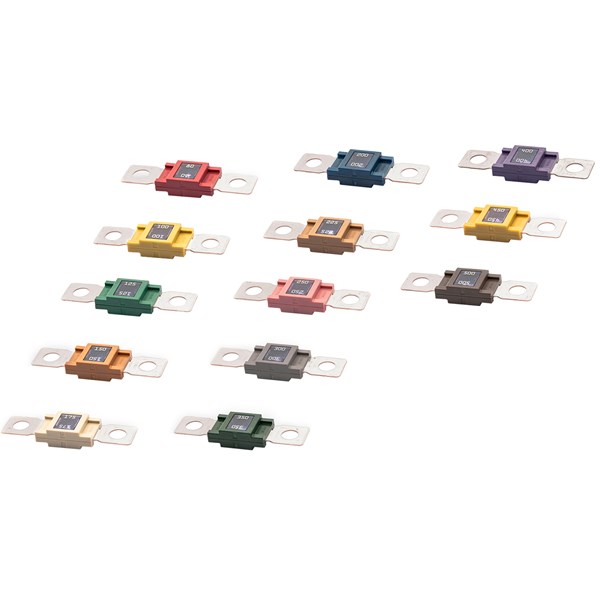

Bolt-on - Mega M-serien i Konsumentförpackning
MEGA M
Maximum voltage: 32 V DCCurrent rating: 100-500 ASlow acting fuse, tinned
Stud size: M8

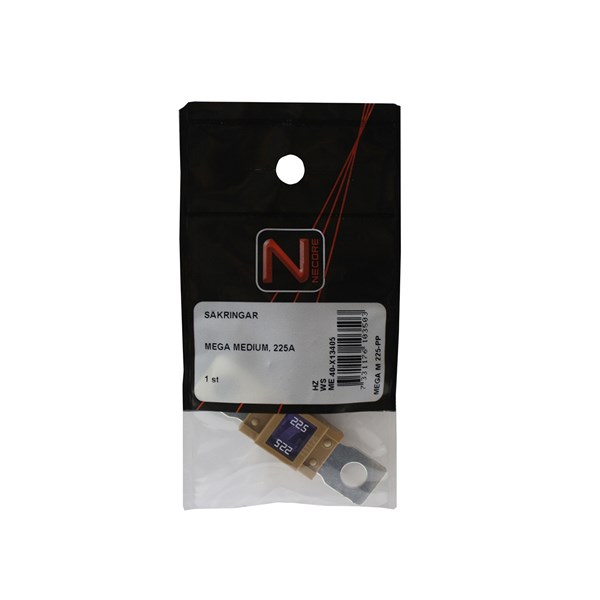

This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
Technical properties
- Explosion-proof:
- No
- Release characteristic:
- Time-lag (T)
- Rated voltage:
- 32 V
- Optical defect indication:
- Yes
- Type of current:
- DC
- Colour code:
- Yellow
- Nominal voltage DC:
- 32 V
- Max. continuous voltage DC:
- 32 V
- Number of fuses:
- 1 .
- Model:
- Other
- Max. current (Imax):
- 100 A, 125 A, 150 A, 175 A, 200 A, 225 A, 250 A, 300 A
- Nominal current:
- 100 A, 125 A, 150 A, 175 A, 200 A, 225 A, 250 A, 300 A
- Fuse type:
- Mega M
- Packaging:
- Bag
Show more
Item List
- Total: 8
- Total: 8
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 8
| Product Description | Width | MOQ | Unit | Rated voltage | Mounting holes | Centre-to-centre distance of connections | Thickness | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| BOLT-ON FUSE, MEDIUM, 100A YELLOW | 68 mm | 1 . | pck | 32 V | M8 | 51 mm | 9.7 mm | 19 mm |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 125A GREEN | 68 mm | 1 . | pck | 32 V | M8 | 51 mm | 9.7 mm | 19 mm |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 150A ORANGE | 68 mm | 1 . | pck | 32 V | M8 | 51 mm | 9.7 mm | 19 mm |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 175A WHITE | 68 mm | 1 . | pck | 32 V | M8 | 51 mm | 9.7 mm | 19 mm |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 200A BLUE | 68 mm | 1 . | pck | 32 V | M8 | 51 mm | 9.7 mm | 19 mm |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 225A BEIGE | 68 mm | 1 . | pck | 32 V | M8 | 51 mm | 9.7 mm | 19 mm |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 250A PINK | 68 mm | 1 . | pck | 32 V | M8 | 51 mm | 9.7 mm | 19 mm |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 300A GREY | 68 mm | 1 . | pck | 32 V | M8 | 51 mm | 9.7 mm | 19 mm |
Yes
|
|
|
- Total: 8
Similar Options
Approvals
- Total: 8
| Product Description | Availability | ||
|---|---|---|---|
| BOLT-ON FUSE, MEDIUM, 100A YELLOW |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 125A GREEN |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 150A ORANGE |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 175A WHITE |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 200A BLUE |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 225A BEIGE |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 250A PINK |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 300A GREY |
Yes
|
|
|
- Total: 8
Technical Properties
- Total: 8
| Product Description | Explosion-proof | Release characteristic | Rated voltage | Optical defect indication | Type of current | Colour code | Nominal voltage DC | Max. continuous voltage DC | Number of fuses | Model | Max. current (Imax) | Nominal current | Fuse type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOLT-ON FUSE, MEDIUM, 100A YELLOW | No | Time-lag (T) | 32 V | Yes | DC | Yellow | 32 V | 32 V | 1 . | Other | 100 A | 100 A | Mega M | Bag |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 125A GREEN | No | Time-lag (T) | 32 V | Yes | DC | Yellow | 32 V | 32 V | 1 . | Other | 125 A | 125 A | Mega M | Bag |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 150A ORANGE | No | Time-lag (T) | 32 V | Yes | DC | Yellow | 32 V | 32 V | 1 . | Other | 150 A | 150 A | Mega M | Bag |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 175A WHITE | No | Time-lag (T) | 32 V | Yes | DC | Yellow | 32 V | 32 V | 1 . | Other | 175 A | 175 A | Mega M | Bag |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 200A BLUE | No | Time-lag (T) | 32 V | Yes | DC | Yellow | 32 V | 32 V | 1 . | Other | 200 A | 200 A | Mega M | Bag |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 225A BEIGE | No | Time-lag (T) | 32 V | Yes | DC | Yellow | 32 V | 32 V | 1 . | Other | 225 A | 225 A | Mega M | Bag |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 250A PINK | No | Time-lag (T) | 32 V | Yes | DC | Yellow | 32 V | 32 V | 1 . | Other | 250 A | 250 A | Mega M | Bag |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 300A GREY | No | Time-lag (T) | 32 V | Yes | DC | Yellow | 32 V | 32 V | 1 . | Other | 300 A | 300 A | Mega M | Bag |
Yes
|
|
|
- Total: 8
Other information
- Total: 8
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| BOLT-ON FUSE, MEDIUM, 100A YELLOW | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MEGAM100-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 125A GREEN | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MEGAM125-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 150A ORANGE | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MEGAM150-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 175A WHITE | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MEGAM175-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 200A BLUE | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MEGAM200-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 225A BEIGE | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MEGAM225-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 250A PINK | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MEGAM250-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, MEDIUM, 300A GREY | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MEGAM300-PP1 |
Yes
|
|
|
- Total: 8
