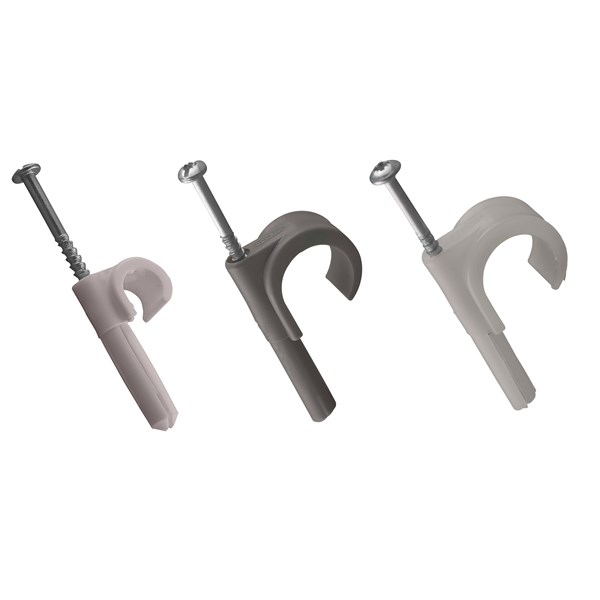

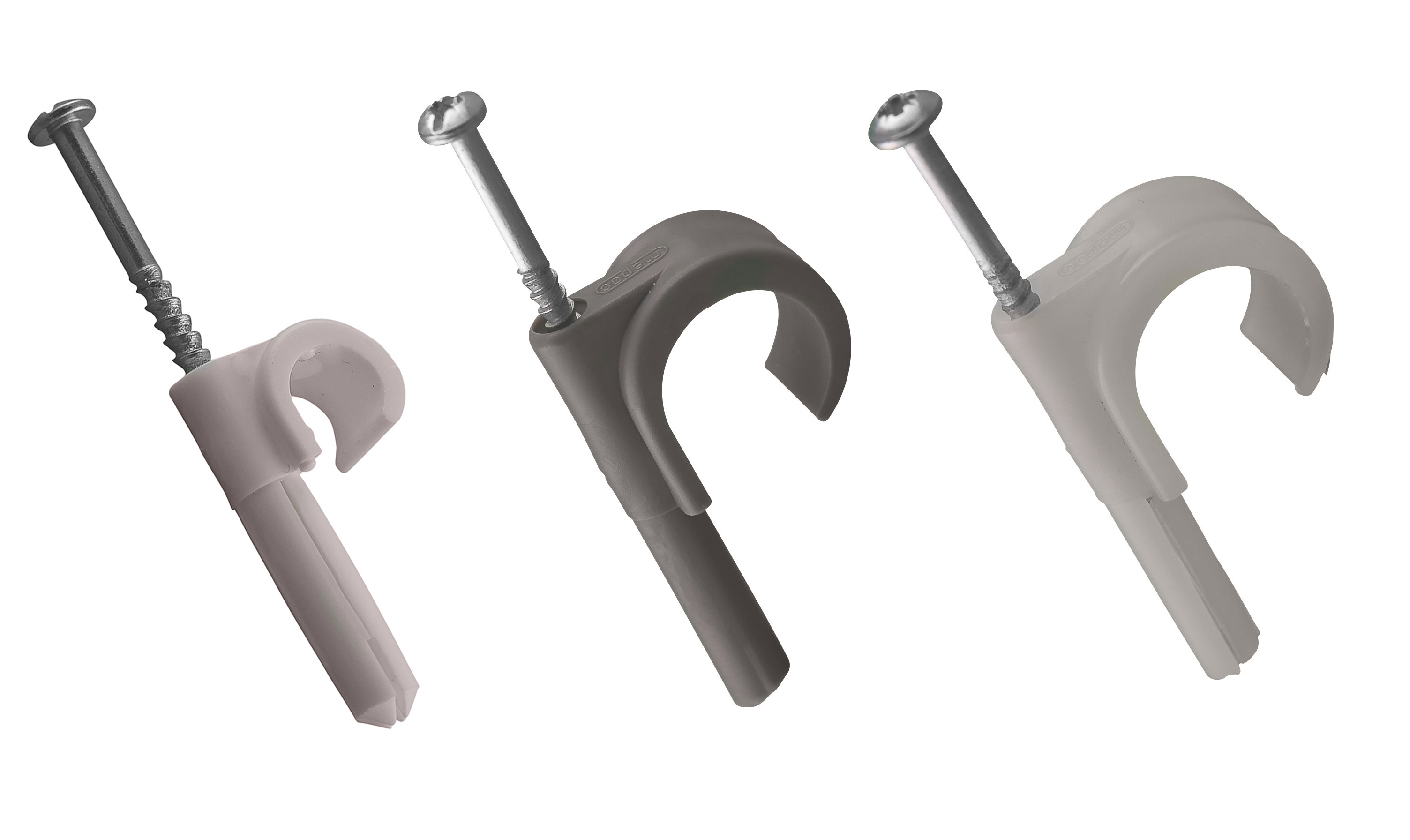

PCS-series, Plug clips with screw, single
Cable clip with plug and screw, for both Philips- and slotted screwdrivers.
Technical properties
- With screw:
- No
- Plastic sheathed:
- No
- Colour:
- No, None, Grey, White
- Model:
- Single-lobe clamp
- Material quality:
- Polyethylene (PE)
- Shape:
- Round (for round cable)
- Double model:
- No
- With nail:
- Yes
- Hardened steel nail:
- Yes
- Transparent:
- No, Yes
- Type of fastening:
- Plug-in mounting
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- No
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 6
| Product Description | Nominal diameter | Diameter | Number of cables/conduits | With distance to the wall | MOQ | Unit | Suitable for diameter | Width opening | Height opening | Nail length | Nail diameter | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plug clip, screw 8-10mm, grey, (100pcs/pack,) | 10 mm | 8-10 mm | 1 pcs | No | 1 . | pck | 8-10 mm | 8.2 mm | 8.2 mm | 37 mm | 3 mm |
Yes
|
|
|
| Plug clip, screw 8-10mm, white, (100pcs/pack) | 10 mm | 8-10 mm | 1 pcs | No | 1 . | pck | 8-10 mm | 8.2 mm | 8.2 mm | 37 mm | 3 mm |
Yes
|
|
|
| Plug clip, screw 11-15mm, grey, (100pcs/pack) | 15 mm | 11-15 mm | 1 pcs | No | 1 . | pck | 11-15 mm | 11.3 mm | 11.3 mm | 37 mm | 3 mm |
Yes
|
|
|
| Plug clip, screw 11-15mm, white, (100pcs/pack) | 15 mm | 11-15 mm | 1 pcs | No | 1 . | pck | 11-15 mm | 11.3 mm | 11.3 mm | 37 mm | 3 mm |
Yes
|
|
|
| Plug clip, screw 16-19mm, grey, (100pcs/pack, 2800pcs/box) | 19 mm | 16-19 mm | 1 pcs | No | 1 . | pck | 16-19 mm | 15.3 mm | 15.3 mm | 42 mm | 3 mm |
Yes
|
|
|
| Plug clip, screw 16-19mm, transperent, (100pcs/pack) | 19 mm | 16-19 mm | 1 pcs | No | 1 . | pck | 16-19 mm | 15.3 mm | 15.3 mm | 42 mm | 3 mm |
Yes
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
- Total: 6
Technical Properties
- Total: 6
| Product Description | With screw | Plastic sheathed | Colour | Model | Material quality | Shape | Double model | With nail | Hardened steel nail | Transparent | Type of fastening | Colour | Surface protection | Material | Halogen free | Suitable in fire resistance areas | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plug clip, screw 8-10mm, grey, (100pcs/pack,) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | No | Plug-in mounting | Grey | Untreated | Plastic | Yes | No |
Yes
|
|
|
| Plug clip, screw 8-10mm, white, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | No | Plug-in mounting | White | Untreated | Plastic | Yes | No |
Yes
|
|
|
| Plug clip, screw 11-15mm, grey, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | No | Plug-in mounting | Grey | Untreated | Plastic | Yes | No |
Yes
|
|
|
| Plug clip, screw 11-15mm, white, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | No | Plug-in mounting | White | Untreated | Plastic | Yes | No |
Yes
|
|
|
| Plug clip, screw 16-19mm, grey, (100pcs/pack, 2800pcs/box) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | No | Plug-in mounting | Grey | Untreated | Plastic | Yes | No |
Yes
|
|
|
| Plug clip, screw 16-19mm, transperent, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | Yes | Plug-in mounting | None | Untreated | Plastic | Yes | No |
Yes
|
|
|
- Total: 6
Other information
- Total: 6
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| Plug clip, screw 8-10mm, grey, (100pcs/pack,) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | PCS8/10GR |
Yes
|
|
|
| Plug clip, screw 8-10mm, white, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | PCS8/10VIT |
Yes
|
|
|
| Plug clip, screw 11-15mm, grey, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | PCS11/15GR |
Yes
|
|
|
| Plug clip, screw 11-15mm, white, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | PCS11/15VIT |
Yes
|
|
|
| Plug clip, screw 16-19mm, grey, (100pcs/pack, 2800pcs/box) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | PCS16/19GR |
Yes
|
|
|
| Plug clip, screw 16-19mm, transperent, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | PCS16/19TR |
Yes
|
|
|
