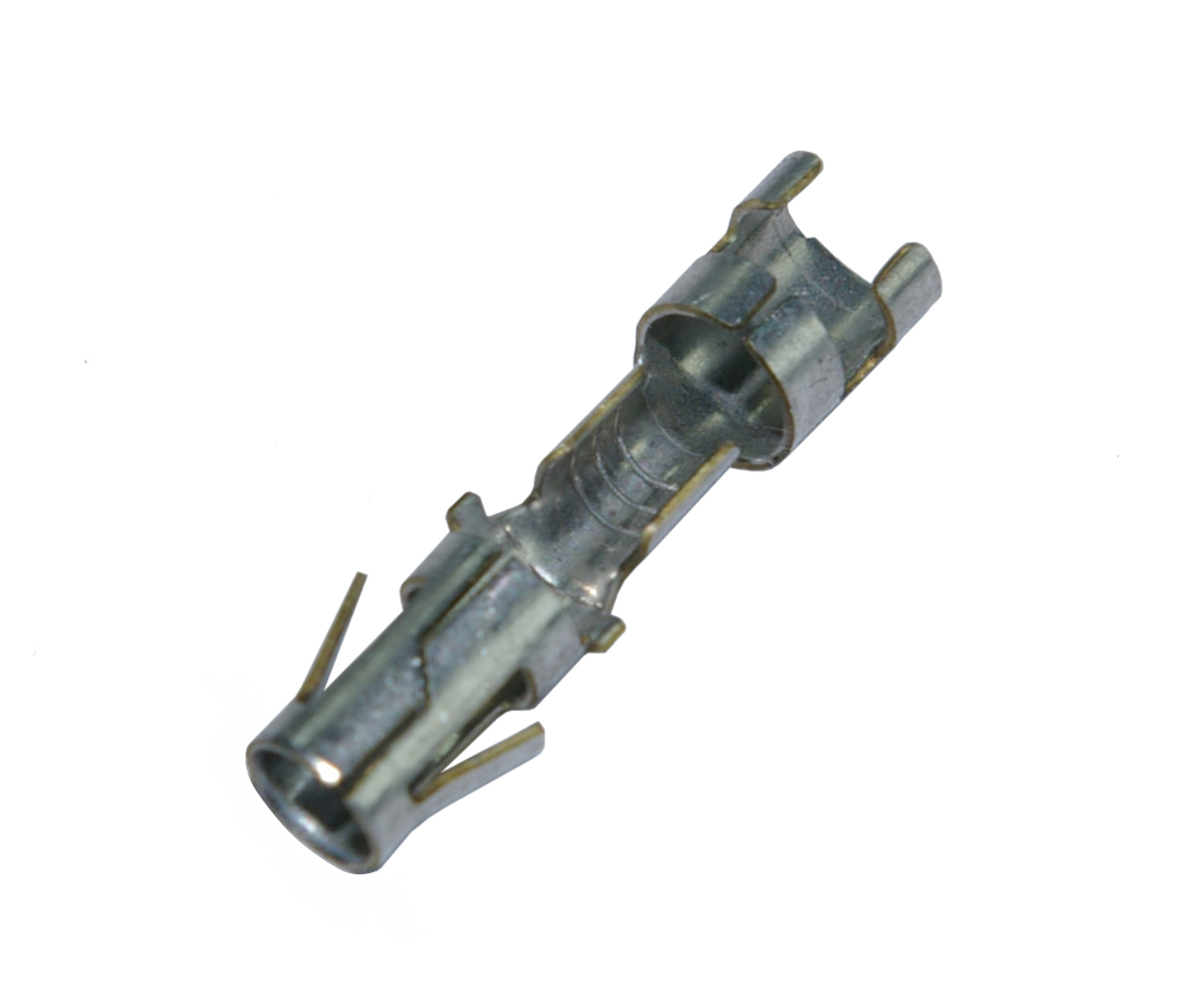

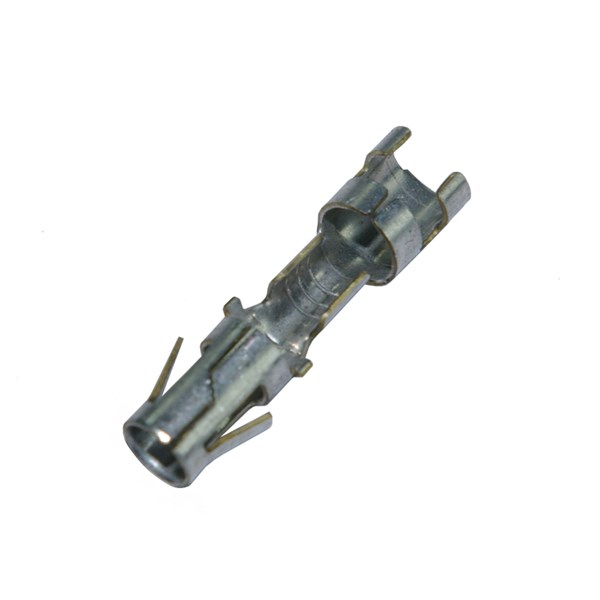

Rundstiftshylsor
Rundstiftshylsa med nabb
Material: Mässing
Ytbehandling: > 4mc Sn
Temperaturområde: Upp till 110° C
Rullpressning (open barrel)
Technical properties
- Model:
- Bushing
- Max. current (Imax):
- 24 A, 10 A, 15 A
- Insulation:
- Not isolated
- Colour insulation:
- Other
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Other
- Operating temperature:
- 110 °C
- Material:
- Bronze
- Neck type:
- Open barrel crimp
- Packaging:
- Loose piece
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 4
| Product Description | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|
| UNINSULATED BULLET FEMALE BRONZE + LOCKING LIP 0.5-1.0mm2, to 3,5mm Pin, FRAME | 100 . | pcs | 0.5-1 mm² | Other |
Yes
|
|
|
| OISOLERAD RUNDSTIFTSHYLSA BRONS + NABB, 1.5-2.5mm2, För 3,5mm Pin, RAM | 100 . | pcs | 1.5-2.5 mm² | Other |
Yes
|
|
|
| UNINSULATED BULLET FEMALE BRONZE + LOCKING LIP 1.5-2.5mm2, to 3,5mm Pin, FRAME PLUS | 100 . | pcs | 1.5-2.5 mm² | Other |
Yes
|
|
|
| UNINSULATED BULLET FEMALE BRONZE + LOCKING LIP 4.0-6.0mm2, to 3,5mm Pin, FRAME | 100 . | pcs | 4-6 mm² | Other |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
- Total: 4
Technical Properties
- Total: 4
| Product Description | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Neck type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED BULLET FEMALE BRONZE + LOCKING LIP 0.5-1.0mm2, to 3,5mm Pin, FRAME | Bushing | 10 A | Not isolated | Other | No | No | Other | 110 °C | Bronze | Open barrel crimp | Loose piece |
Yes
|
|
|
| OISOLERAD RUNDSTIFTSHYLSA BRONS + NABB, 1.5-2.5mm2, För 3,5mm Pin, RAM | Bushing | 15 A | Not isolated | Other | No | No | Other | 110 °C | Bronze | Open barrel crimp | Loose piece |
Yes
|
|
|
| UNINSULATED BULLET FEMALE BRONZE + LOCKING LIP 1.5-2.5mm2, to 3,5mm Pin, FRAME PLUS | Bushing | 15 A | Not isolated | Other | No | No | Other | 110 °C | Bronze | Open barrel crimp | Loose piece |
Yes
|
|
|
| UNINSULATED BULLET FEMALE BRONZE + LOCKING LIP 4.0-6.0mm2, to 3,5mm Pin, FRAME | Bushing | 24 A | Not isolated | Other | No | No | Other | 110 °C | Bronze | Open barrel crimp | Loose piece |
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED BULLET FEMALE BRONZE + LOCKING LIP 0.5-1.0mm2, to 3,5mm Pin, FRAME | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Bullet female | 46017.201.179 |
Yes
|
|
|
|
| OISOLERAD RUNDSTIFTSHYLSA BRONS + NABB, 1.5-2.5mm2, För 3,5mm Pin, RAM | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Bullet female | OISOLERAD RUNDSTIFTSHYLSA BRONS + NABB | 46011.201.179 |
Yes
|
|
|
| UNINSULATED BULLET FEMALE BRONZE + LOCKING LIP 1.5-2.5mm2, to 3,5mm Pin, FRAME PLUS | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Bullet female | 46036.201.179 |
Yes
|
|
|
|
| UNINSULATED BULLET FEMALE BRONZE + LOCKING LIP 4.0-6.0mm2, to 3,5mm Pin, FRAME | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Bullet female | 46012.201.179 |
Yes
|
|
|
- Total: 4
