12610.123.025

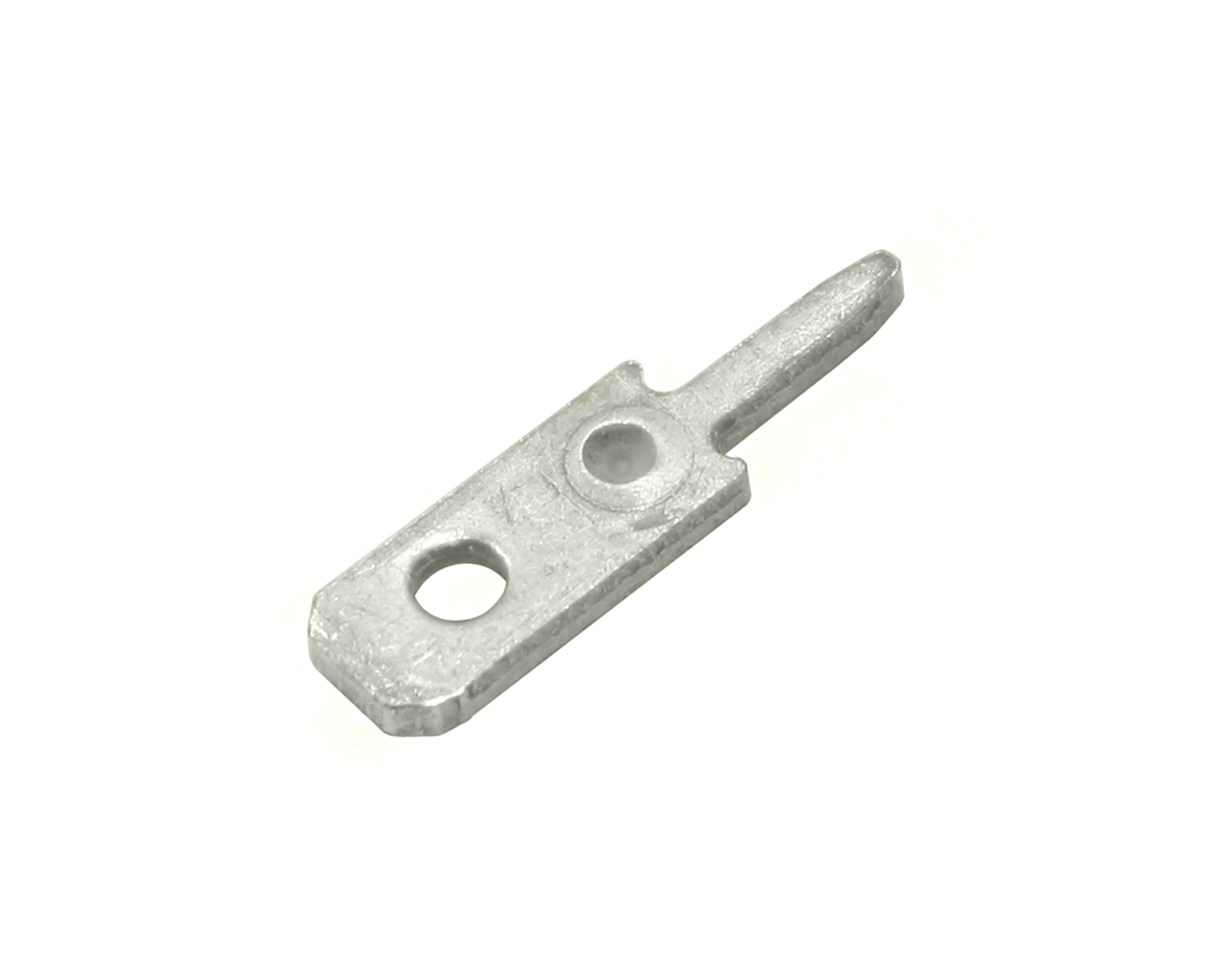

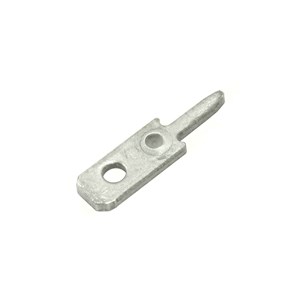

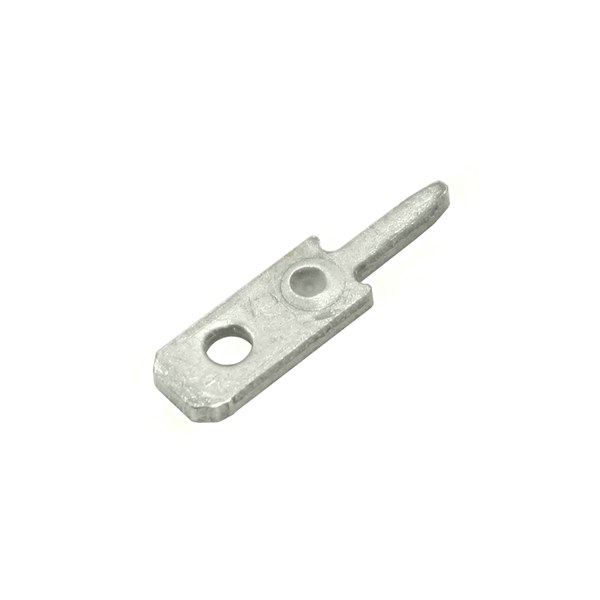

UNINSULATED TAB, CIRCUIT CARD STRAIGHT, 1x(2.8x0.8mm), 1 LS
12610.123.025
- Availability:
-
Yes
- Total: 1
Related items
Flatstift (lödning)
Rak, 1 x flatstift, 2 LS (lödstift)
Ytbehandling: > 3mc Sn
Kontaktering: Lödning
- Total: 1
Product Properties
| Model | Plug |
|---|---|
| Max. current (Imax) | 12 A |
| Insulation | Not isolated |
| Colour insulation | Other |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Other |
| Operating temperature | -40-110 °C |
| Material | Brass |
Product video

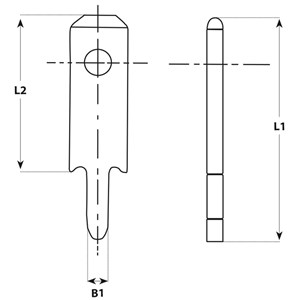

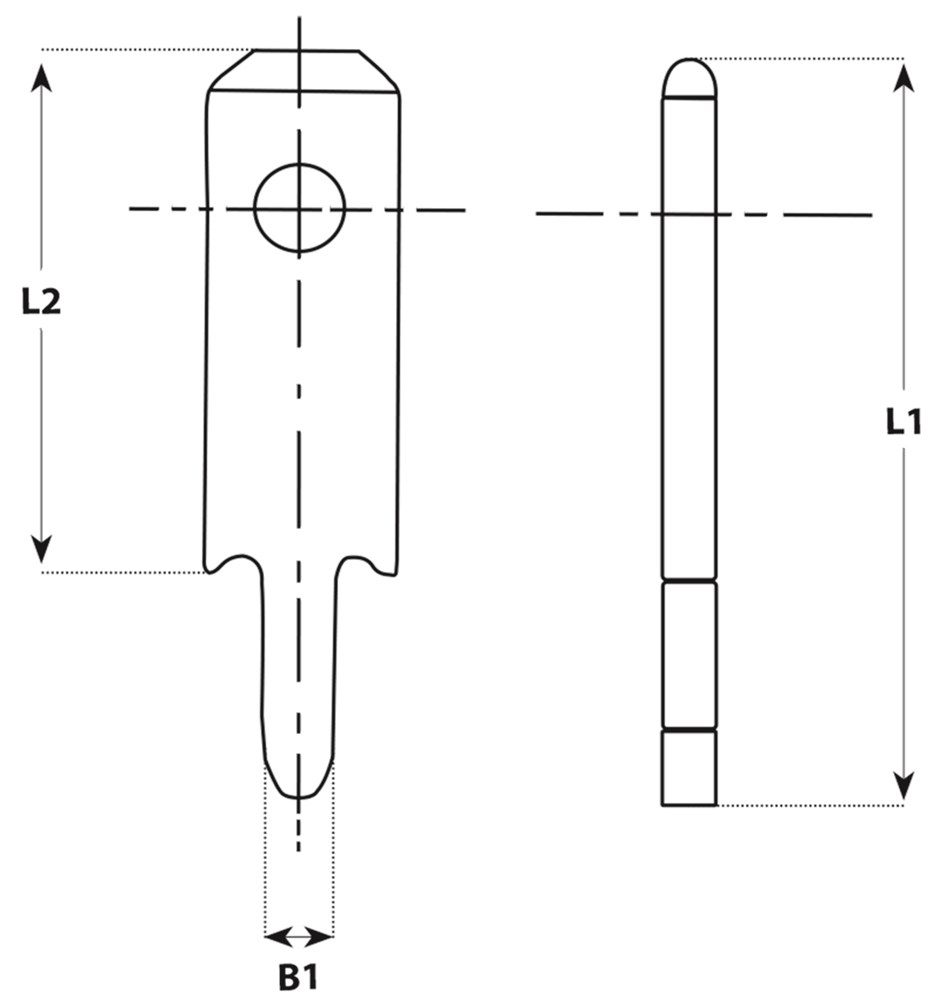

Dimensions
| B1 | 0.9 mm |
|---|---|
| L1 | 10.5 mm |
| L2 | 6.5 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 0.14-6.64 mm² |
| Plug dimensions | Flat 2.8x0.8 mm |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117611014 |
|---|---|
| Country of origin | DE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | 12610.123.025 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Compliance |
| PFOA | No PFOA |
| POPs | No POPs |
| REACH | No SVHC (Latest. 21 Jan 2025) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
Genererate statement of compliance:
Documents
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | LEAR |
| Product Group | Uninsulated Tab for soldering |
| Alternative SKU | 12610.123.025 |
