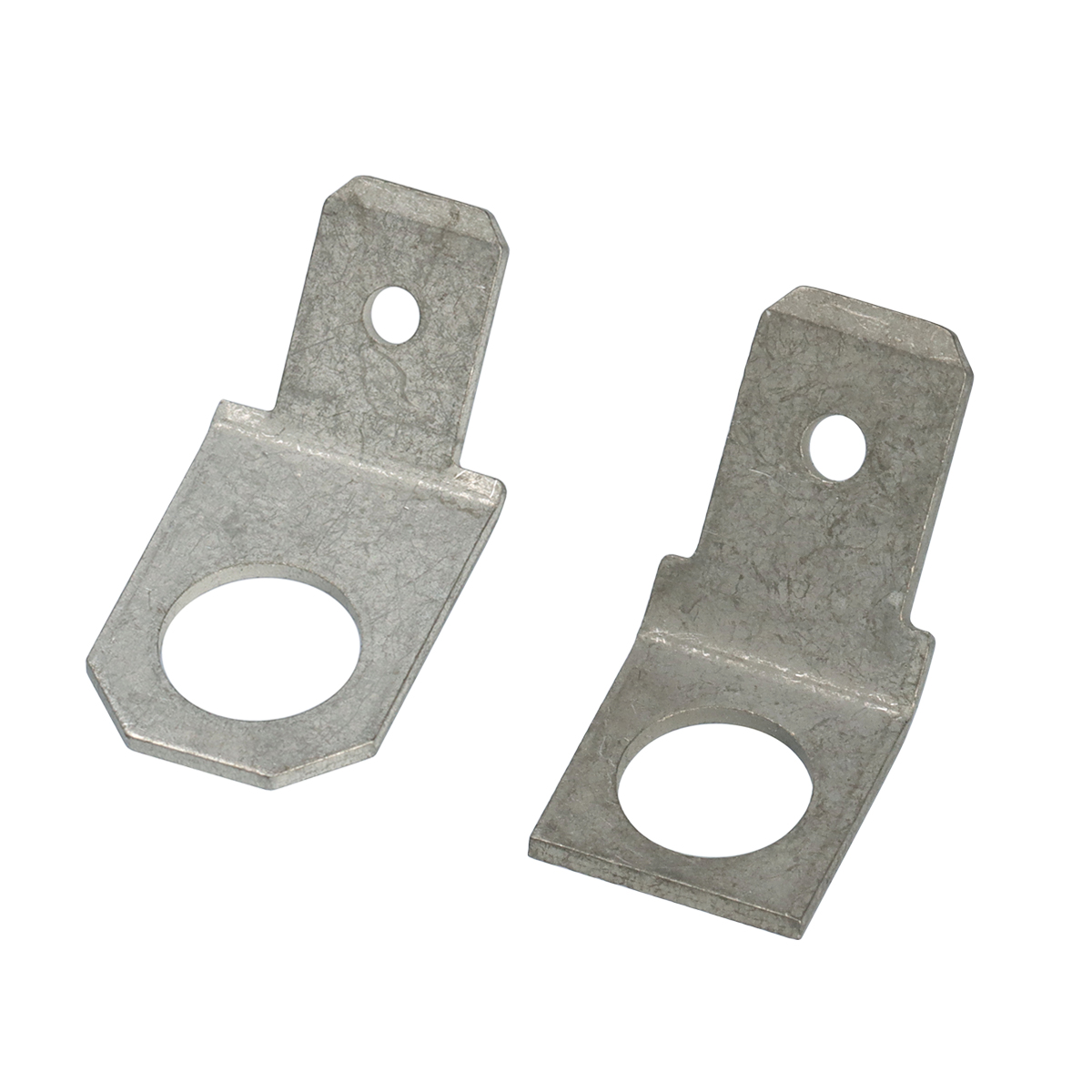

Flatstift (skruvmontage)
Enkla flatstift i 45° vinkel för skruvmontage (rektangulär platta)
Ytbehandling: > 3mc Sn
Technical properties
- Model:
- Plug
- Max. current (Imax):
- 24 A
- Insulation:
- Not isolated
- Colour insulation:
- Other
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Other
- Operating temperature:
- -40-110 °C
- Material:
- Brass
- Packaging:
- Loose piece
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
| Product Description | D2 | B1 | W° | L1 | L2 | L3 | L4 | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M6 | 6.3 mm | 10 mm | 45 ° | 17 mm | 8 mm | 8 mm | 9 mm | 100 . | pcs | 0.14-6.64 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(4.8x0.5mm), M3 | 3.8 mm | 7.7 mm | 45 ° | 16 mm | 6.5 mm | 0 mm | 7.5 mm | 100 . | pcs | 0.14-6.64 mm² | Flat 4.8x0.5 mm |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(4.8x0.8mm), M4 | 4.2 mm | 6.5 mm | 45 ° | 17 mm | 7.6 mm | 3.5 mm | 7 mm | 100 . | pcs | 0.14-6.64 mm² | Flat 4.8x0.8 mm |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M4 | 4.3 mm | 8 mm | 45 ° | 19 mm | 10.5 mm | 3.5 mm | 8.5 mm | 100 . | pcs | 0.14-6.64 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M5 | 5.3 mm | 8 mm | 45 ° | 19 mm | 8 mm | 4 mm | 8 mm | 100 . | pcs | 0.14-6.64 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | Approved according to CE | Availability | ||
|---|---|---|---|---|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M6 |
Yes
|
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(4.8x0.5mm), M3 |
|
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(4.8x0.8mm), M4 |
|
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M4 |
|
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M5 |
|
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M6 | Plug | 24 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(4.8x0.5mm), M3 | Plug | 24 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(4.8x0.8mm), M4 | Plug | 24 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M4 | Plug | 24 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M5 | Plug | 24 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M6 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for screw mounting | 17146.123.011 |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(4.8x0.5mm), M3 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for screw mounting | B0454H3 |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(4.8x0.8mm), M4 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for screw mounting | B0454H4 |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M4 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for screw mounting | B0457H4 |
Yes
|
|
|
| UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M5 | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for screw mounting | B0457H5 |
Yes
|
|
|
- Total: 5
