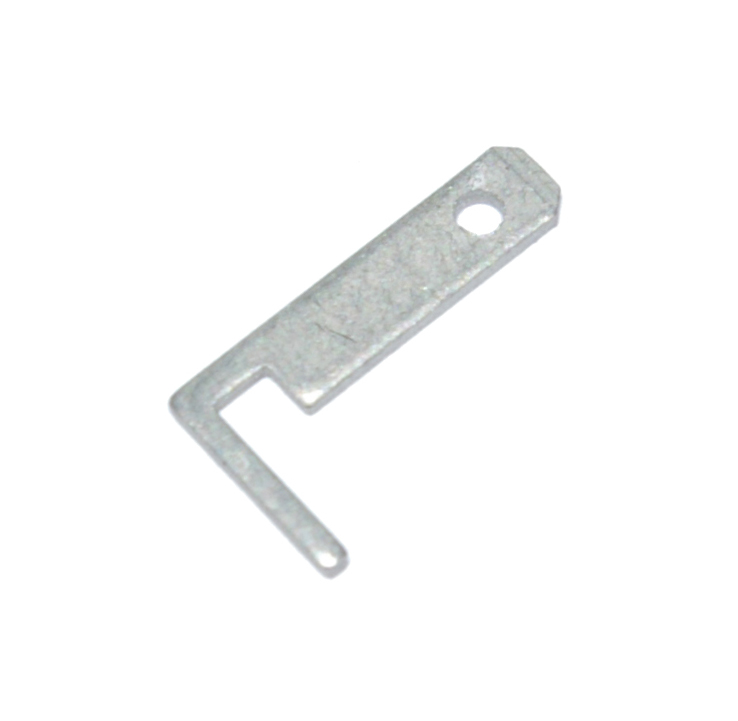

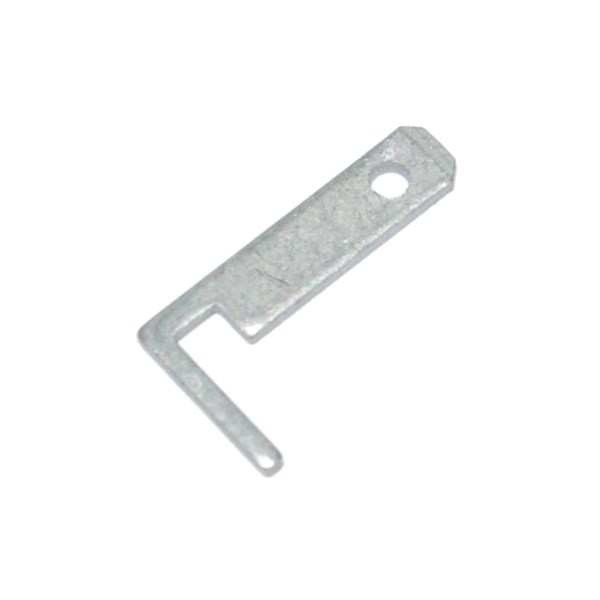

Flatstift (lödning) - 12505.123.011
90 grader, 1 x flatstift, 2 LS (lödstift)
Ytbehandling: > 3mc Sn
Kontaktering: Lödning
Technical properties
- Model:
- Plug
- Max. current (Imax):
- 12 A
- Insulation:
- Not isolated
- Colour insulation:
- Other
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Other
- Operating temperature:
- -40-110 °C
- Material:
- Brass
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|
| UNINSULATED TAB, CIRCUIT CARD 90GR, 1x(2.8x0.8mm), 1 LS | 100 . | pcs | 0.14-6.64 mm² | Flat 2.8x0.8 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| UNINSULATED TAB, CIRCUIT CARD 90GR, 1x(2.8x0.8mm), 1 LS |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED TAB, CIRCUIT CARD 90GR, 1x(2.8x0.8mm), 1 LS | Plug | 12 A | Not isolated | Other | No | No | Other | -40-110 °C | Brass | Loose piece |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| UNINSULATED TAB, CIRCUIT CARD 90GR, 1x(2.8x0.8mm), 1 LS | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Tab for soldering | 12505.123.011 |
Yes
|
|
|
