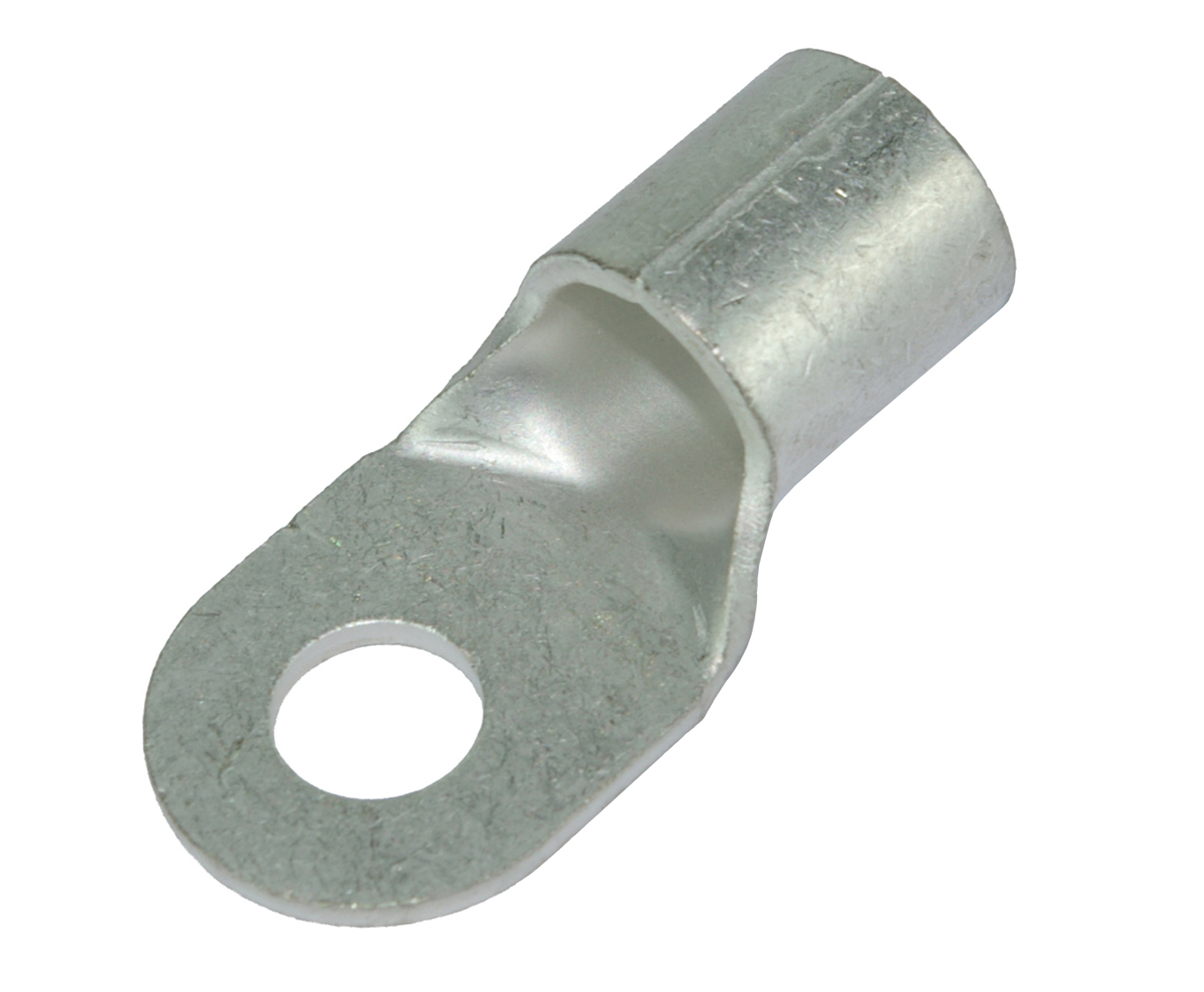

Ringkabelskor (svetsad)
R-serien
Material: Förtent koppar
Temperaturområde: Upp till 110° C
Svetsad hals
Technical properties
- Reel/roll packaging:
- No
- Max. current (Imax):
- 88 A, 115 A, 160 A, 215 A, 225 A, 255 A, 300 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes, No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-110 °C
- Material:
- Copper
- Neck type:
- Welded
- Packaging:
- Loose piece
Show more
Item List
- Total: 15
- Total: 15
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved

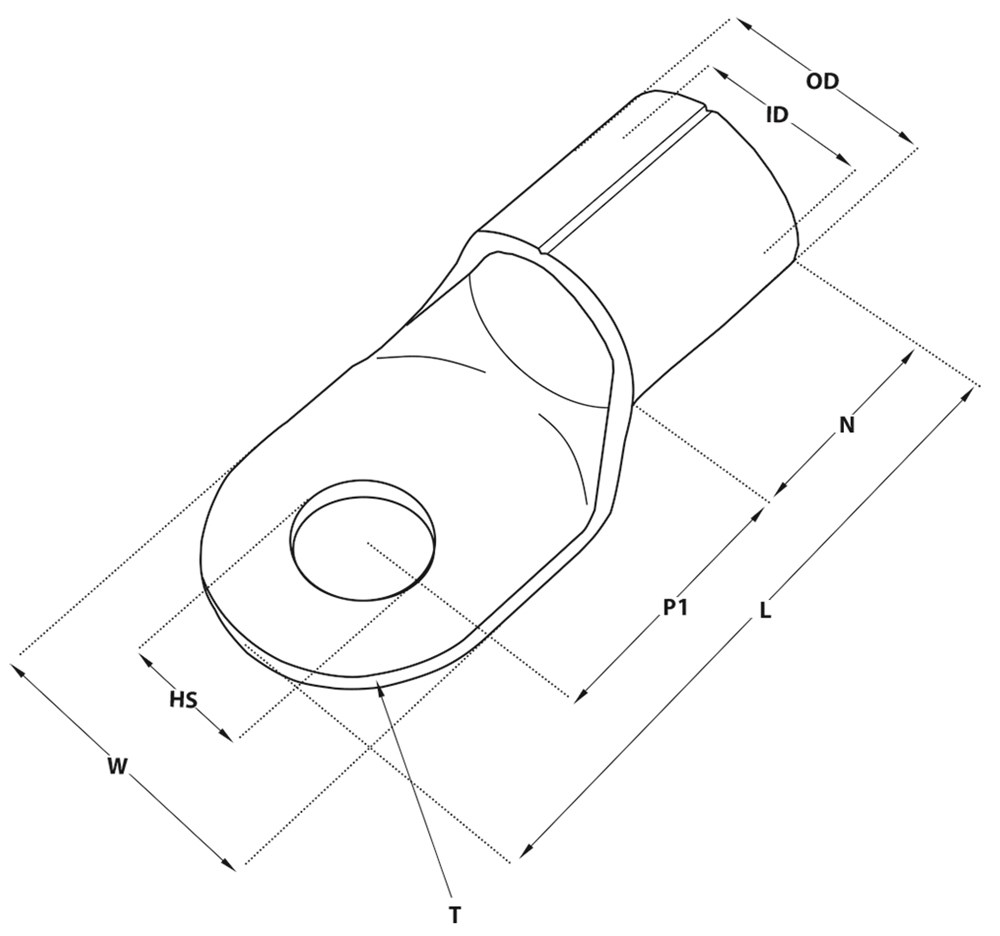

Dimensions
- Total: 15
| Product Description | HS | ID | OD | T | P1 | L | N | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 96-117mm2, M6 | 25 . | pcs | 6 . | 96-117 mm² |
No
|
|
|
||||||||
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M6, NARROW | 100 . | pcs | 6 . | 26.7-42.4 mm² |
No
|
|
|
||||||||
| UNINSULATED RING TERMINAL 10.5-16.8mm2, M5 | 5.3 mm | 5.8 mm | 9 mm | 1.5 mm | 13.3 mm | 29.8 mm | 10.5 mm | 12 mm | 100 . | pcs | 5 . | 10.5-16.8 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 10.5-16.8mm2, M8 | 8.4 mm | 5.8 mm | 9 mm | 1.5 mm | 14.5 mm | 32.8 mm | 10.5 mm | 16 mm | 100 . | pcs | 8 . | 10.5-16.8 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M5 | 5.3 mm | 7.7 mm | 11.5 mm | 1.8 mm | 13.5 mm | 33.7 mm | 12 mm | 16.5 mm | 100 . | pcs | 5 . | 16.8-26.7 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M6 | 6.4 mm | 7.7 mm | 11.5 mm | 1.8 mm | 13.5 mm | 33.7 mm | 12 mm | 16.5 mm | 100 . | pcs | 6 . | 16.8-26.7 mm² |
No
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M8 | 8.4 mm | 7.7 mm | 11.5 mm | 1.8 mm | 13.5 mm | 33.7 mm | 12 mm | 16.5 mm | 100 . | pcs | 8 . | 16.8-26.7 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M10 | 10.5 mm | 7.7 mm | 11.5 mm | 1.8 mm | 16 mm | 36.7 mm | 12 mm | 17.5 mm | 100 . | pcs | 10 . | 16.8-26.7 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M6 | 6.4 mm | 9.4 mm | 13.3 mm | 1.8 mm | 17.7 mm | 42.7 mm | 14 mm | 22 mm | 100 . | pcs | 6 . | 26.7-42.4 mm² |
No
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M8 | 8.4 mm | 9.4 mm | 13.3 mm | 1.8 mm | 17.7 mm | 42.7 mm | 14 mm | 22 mm | 100 . | pcs | 8 . | 26.7-42.4 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M10 | 10.5 mm | 9.4 mm | 13.3 mm | 1.8 mm | 17.7 mm | 42.7 mm | 14 mm | 22 mm | 100 . | pcs | 10 . | 26.7-42.4 mm² |
No
|
|
|
| UNINSULATED RING TERMINAL 42.4-60.6mm2, M8 | 8.4 mm | 11.4 mm | 15.5 mm | 2 mm | 20.7 mm | 49.7 mm | 18 mm | 22 mm | 50 . | pcs | 8 . | 42.4-60.6 mm² |
No
|
|
|
| UNINSULATED RING TERMINAL 60.6-76.3mm2, M8 | 8.4 mm | 13.3 mm | 17.5 mm | 2 mm | 20 mm | 51 mm | 19 mm | 24 mm | 50 . | pcs | 8 . | 60.6-76.3 mm² |
No
|
|
|
| UNINSULATED RING TERMINAL 60.6-76.3mm2, M10 | 10.5 mm | 13.3 mm | 17.5 mm | 2 mm | 20 mm | 51 mm | 19 mm | 24 mm | 100 . | pcs | 10 . | 60.6-76.3 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 76.3-96.3mm2, M12 | 13 mm | 14.5 mm | 19.5 mm | 2.3 mm | 20.7 mm | 54.2 mm | 20 mm | 27 mm | 25 . | pcs | 12 . | 76.3-96.3 mm² |
No
|
|
|
- Total: 15
Similar Options
Approvals
- Total: 15
| Product Description | UL-File No. | With approval according to UL | Availability | ||
|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 96-117mm2, M6 | E42024 |
|
No
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M6, NARROW |
No
|
|
|
||
| UNINSULATED RING TERMINAL 10.5-16.8mm2, M5 | E42024 |
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 10.5-16.8mm2, M8 | E42024 |
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M5 | E42024 |
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M6 | E42024 |
|
No
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M8 | E42024 |
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M10 | E42024 |
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M6 | E42024 |
|
No
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M8 | E42024 |
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M10 | E42024 |
|
No
|
|
|
| UNINSULATED RING TERMINAL 42.4-60.6mm2, M8 | E42024 |
|
No
|
|
|
| UNINSULATED RING TERMINAL 60.6-76.3mm2, M8 | E42024 |
|
No
|
|
|
| UNINSULATED RING TERMINAL 60.6-76.3mm2, M10 | E42024 |
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 76.3-96.3mm2, M12 |
No
|
|
|
- Total: 15
Technical Properties
- Total: 15
| Product Description | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Operating temperature | Material | Neck type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 96-117mm2, M6 | No | 300 A | Ring shape | No | None | Other | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Copper |
No
|
|
|
|||
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M6, NARROW | No | 160 A | Ring shape | No | None | Other | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Copper |
No
|
|
|
|||
| UNINSULATED RING TERMINAL 10.5-16.8mm2, M5 | No | 88 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
|
| UNINSULATED RING TERMINAL 10.5-16.8mm2, M8 | No | 88 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M5 | No | 115 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M6 | No | 115 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
No
|
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M8 | No | 115 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M10 | No | 115 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M6 | No | 160 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
No
|
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M8 | No | 160 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M10 | No | 160 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
No
|
|
|
|
| UNINSULATED RING TERMINAL 42.4-60.6mm2, M8 | No | 215 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
No
|
|
|
|
| UNINSULATED RING TERMINAL 60.6-76.3mm2, M8 | No | 225 A | Ring shape | No | None | Other | Short | No | Yes | Yes | No | No | Yes | No | Tinned | 110 °C | Copper | Welded | Loose piece |
No
|
|
|
| UNINSULATED RING TERMINAL 60.6-76.3mm2, M10 | No | 225 A | Ring shape | No | None | Other | Short | No | Yes | Yes | No | No | Yes | No | Tinned | 110 °C | Copper | Welded | Loose piece |
Yes
|
|
|
| UNINSULATED RING TERMINAL 76.3-96.3mm2, M12 | No | 255 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
No
|
|
|
- Total: 15
Other information
- Total: 15
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 96-117mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 3149100 | 100-6 |
No
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M6, NARROW | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | OISOLERAD RINGKABELSKO | 38-6S |
No
|
|
|
| UNINSULATED RING TERMINAL 10.5-16.8mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 2024500 | 14-5 |
Yes
|
|
|
| UNINSULATED RING TERMINAL 10.5-16.8mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 2028500 | 14-8 |
Yes
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 2047100 | 22-5 |
Yes
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 2048500 | 22-6 |
No
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 2049500 | 22-8 |
Yes
|
|
|
| UNINSULATED RING TERMINAL 16.8-26.7mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 2050500 | 22-10 |
Yes
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 2071100 | 38-6 |
No
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 2072530 | 38-8 |
Yes
|
|
|
| UNINSULATED RING TERMINAL 26.7-42.4mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 2073500 | 38-10 |
No
|
|
|
| UNINSULATED RING TERMINAL 42.4-60.6mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 3090500 | 60-8 |
No
|
|
|
| UNINSULATED RING TERMINAL 60.6-76.3mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 03110100 , 70-8 | 70-8UL |
No
|
|
|
| UNINSULATED RING TERMINAL 60.6-76.3mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 03111100 , 70-10 | 70-10UL |
Yes
|
|
|
| UNINSULATED RING TERMINAL 76.3-96.3mm2, M12 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Welded | 3132500 | 80-12 |
No
|
|
|
- Total: 15
