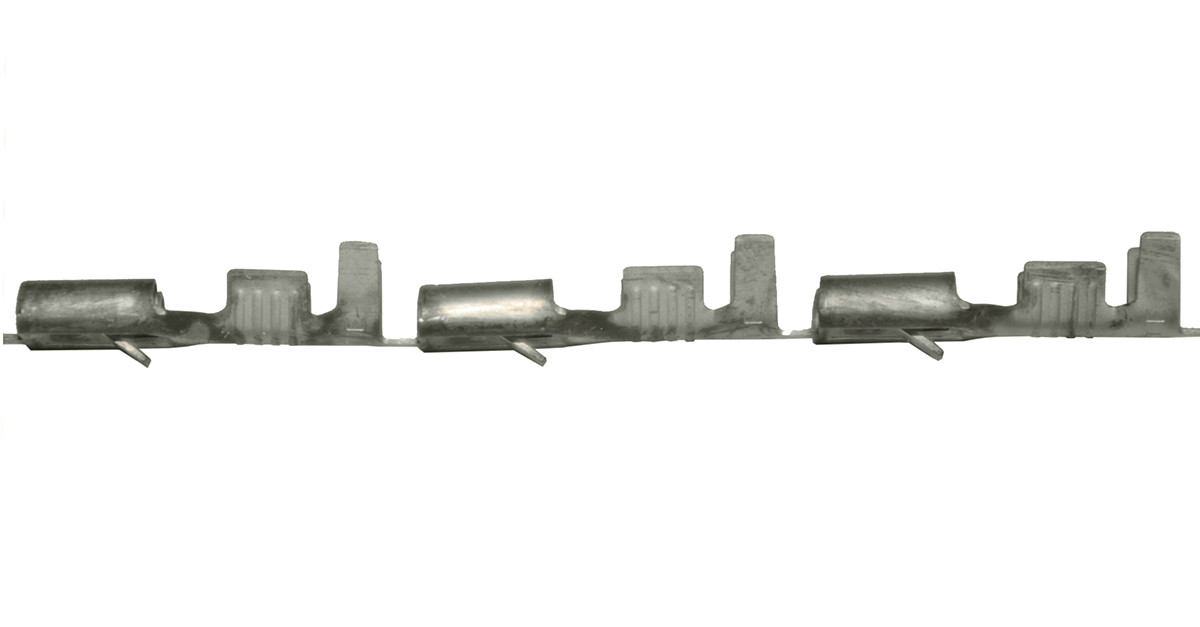

Flatstiftshylsor med nabb - Bandvara
Material:
26365.123.211: Förtent mässing
26818.213.178: Förtent brons
26840.123.211: Förtent mässing
STI x.xT-250D: Förtent mässing med " dimple"
STI x.xT-250N: Förtent mässing utan "dimple"
BB 410 FL: Förtent mässing
Tjocklek: t
Temperaturområde: -10 - 110°C
Technical properties
- Model:
- Bushing
- Max. current (Imax):
- 10 A, 15 A
- Insulation:
- Not isolated
- Colour insulation:
- Other
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Other
- Operating temperature:
- -10-110 °C
- Material:
- Brass
- Neck type:
- Open barrel crimp
Show more
Item List
- Total: 3
- Total: 3
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved

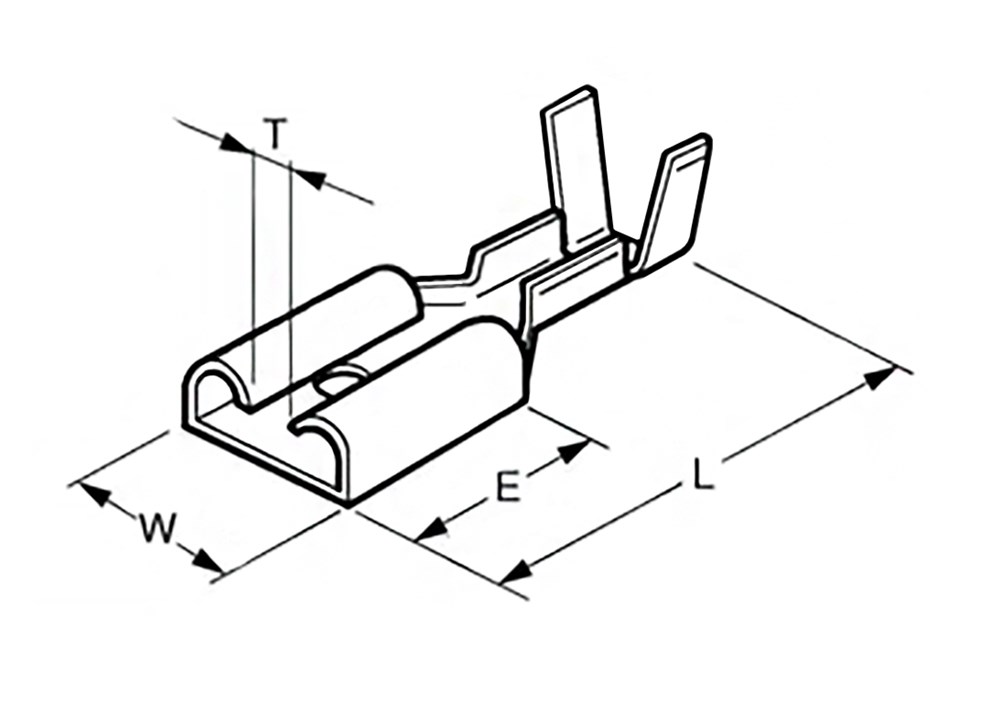

Dimensions
- Total: 3
| Product Description | E | T | L | W | MOQ | Unit | Nominal cross section | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RECEPTACLE + LOCKING LIP REEL, BB 409 FL, 0.5-1.0mm2, 6.3x0.8mm | 7.6 mm | 1.5 mm | 20 mm | 7.4 mm | 5000 . | pcs | 0.5-1 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP REEL, BB 410 FL, 1.0-2.5mm2, 6.3x0.8mm | 7.6 mm | 1.5 mm | 20 mm | 7.4 mm | 4000 . | pcs | 1-2.5 mm² | Flat 6.3x0.8 mm |
No
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP REEL, BB 2507 FL, 1.0-2.5mm2, 6.3x0.8mm | 7.6 mm | 1.5 mm | 20 mm | 7.4 mm | 4000 . | pcs | 1-2.5 mm² | Flat 6.3x0.8 mm |
Yes
|
|
|
- Total: 3
Approvals
- Total: 3
| Product Description | UL-File No. | With approval according to UL | Availability | ||
|---|---|---|---|---|---|
| UNINSULATED RECEPTACLE + LOCKING LIP REEL, BB 409 FL, 0.5-1.0mm2, 6.3x0.8mm | E70188 |
|
Yes
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP REEL, BB 410 FL, 1.0-2.5mm2, 6.3x0.8mm | E70188 |
|
No
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP REEL, BB 2507 FL, 1.0-2.5mm2, 6.3x0.8mm |
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Operating temperature | Material | Neck type | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RECEPTACLE + LOCKING LIP REEL, BB 409 FL, 0.5-1.0mm2, 6.3x0.8mm | Bushing | 10 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP REEL, BB 410 FL, 1.0-2.5mm2, 6.3x0.8mm | Bushing | 15 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp |
No
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP REEL, BB 2507 FL, 1.0-2.5mm2, 6.3x0.8mm | Bushing | 15 A | Not isolated | Other | No | No | Other | -10-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RECEPTACLE + LOCKING LIP REEL, BB 409 FL, 0.5-1.0mm2, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Receptacle - Reel | 66540200 , STI-1.0T-250D | STI1.0T-250D |
Yes
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP REEL, BB 410 FL, 1.0-2.5mm2, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Receptacle - Reel | 66584800 , STI-2.5T-250D | STI2.5T-250D |
No
|
|
|
| UNINSULATED RECEPTACLE + LOCKING LIP REEL, BB 2507 FL, 1.0-2.5mm2, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Uninsulated Receptacle - Reel | 66540400 , STI-2.5T-250N | STI2.5T-250N |
Yes
|
|
|
- Total: 3
