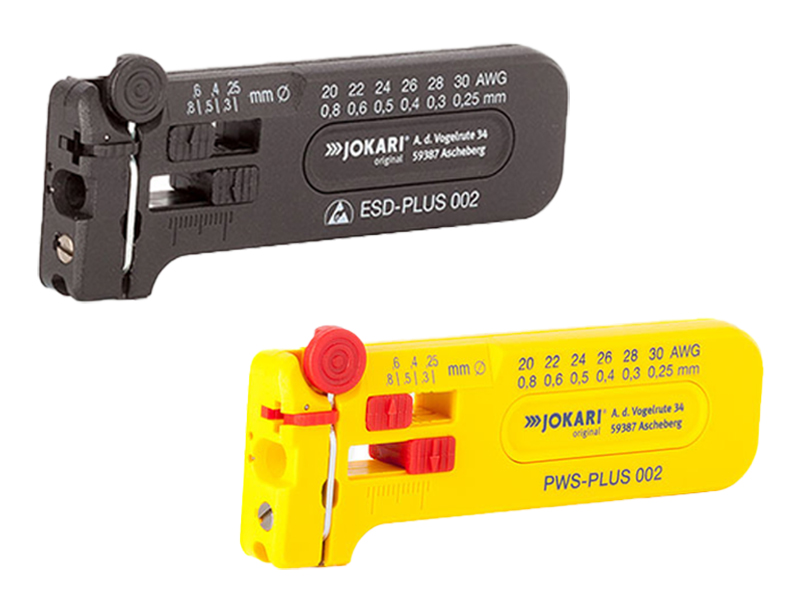

Micro-precision stripping tool ESD-PLUS
Ideal for electronics and IT applications. Adjustable stripping with length stopper and integrated cutting function for cables of up to 1.0 mm. made from special dissipative thermoplastic material.
Technical properties
- Depth of notch adjustable:
- Yes
- Longitudinal section:
- No
- Round edge:
- Yes
- Spiral cut:
- No
- Exchangeable knives:
- No
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 6
| Product Description | Max. AWG-size | Min. AWG-size | Width | Height | Weight | Strip range diameter | Strip range AWG | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Micro-precision stripping tool, ESD Ø=0.12-0.4mm, AWG 36-26 | 20 | Other | 42 mm | 14 mm | 30 g | 0.12-0.4 mm | 36-20 . | 1 . | pcs | 102 mm |
No
|
|
|
| Micro-precision stripping tool, ESD Ø=0.25-0.8mm, AWG 30-20 | 20 | Other | 42 mm | 14 mm | 30 g | 0.25-0.8 mm | 30-20 . | 1 . | pcs | 102 mm |
No
|
|
|
| Micro-precision stripping tool, ESD Ø=0.3-1mm, AWG 28-18 | Other | Other | 42 mm | 14 mm | 30 g | 0.3-1 mm | 28-19 . | 1 . | pcs | 102 mm |
No
|
|
|
| Micro-precision stripping tool Ø=0.12-0.4mm, AWG 36-26 | 20 | Other | 42 mm | 14 mm | 35 g | 0.12-0.4 mm | 36-20 . | 1 . | pcs | 102 mm |
No
|
|
|
| Micro-precision stripping tool Ø=0.25-0.8mm, AWG 30-20 | 20 | Other | 42 mm | 14 mm | 35 g | 0.25-0.8 mm | 30-20 . | 1 . | pcs | 102 mm |
No
|
|
|
| Micro-precision stripping tool Ø=0.3-1mm, AWG 28-18 | Other | Other | 42 mm | 14 mm | 35 g | 0.3-1 mm | 28-19 . | 1 . | pcs | 102 mm |
No
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
- Total: 6
Technical Properties
- Total: 6
| Product Description | Depth of notch adjustable | Longitudinal section | Round edge | Spiral cut | Exchangeable knives | Availability | ||
|---|---|---|---|---|---|---|---|---|
| Micro-precision stripping tool, ESD Ø=0.12-0.4mm, AWG 36-26 | Yes | No | Yes | No | No |
No
|
|
|
| Micro-precision stripping tool, ESD Ø=0.25-0.8mm, AWG 30-20 | Yes | No | Yes | No | No |
No
|
|
|
| Micro-precision stripping tool, ESD Ø=0.3-1mm, AWG 28-18 | Yes | No | Yes | No | No |
No
|
|
|
| Micro-precision stripping tool Ø=0.12-0.4mm, AWG 36-26 | Yes | No | Yes | No | No |
No
|
|
|
| Micro-precision stripping tool Ø=0.25-0.8mm, AWG 30-20 | Yes | No | Yes | No | No |
No
|
|
|
| Micro-precision stripping tool Ø=0.3-1mm, AWG 28-18 | Yes | No | Yes | No | No |
No
|
|
|
- Total: 6
Other information
- Total: 6
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| Micro-precision stripping tool, ESD Ø=0.12-0.4mm, AWG 36-26 | EC000163 - Cable stripping tool | 9.0 |
|
Cable Stripping Tool | 40027 | ESD-PLUS001 |
No
|
|
|
| Micro-precision stripping tool, ESD Ø=0.25-0.8mm, AWG 30-20 | EC000163 - Cable stripping tool | 9.0 |
|
Cable Stripping Tool | 40028 | ESD-PLUS002 |
No
|
|
|
| Micro-precision stripping tool, ESD Ø=0.3-1mm, AWG 28-18 | EC000163 - Cable stripping tool | 9.0 |
|
Cable Stripping Tool | 40029 | ESD-PLUS003 |
No
|
|
|
| Micro-precision stripping tool Ø=0.12-0.4mm, AWG 36-26 | EC000163 - Cable stripping tool | 9.0 |
|
Cable Stripping Tool | 40024 | PWS-PLUS001 |
No
|
|
|
| Micro-precision stripping tool Ø=0.25-0.8mm, AWG 30-20 | EC000163 - Cable stripping tool | 9.0 |
|
Cable Stripping Tool | 40025 | PWS-PLUS002 |
No
|
|
|
| Micro-precision stripping tool Ø=0.3-1mm, AWG 28-18 | EC000163 - Cable stripping tool | 9.0 |
|
Cable Stripping Tool | 40026 | PWS-PLUS003 |
No
|
|
|
- Total: 6
