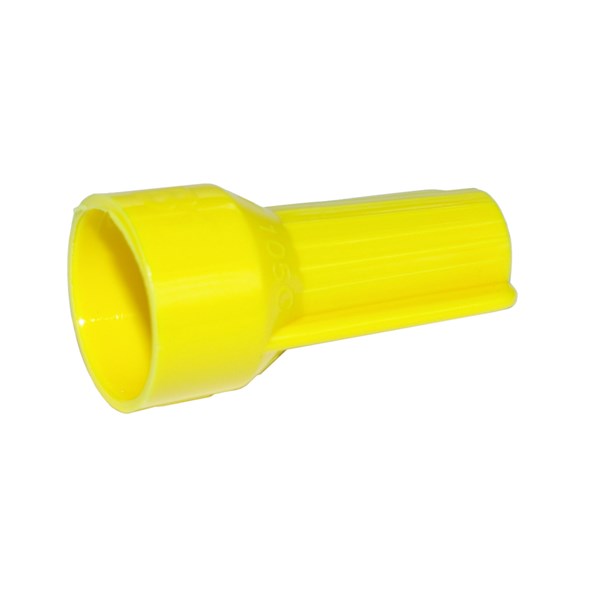

Toppskarvar, skruvtyp
Gängade toppskarvar
Kablarnas skalade ändar skruvas in och ihop för kontaktering.
Spänning: 600 V
Temperatur: 105º C
Technical properties
- Number of cores:
- 2-3 .
- Colour:
- Yellow, Red
- Operating temperature:
- -60-105 °C
- Connector type:
- Toppskarv, skruvbar
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | Core cross section | Conductor diameter | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|
| TWIST-ON WIRE CONNECTOR YELLOW, 0.325-5.27mm2 (AWG 2 x18 - 3 x12) | 0.325-5.27 mm² | 1-3 mm | 100 . | pcs |
Yes
|
|
|
| TWIST-ON WIRE CONNECTOR RED, 0.325-8.35mm2 (AWG 2 x18 - 5 x12) | 0.325-8.35 mm² | 1-4 mm | 100 . | pcs |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| TWIST-ON WIRE CONNECTOR YELLOW, 0.325-5.27mm2 (AWG 2 x18 - 3 x12) |
Yes
|
|
|
| TWIST-ON WIRE CONNECTOR RED, 0.325-8.35mm2 (AWG 2 x18 - 5 x12) |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Number of cores | Colour | Operating temperature | Connector type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|
| TWIST-ON WIRE CONNECTOR YELLOW, 0.325-5.27mm2 (AWG 2 x18 - 3 x12) | 2-3 . | Yellow | -60-105 °C | Toppskarv, skruvbar | Loose piece |
Yes
|
|
|
| TWIST-ON WIRE CONNECTOR RED, 0.325-8.35mm2 (AWG 2 x18 - 5 x12) | 2-5 . | Red | -60-105 °C | Toppskarv, skruvbar | Loose piece |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| TWIST-ON WIRE CONNECTOR YELLOW, 0.325-5.27mm2 (AWG 2 x18 - 3 x12) | EC002319 - Wire connector | 9.0 |
|
Twist-On wire connectors | E1440842 ENR2023V | B1-1N |
Yes
|
|
|
| TWIST-ON WIRE CONNECTOR RED, 0.325-8.35mm2 (AWG 2 x18 - 5 x12) | EC002319 - Wire connector | 9.0 |
|
Twist-On wire connectors | E1440852 ENR2023V | B2-1N |
Yes
|
|
|
- Total: 2
