360 view
30-1052

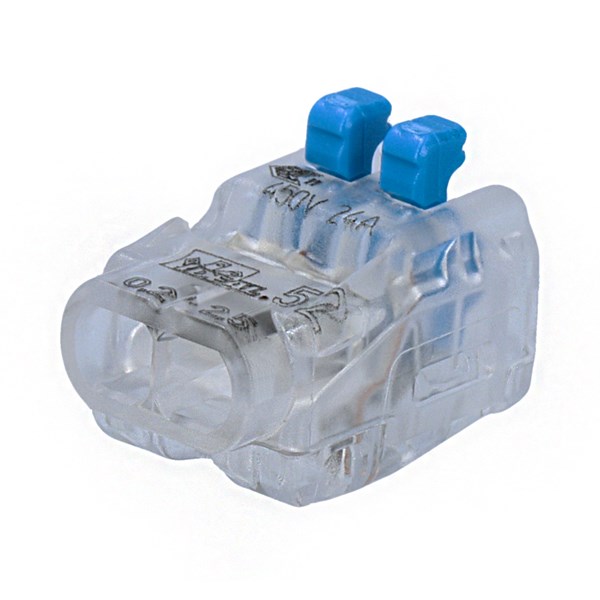

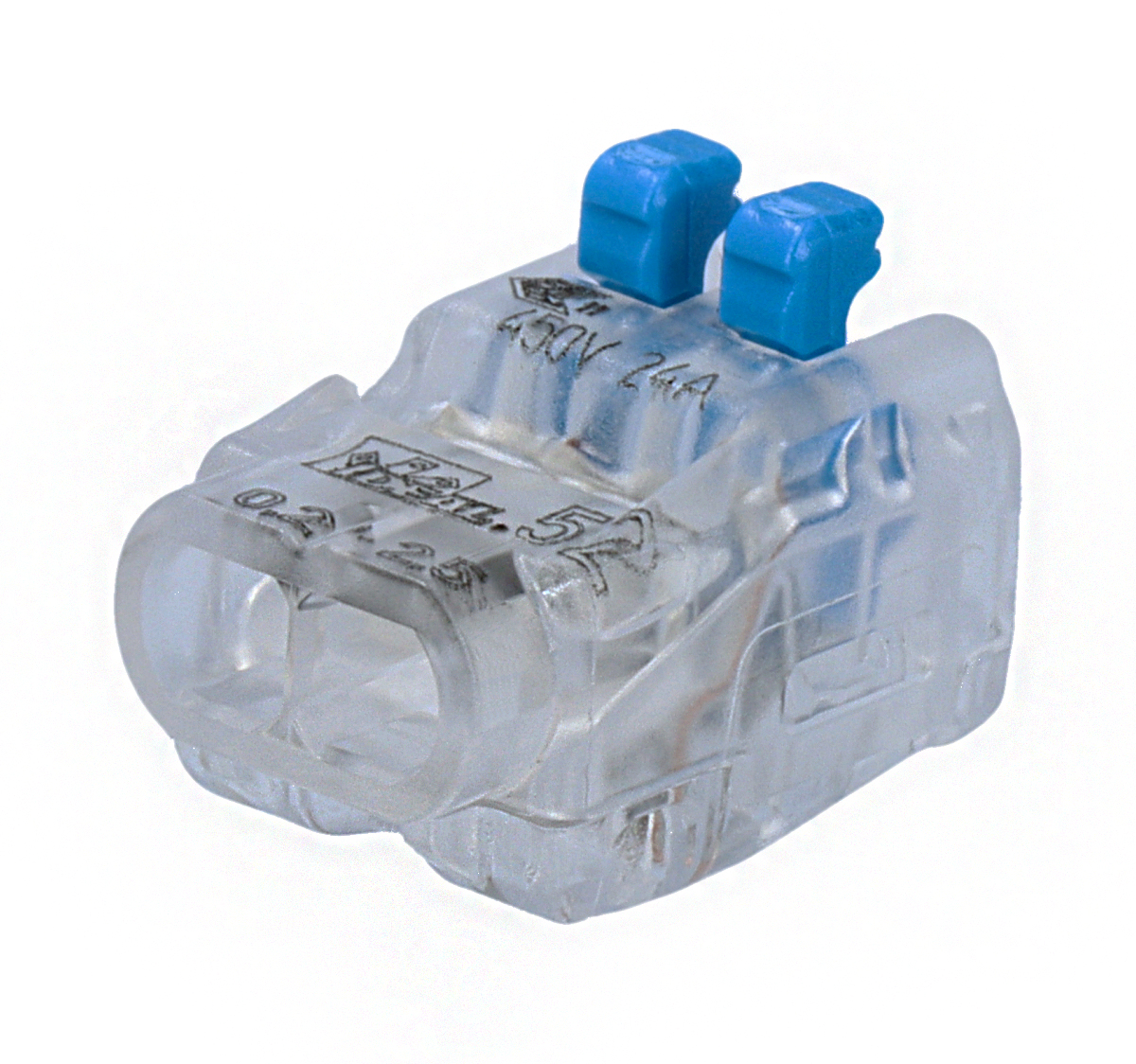

PUSH-IN CONNECTOR, 2-POL BLUE, 0.2-2.5mm2, RELEASABLE, 40/PACK
30-1052
- Availability:
-
Yes
- Total: 1
Related items

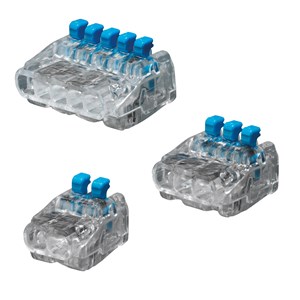

Öppningsbara Toppklämmor
Kabelklämmor för både solid och flertrådig kabel.
Genomskinligt skal för lätt inspektion av koppling. Inget verktyg behövs för montering av kabel. Solida ledare kan föras in även när klämman är stängd.
Spänning: 450 V
Ström: 24A
Temperatur: 120° C
Kabelarea 0.2-2.5 mm²
- Total: 1
Product Properties
| Nominal voltage | 450 V |
|---|---|
| Nominal current | 24 A |
| Transparent | Yes |
| Number of clamp positions | 2 . |
| With operation lever | Yes |
| Suitable for solid core | Yes |
| Suitable for flexible core | Yes |
| Suitable for multi-wire core | Yes |
| Colour | Blue |
| Operating temperature | -60-120 °C |
| Connector type | Toppklämma, öppningsbar |
| Packaging | Carton (box), Loose piece |
Dimensions
| Conductor cross section flexible (fine-strand) with cable end sleeve | 0.2-2.5 mm² |
|---|---|
| Conductor cross section solid (solid, stranded) | 0.2-2.5 mm² |
| MOQ | 40 . |
| Unit | pcs |
| Nominal cross section | 0.2-2.5 mm² |
| AWG-range | 20-12 . |
| Nominal voltage | 450 V |
Logistics
| Barcode | 733117614934 |
|---|---|
| Country of origin | US |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 40 . |
| Packaging | Carton (box), Loose piece |
| Stock code | 30-1052 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000446 - Screwless terminal |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | IDEAL |
| Product Group | Terminal Blocks |
| Search Description | BLACKFRIDAYCONSUMABLES |
| Alternative SKU | 30-1052 |
Compliance
| REACH | No SVHC (224 Subs. 10 June 2022) |
|---|---|
| RoHS | N/A |
