Metal

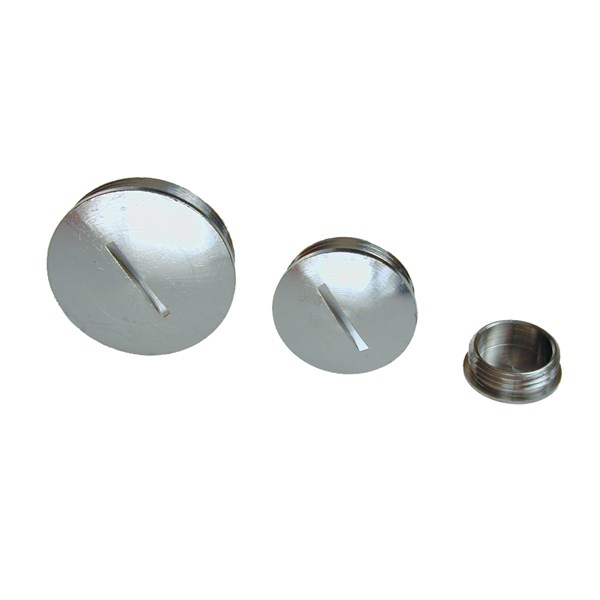

Plug MS V-N-Ms-SD
Material:Nickel-plated brass
Material o-ring: NBR
Temperature range:-40° C till +80°C
Protection class: IP 68 - 10bar/30min
Technical properties
- Pressure-compensating:
- No
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- No
- Explosion-tested version:
- No
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Nickel
- Surface protection:
- Nickel-plated
- Operating temperature:
- -40-80 °C
- Material:
- Metal
- Halogen free:
- N/A
Show more
Item List
- Total: 8
- Total: 8
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 8
| Product Description | MOQ | Unit | Nominal thread size metric/PG | Pitch thread | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|
| PLUG MS, O-RING M40 | 25 . | pcs | 40 . | 0-1.5 mm | N/A |
Yes
|
|
|
| PLUG MS, O-RING M12 | 100 . | pcs | 12 . | 0-1.5 mm | N/A |
No
|
|
|
| PLUG MS, O-RING M16 | 100 . | pcs | 16 . | 0-1.5 mm | N/A |
Yes
|
|
|
| PLUG MS, O-RING M25 | 100 . | pcs | 25 . | 0-1.5 mm | N/A |
Yes
|
|
|
| PLUG MS, O-RING M32 | 50 . | pcs | 32 . | 0-1.5 mm | N/A |
No
|
|
|
| PLUG MS, O-RING M50 | 25 . | pcs | 50 . | 0-1.5 mm | N/A |
No
|
|
|
| PLUG MS, O-RING M63 | 10 . | pcs | 63 . | 0-1.5 mm | N/A |
No
|
|
|
| PLUG MS, O-RING M20 | 100 . | pcs | 20 . | 0-1.5 mm | N/A |
Yes
|
|
|
- Total: 8
Similar Options
Approvals
- Total: 8
| Product Description | Availability | ||
|---|---|---|---|
| PLUG MS, O-RING M40 |
Yes
|
|
|
| PLUG MS, O-RING M12 |
No
|
|
|
| PLUG MS, O-RING M16 |
Yes
|
|
|
| PLUG MS, O-RING M25 |
Yes
|
|
|
| PLUG MS, O-RING M32 |
No
|
|
|
| PLUG MS, O-RING M50 |
No
|
|
|
| PLUG MS, O-RING M63 |
No
|
|
|
| PLUG MS, O-RING M20 |
Yes
|
|
|
- Total: 8
Technical Properties
- Total: 8
| Product Description | Pressure-compensating | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Explosion-tested version | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLUG MS, O-RING M40 | No | Brass | 0 N/A | Metric | No | No | No | None | None | Nickel | Nickel-plated | -40-80 °C | Metal | N/A |
Yes
|
|
|
| PLUG MS, O-RING M12 | No | Brass | 0 N/A | Metric | No | No | No | None | None | Nickel | Nickel-plated | -40-80 °C | Metal | N/A |
No
|
|
|
| PLUG MS, O-RING M16 | No | Brass | 0 N/A | Metric | No | No | No | None | None | Nickel | Nickel-plated | -40-80 °C | Metal | N/A |
Yes
|
|
|
| PLUG MS, O-RING M25 | No | Brass | 0 N/A | Metric | No | No | No | None | None | Nickel | Nickel-plated | -40-80 °C | Metal | N/A |
Yes
|
|
|
| PLUG MS, O-RING M32 | No | Brass | 0 N/A | Metric | No | No | No | None | None | Nickel | Nickel-plated | -40-80 °C | Metal | N/A |
No
|
|
|
| PLUG MS, O-RING M50 | No | Brass | 0 N/A | Metric | No | No | No | None | None | Nickel | Nickel-plated | -40-80 °C | Metal | N/A |
No
|
|
|
| PLUG MS, O-RING M63 | No | Brass | 0 N/A | Metric | No | No | No | None | None | Nickel | Nickel-plated | -40-80 °C | Metal | N/A |
No
|
|
|
| PLUG MS, O-RING M20 | No | Brass | 0 N/A | Metric | No | No | No | None | None | Nickel | Nickel-plated | -40-80 °C | Metal | N/A |
Yes
|
|
|
- Total: 8
Other information
- Total: 8
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| PLUG MS, O-RING M40 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | 1.052.4001.50 |
Yes
|
|
|
|
| PLUG MS, O-RING M12 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | 1.052.1201.50 |
No
|
|
|
|
| PLUG MS, O-RING M16 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | 1.052.1601.50 |
Yes
|
|
|
|
| PLUG MS, O-RING M25 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | BLINDPLUGG MS, O-RING, V-N-MS-SD | 1.052.2501.50 |
Yes
|
|
|
| PLUG MS, O-RING M32 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | 1.052.3201.50 |
No
|
|
|
|
| PLUG MS, O-RING M50 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | 1.052.5001.50 |
No
|
|
|
|
| PLUG MS, O-RING M63 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | 1.052.6301.50 |
No
|
|
|
|
| PLUG MS, O-RING M20 | EC000032 - Plug for cable screw gland | 9.0 |
|
Plug | 1.052.2001.50 |
Yes
|
|
|
- Total: 8
