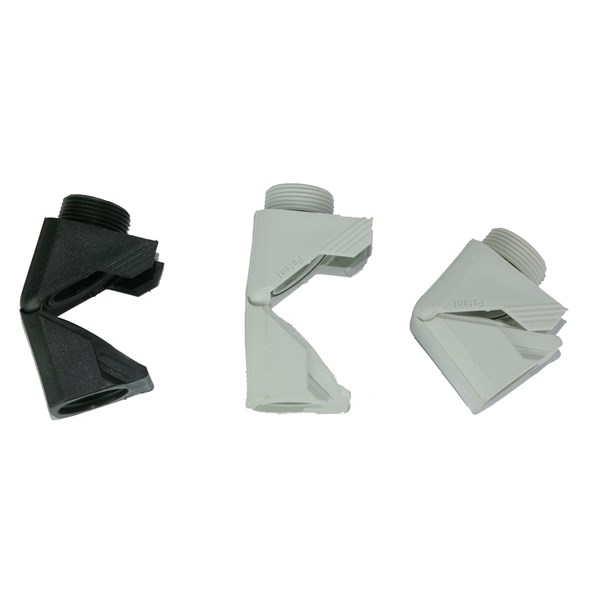

Klapp-vinkel
Klapp-vinkel
Vinkelförskruvning i polyamid.
Material: PA
O-ring: NBR
Skyddsklass:IP 68
Drifttemperatur kontinuerligt: -20º C till +80º C
Färger:Grå RAL 7035
Svart RAL 9005
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- No
- Model:
- 90°-elbow
- Material quality:
- Polyamide (PA)
- RAL-number:
- 7035 ., 9005 .
- Thread type:
- PG, Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Grey, Black
- Surface protection:
- Untreated
- Operating temperature:
- -20-80 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 19 mm
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | MOQ | Unit | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| SNAP ELBOW GREY M16 | 25 . | pcs | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
| SNAP ELBOW GREY PG9 | 25 . | pcs | 9 . | 1.41 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
| SNAP ELBOW BLACK M16 | 25 . | pcs | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
No
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|
| SNAP ELBOW GREY M16 | IP68 |
Yes
|
|
|
| SNAP ELBOW GREY PG9 | IP68 |
Yes
|
|
|
| SNAP ELBOW BLACK M16 | IP68 |
No
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SNAP ELBOW GREY M16 | No | IP68 | No | 90°-elbow | Polyamide (PA) | 7035 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Grey | Untreated | -20-80 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| SNAP ELBOW GREY PG9 | No | IP68 | No | 90°-elbow | Polyamide (PA) | 7035 . | PG | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Grey | Untreated | -20-80 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| SNAP ELBOW BLACK M16 | No | IP68 | No | 90°-elbow | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | No | No | No | No | None | None | Black | Untreated | -20-80 °C | Plastic | Yes | 19 mm |
No
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| SNAP ELBOW GREY M16 | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.315.1600.50 |
Yes
|
|
|
| SNAP ELBOW GREY PG9 | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.315.0900.11 |
Yes
|
|
|
| SNAP ELBOW BLACK M16 | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.315.1601.50 |
No
|
|
|
- Total: 3
