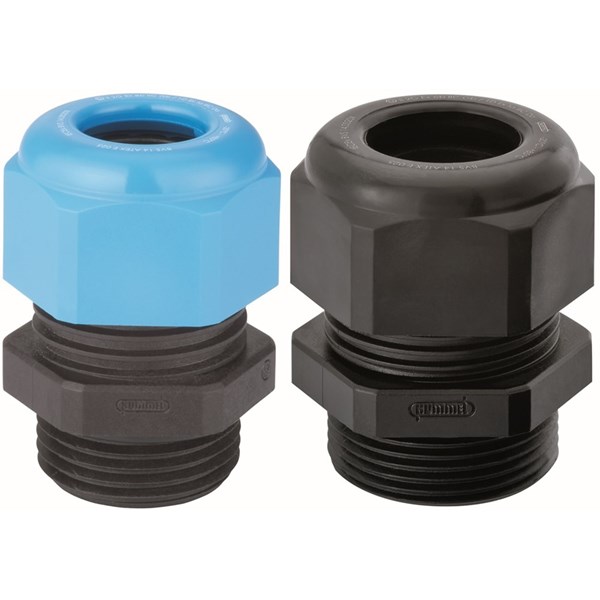

Kabelförskruvning - HSK-EX-ACTIVE-Serien
Material: Fibreglass reinforced polyamide
Seal: NBR
Protection: IP 68 -10 bar within the specified clamping range
Termperature: - 20°C to +85°C
Colors: Black or Blue-Black
O-ring: NBR
FKM and WMQ O-ring upon request.
Halogen-free.
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Polyamide (PA)
- RAL-number:
- 9005 ., 0 N/A
- Thread type:
- NPT, Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- Yes
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- 1, 2
- For Ex-Zone dust:
- 20, 21, 22
- Colour:
- Black, Other
- Surface protection:
- Untreated
- Operating temperature:
- -20-85 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 24 mm, 42 mm, 15 mm, 27 mm, 19 mm, 22 mm, 33 mm, 53 mm, 60 mm, 46 mm, 68 mm
Show more
Item List
- Total: 69
- Total: 69
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 69
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Hexagon angular dimension | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1/2'', 6-12mm | 50 . | pcs | 6-12 mm | 0 N/A | 1.814 mm | 13 mm | 24 mm | 1/2 inch |
Yes
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1",18-25mm | 50 . | pcs | 18-25 mm | 0 N/A | 2.208 mm | 19 mm | 42 mm | 1 inch |
Yes
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1", 13-20mm | 25 . | pcs | 13-20 mm | 0 N/A | 2.208 mm | 19 mm | 42 mm | 1 inch |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M12x1,5 , 3-6,5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 15 mm | 15 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M12x1,5 , 2-5mm | 50 . | pcs | 2-5 mm | 12 . | 1.5 mm | 15 mm | 15 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M12, 3-6,5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M12, 2-5mm | 50 . | pcs | 2-5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1/2", 5-9mm | 50 . | pcs | 5-9 mm | 0 N/A | 1.814 mm | 13 mm | 24 mm | 1/2 inch |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M12, 3-6,5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK NPT 1/2", 6-12mm | 50 . | pcs | 6-12 mm | 0 N/A | 1.814 mm | 13 mm | 24 mm | 1/2 inch |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK NPT 1/2", 5-9mm | 50 . | pcs | 5-9 mm | 0 N/A | 1.814 mm | 13 mm | 24 mm | 1/2 inch |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1/2", 10-14mm | 50 . | pcs | 10-14 mm | 0 N/A | 1.814 mm | 13 mm | 27 mm | 1/2 inch |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1/2", 7-12mm | 50 . | pcs | 7-12 mm | 0 N/A | 1.814 mm | 13 mm | 27 mm | 1/2 inch |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M16x1,5 , 4-8mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 15 mm | 19 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M16x1,5 , 3-6mm | 50 . | pcs | 3-6 mm | 16 . | 1.5 mm | 15 mm | 19 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M 16, 4-8mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M 16, 3-6mm | 50 . | pcs | 3-6 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16x1,5 , 4-8mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 15 mm | 19 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16, 4-8mm | 50 . | pcs | 4-8 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16, 3-6mm | 50 . | pcs | 3-6 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M16x1,5 , 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 15 mm | 22 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 8 mm | 22 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16x1,5 , 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 15 mm | 22 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16, 5-10mm | 50 . | pcs | 5-10 mm | 16 . | 1.5 mm | 8 mm | 22 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5 , 6-12mm, LONG THREAD | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 15 mm | 24 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5 , 5-9mm, LONG THREAD | 50 . | pcs | 5-9 mm | 20 . | 1.5 mm | 15 mm | 24 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20, 6-12mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20, 5-9mm | 50 . | pcs | 5-9 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20x1,5 , 6-12mm, LONG THREAD | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 15 mm | 24 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20, 6-12mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20, 5-9mm | 50 . | pcs | 5-9 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5 , 10-14mm, LONG THREAD | 50 . | pcs | 10-14 mm | 20 . | 1.5 mm | 15 mm | 27 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5 , 7-12mm | 50 . | pcs | 7-12 mm | 20 . | 1.5 mm | 15 mm | 27 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5, 10-14mm | 50 . | pcs | 10-14 mm | 20 . | 1.5 mm | 9 mm | 27 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20, 7-12mm | 50 . | pcs | 7-12 mm | 20 . | 1.5 mm | 9 mm | 27 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20x1,5, 10-14mm | 50 . | pcs | 10-14 mm | 20 . | 1.5 mm | 9 mm | 27 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20, 7-12mm | 50 . | pcs | 7-12 mm | 20 . | 1.5 mm | 9 mm | 27 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M25x1,5 , 13-18mm, LONG THREAD | 50 . | pcs | 13-18 mm | 25 . | 1.5 mm | 15 mm | 33 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M25x1,5 , 9-16mm, LONG THREAD | 50 . | pcs | 9-16 mm | 25 . | 1.5 mm | 15 mm | 33 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M25, 13-18mm | 50 . | pcs | 13-18 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M25, 9-16mm | 50 . | pcs | 9-16 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M25, 13-18mm | 50 . | pcs | 13-18 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M25, 9-16mm | 50 . | pcs | 9-16 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M32x1,5 , 18-25mm, LONG THREAD | 25 . | pcs | 18-25 mm | 32 . | 1.5 mm | 15 mm | 42 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M32x1,5 , 13-20mm, LONG THREAD | 25 . | pcs | 13-20 mm | 32 . | 1.5 mm | 15 mm | 42 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M32, 18-25mm | 25 . | pcs | 18-25 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M32, 13-20mm | 25 . | pcs | 13-20 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M32x1,5 , 18-25mm, LONG THREAD | 25 . | pcs | 18-25 mm | 32 . | 1.5 mm | 15 mm | 42 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M32, 18-25mm | 25 . | pcs | 18-25 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M32, 13-20mm | 25 . | pcs | 13-20 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 3/4", 13-18mm | 50 . | pcs | 13-18 mm | 0 N/A | 1.814 mm | 14 mm | 33 mm | 3/4 inch |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 3/4", 9-16mm | 50 . | pcs | 9-16 mm | 0 N/A | 1.814 mm | 14 mm | 33 mm | 3/4 inch |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 3/8", 4-8mm | 50 . | pcs | 4-8 mm | 0 N/A | 1.411 mm | 15 mm | 22 mm | 19 mm | 3/8 inch |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 3/8", 3-6mm | 50 . | pcs | 3-6 mm | 0 N/A | 1.411 mm | 15 mm | 22 mm | 19 mm | 3/8 inch |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M40x1,5 , 22-32mm, LONG THREAD | 10 . | pcs | 22-32 mm | 40 . | 1.5 mm | 18 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M40x1,5 , 20-26mm, LONG THREAD | 10 . | pcs | 20-26 mm | 40 . | 1.5 mm | 18 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M40, 22-32mm | 10 . | pcs | 22-32 mm | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M40, 20-26mm | 10 . | pcs | 20-26 mm | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M40, 22-32mm | 10 . | pcs | 22-32 mm | 40 . | 1.5 mm | 13 mm | 53 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M50x1,5 , 32-38mm, LONG THREAD | 5 . | pcs | 32-38 mm | 50 . | 1.5 mm | 18 mm | 60 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M50, 32-38mm | 5 . | pcs | 32-38 mm | 50 . | 1.5 mm | 13 mm | 60 mm | Other |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1 1/4", 18-25mm | 25 . | pcs | 18-25 mm | 0 N/A | 2.208 mm | 16 mm | 46 mm | 42 mm | 1 1/4 inch |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1 1/4", 13-20mm | 25 . | pcs | 13-20 mm | 0 N/A | 2.208 mm | 16 mm | 46 mm | 42 mm | 1 1/4 inch |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M63x1,5 , 37-44mm, LONG THREAD | 5 . | pcs | 37-44 mm | 63 . | 1.5 mm | 18 mm | 68 mm | 65 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M63x1,5 , 29-35mm, LONG THREAD | 5 . | pcs | 29-35 mm | 63 . | 1.5 mm | 18 mm | 68 mm | 65 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M63, 37-44mm | 5 . | pcs | 37-44 mm | 63 . | 1.5 mm | 14 mm | 68 mm | 65 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M63, 29-35mm | 5 . | pcs | 29-35 mm | 63 . | 1.5 mm | 14 mm | 68 mm | 65 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1 1/2", 22-32mm | 10 . | pcs | 22-32 mm | 0 N/A | 2.208 mm | 20 mm | 53 mm | 1 1/2 inch |
No
|
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1 1/2", 20-26mm | 10 . | pcs | 20-26 mm | 0 N/A | 2.208 mm | 20 mm | 53 mm | 1 1/2 inch |
No
|
|
|
- Total: 69
Similar Options
Approvals
- Total: 69
- Total: 69
Technical Properties
- Total: 69
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1/2'', 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1",18-25mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1", 13-20mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M12x1,5 , 3-6,5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 15 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M12x1,5 , 2-5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 15 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M12, 3-6,5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 15 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M12, 2-5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 15 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1/2", 5-9mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M12, 3-6,5mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 15 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK NPT 1/2", 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK NPT 1/2", 5-9mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1/2", 10-14mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1/2", 7-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M16x1,5 , 4-8mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M16x1,5 , 3-6mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M 16, 4-8mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M 16, 3-6mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16x1,5 , 4-8mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16, 4-8mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16, 3-6mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M16x1,5 , 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M16, 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16x1,5 , 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16, 5-10mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5 , 6-12mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5 , 5-9mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20, 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20, 5-9mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20x1,5 , 6-12mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20, 6-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20, 5-9mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5 , 10-14mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5 , 7-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5, 10-14mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20, 7-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20x1,5, 10-14mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20, 7-12mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 27 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M25x1,5 , 13-18mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M25x1,5 , 9-16mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M25, 13-18mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M25, 9-16mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M25, 13-18mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M25, 9-16mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M32x1,5 , 18-25mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M32x1,5 , 13-20mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M32, 18-25mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M32, 13-20mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M32x1,5 , 18-25mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M32, 18-25mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M32, 13-20mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 42 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 3/4", 13-18mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 3/4", 9-16mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 33 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 3/8", 4-8mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 3/8", 3-6mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M40x1,5 , 22-32mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M40x1,5 , 20-26mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M40, 22-32mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M40, 20-26mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M40, 22-32mm | No | IP68 | Yes | Straight | Polyamide (PA) | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Other | Untreated | -20-85 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M50x1,5 , 32-38mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 60 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M50, 32-38mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 60 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1 1/4", 18-25mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 46 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1 1/4", 13-20mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 46 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M63x1,5 , 37-44mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 68 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M63x1,5 , 29-35mm, LONG THREAD | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 68 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M63, 37-44mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 68 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M63, 29-35mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | Metric | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 68 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1 1/2", 22-32mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 53 mm |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1 1/2", 20-26mm | No | IP68 | Yes | Straight | Polyamide (PA) | 9005 . | NPT | No | Yes | No | No | No | No | No | Yes | No | No | No | Sealing ring | 1, 2 | 20, 21, 22 | Black | Untreated | -20-85 °C | Plastic | Yes | 53 mm |
No
|
|
|
- Total: 69
Other information
- Total: 69
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1/2'', 6-12mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1201.70 |
Yes
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1",18-25mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1001.70 |
Yes
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1", 13-20mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1001.71 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M12x1,5 , 3-6,5mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1201.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M12x1,5 , 2-5mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1201.31 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M12, 3-6,5mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1201.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M12, 2-5mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1201.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1/2", 5-9mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1201.71 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M12, 3-6,5mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1202.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK NPT 1/2", 6-12mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1202.70 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK NPT 1/2", 5-9mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1202.71 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1/2", 10-14mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1216.70 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1/2", 7-12mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1216.71 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M16x1,5 , 4-8mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1601.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M16x1,5 , 3-6mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1601.31 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M 16, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1601.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M 16, 3-6mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1601.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16x1,5 , 4-8mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1602.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16, 4-8mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1602.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16, 3-6mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1602.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M16x1,5 , 5-10mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1611.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M16, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1611.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16x1,5 , 5-10mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1612.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M16, 5-10mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.1612.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5 , 6-12mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2001.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5 , 5-9mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2001.31 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2001.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20, 5-9mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2001.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20x1,5 , 6-12mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2002.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20, 6-12mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2002.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20, 5-9mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2002.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5 , 10-14mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2016.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5 , 7-12mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2016.31 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20x1,5, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2016.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M20, 7-12mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2016.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20x1,5, 10-14mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2017.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M20, 7-12mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2017.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M25x1,5 , 13-18mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2501.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M25x1,5 , 9-16mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2501.31 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M25, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2501.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M25, 9-16mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2501.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M25, 13-18mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2502.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M25, 9-16mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.2502.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M32x1,5 , 18-25mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.3201.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M32x1,5 , 13-20mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.3201.31 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M32, 18-25mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.3201.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M32, 13-20mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.3201.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M32x1,5 , 18-25mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.3202.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M32, 18-25mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.3202.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M32, 13-20mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.3202.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 3/4", 13-18mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.3401.70 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 3/4", 9-16mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.3401.71 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 3/8", 4-8mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.3801.70 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 3/8", 3-6mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.3801.71 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M40x1,5 , 22-32mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.4001.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M40x1,5 , 20-26mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.4001.31 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M40, 22-32mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.4001.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M40, 20-26mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.4001.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLUE/BLACK M40, 22-32mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.4002.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M50x1,5 , 32-38mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.5001.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M50, 32-38mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.5001.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1 1/4", 18-25mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.5401.70 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1 1/4", 13-20mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.5401.71 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M63x1,5 , 37-44mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.6301.30 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M63x1,5 , 29-35mm, LONG THREAD | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.6301.31 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M63, 37-44mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.6301.50 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK M63, 29-35mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.6301.51 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1 1/2", 22-32mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.6401.70 |
No
|
|
|
| CABLE GLAND, HSK-K-EX-ACTIVE, BLACK NPT 1 1/2", 20-26mm | EC000441 - Cable gland | 9.0 |
|
Ex | HSK-K-EX, HSK-K-EX-ACTIVE | 1.292.6401.71 |
No
|
|
|
- Total: 69
Back to top
Do you need help finding the right product or other advice contact us.
