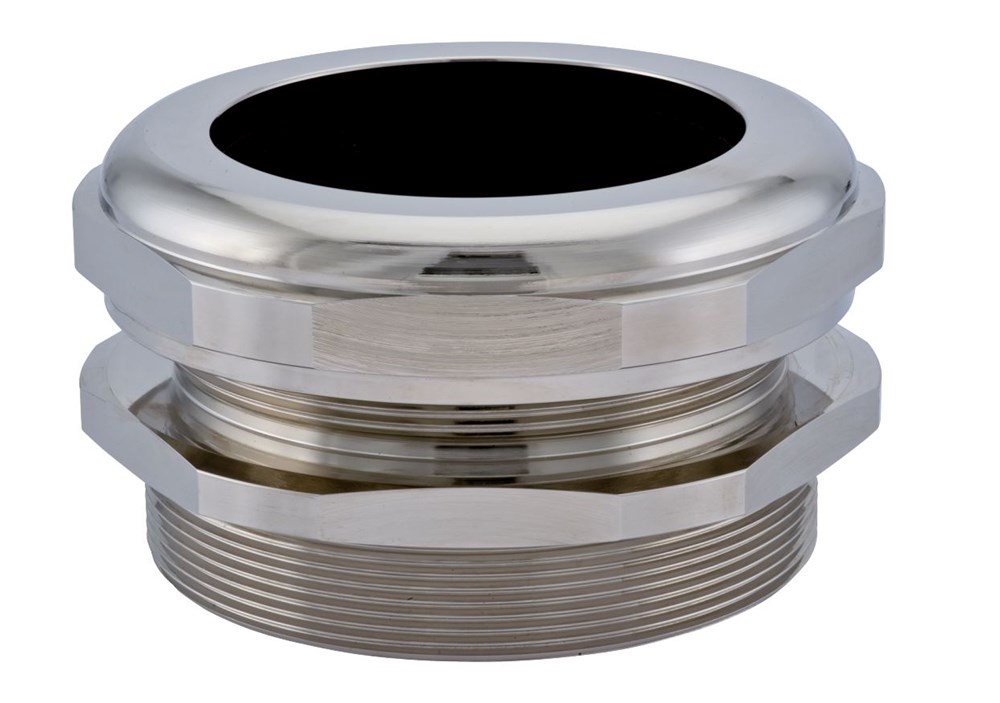

HSK-XL
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -20-100 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 90 mm, 80 mm
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-XL M75, 48-55mm | 1 . | pcs | 48-55 mm | 75 . | 1.5 mm | 15 mm | 80 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-XL M80, 58-65mm | 1 . | pcs | 58-65 mm | 80 . | 1.5 mm | 15 mm | 90 mm | Other |
No
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Degree of protection (IP) | Approved according to CE | Availability | ||
|---|---|---|---|---|---|
| CABLE GLAND, HSK-XL M75, 48-55mm |
|
No
|
|
|
|
| CABLE GLAND, HSK-XL M80, 58-65mm | IP68 |
No
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-XL M75, 48-55mm | No | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | Brass | Nickel-plated | -20-100 °C | Metal | Yes | 80 mm |
No
|
|
|
|||||||
| CABLE GLAND, HSK-XL M80, 58-65mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Brass | Nickel-plated | -20-100 °C | Metal | Yes | 90 mm |
No
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-XL M75, 48-55mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | FÖRSKRUVNING, HSK-XL | 1.106.7500.50 |
No
|
|
|
| CABLE GLAND, HSK-XL M80, 58-65mm | EC000441 - Cable gland | 9.0 |
|
Metal, standard | 1.106.8000.50 |
No
|
|
|
