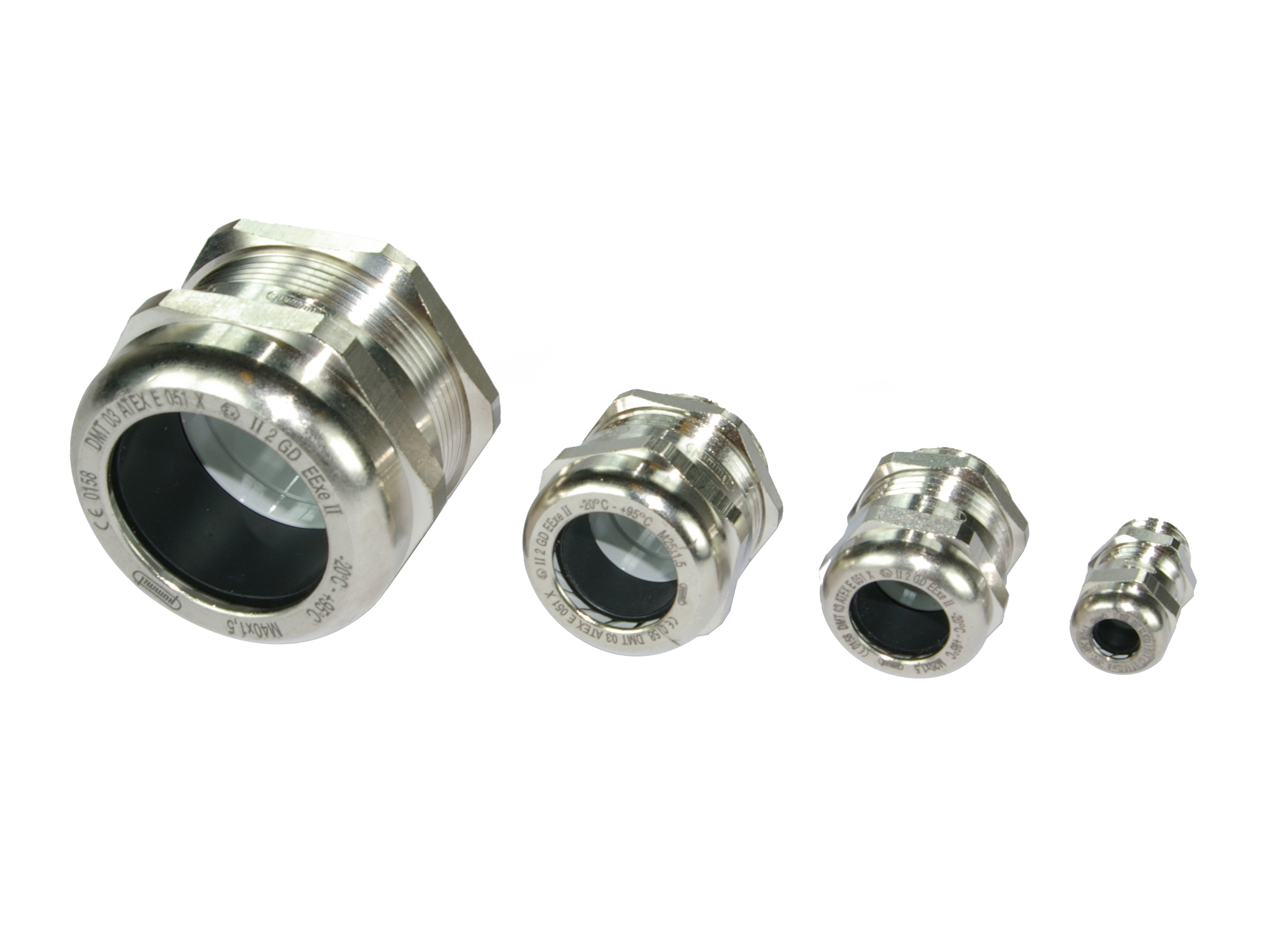

HSK-M-EMV EX, tillbakaviken skärm
EMI compatible standard strain relief fittings for hazardous locations.Material: Nickel plated brassClamping insert: PA (Nylon)Seal: Buna-NO-ring: Buna-NProtection: IP 68 - 10 bar / IP 69K(NEMA 6 - 150 PSIG) within the specified clamping rangeOperating temperature: -20 degrees Celsius to +95 degrees Celsius PG are not VDE approved.
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric, PG
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- Yes
- For armoured cable:
- No
- EMC-version:
- Yes
- Screened:
- Yes
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- 1, 2
- For Ex-Zone dust:
- 20, 21, 22
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -20-95 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 14 mm, 22 mm, 24 mm, 20 mm, 30 mm, 40 mm, 50 mm
Show more
Item List
- Total: 12
- Total: 12
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 12
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-M-EMV-EX M12, 3-6.5mm | 50 . | pcs | 3-6.5 mm | 12 . | 1.5 mm | 5 mm | 14 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M16, 6-10mm | 50 . | pcs | 6-10 mm | 16 . | 1.5 mm | 6 mm | 20 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M16, 3-7mm | 50 . | pcs | 3-7 mm | 16 . | 1.5 mm | 6 mm | 20 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M20, 10-14mm | 50 . | pcs | 10-14 mm | 20 . | 1.5 mm | 6 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M20, 7-12mm | 50 . | pcs | 7-12 mm | 20 . | 1.5 mm | 6 mm | 24 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M25, 14-18mm | 25 . | pcs | 14-18 mm | 25 . | 1.5 mm | 7 mm | 30 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M25, 10-16mm | 25 . | pcs | 10-16 mm | 25 . | 1.5 mm | 7 mm | 30 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M32, 20-25mm | 25 . | pcs | 20-25 mm | 32 . | 1.5 mm | 8 mm | 40 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M32, 13-20mm | 25 . | pcs | 13-20 mm | 32 . | 1.5 mm | 8 mm | 40 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M40, 22-32mm | 10 . | pcs | 22-32 mm | 40 . | 1.5 mm | 8 mm | 50 mm | Other |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX PG13.5, 6-12mm | 50 . | pcs | 6-12 mm | 13.5 . | 1.41 mm | 6.5 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, HSK-M-EMV-EX PG16, 7-12mm | 50 . | pcs | 7-12 mm | 16 . | 1.41 mm | 6.5 mm | 24 mm | Other |
No
|
|
|
- Total: 12
Similar Options
Approvals
- Total: 12
| Product Description | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|
| CABLE GLAND, HSK-M-EMV-EX M12, 3-6.5mm | IP68 |
No
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M16, 6-10mm | IP68 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M16, 3-7mm | IP68 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M20, 10-14mm | IP68 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M20, 7-12mm | IP68 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M25, 14-18mm | IP68 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M25, 10-16mm | IP68 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M32, 20-25mm | IP68 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M32, 13-20mm | IP68 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M40, 22-32mm | IP68 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX PG13.5, 6-12mm | IP68 |
No
|
|
|
| CABLE GLAND, HSK-M-EMV-EX PG16, 7-12mm | IP68 |
No
|
|
|
- Total: 12
Technical Properties
- Total: 12
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-M-EMV-EX M12, 3-6.5mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | Yes | Yes | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 14 mm |
No
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M16, 6-10mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | Yes | Yes | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 20 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M16, 3-7mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | Yes | Yes | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 20 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M20, 10-14mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | Yes | Yes | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M20, 7-12mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | Yes | Yes | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M25, 14-18mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | Yes | Yes | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 30 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M25, 10-16mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | Yes | Yes | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 30 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M32, 20-25mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | Yes | Yes | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 40 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M32, 13-20mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | Yes | Yes | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 40 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M40, 22-32mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | Yes | No | Yes | Yes | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 50 mm |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX PG13.5, 6-12mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | Yes | No | Yes | Yes | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, HSK-M-EMV-EX PG16, 7-12mm | No | IP68 | Yes | Straight | Brass | 0 N/A | PG | No | Yes | No | No | No | No | No | Yes | No | Yes | Yes | Sealing ring | 1, 2 | 20, 21, 22 | Brass | Nickel-plated | -20-95 °C | Metal | Yes | 24 mm |
No
|
|
|
- Total: 12
Other information
- Total: 12
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, HSK-M-EMV-EX M12, 3-6.5mm | EC000441 - Cable gland | 9.0 |
|
EMC/Ex | 1.616.1200.50 |
No
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M16, 6-10mm | EC000441 - Cable gland | 9.0 |
|
EMC/Ex | 1.616.1600.50 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M16, 3-7mm | EC000441 - Cable gland | 9.0 |
|
EMC/Ex | 1.616.1600.51 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M20, 10-14mm | EC000441 - Cable gland | 9.0 |
|
EMC/Ex | 1.616.2000.50 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M20, 7-12mm | EC000441 - Cable gland | 9.0 |
|
EMC/Ex | 1.616.2000.51 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M25, 14-18mm | EC000441 - Cable gland | 9.0 |
|
EMC/Ex | 1.616.2500.50 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M25, 10-16mm | EC000441 - Cable gland | 9.0 |
|
EMC/Ex | 1.616.2500.51 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M32, 20-25mm | EC000441 - Cable gland | 9.0 |
|
EMC/Ex | 1.616.3200.50 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M32, 13-20mm | EC000441 - Cable gland | 9.0 |
|
EMC/Ex | 1.616.3200.51 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX M40, 22-32mm | EC000441 - Cable gland | 9.0 |
|
EMC/Ex | 1.616.4000.50 |
Yes
|
|
|
| CABLE GLAND, HSK-M-EMV-EX PG13.5, 6-12mm | EC000441 - Cable gland | 9.0 |
|
EMC/Ex | 1.616.1300.01 |
No
|
|
|
| CABLE GLAND, HSK-M-EMV-EX PG16, 7-12mm | EC000441 - Cable gland | 9.0 |
|
EMC/Ex | 1.616.1600.15 |
No
|
|
|
- Total: 12
