1.101.1601.01

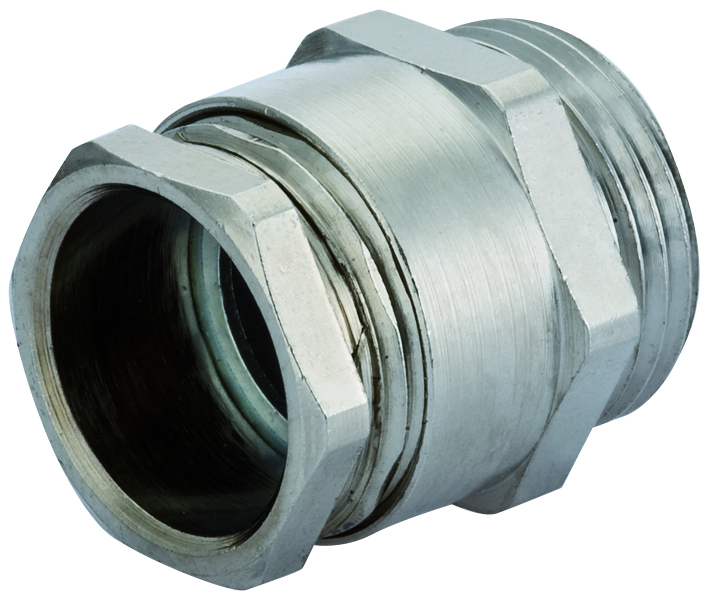

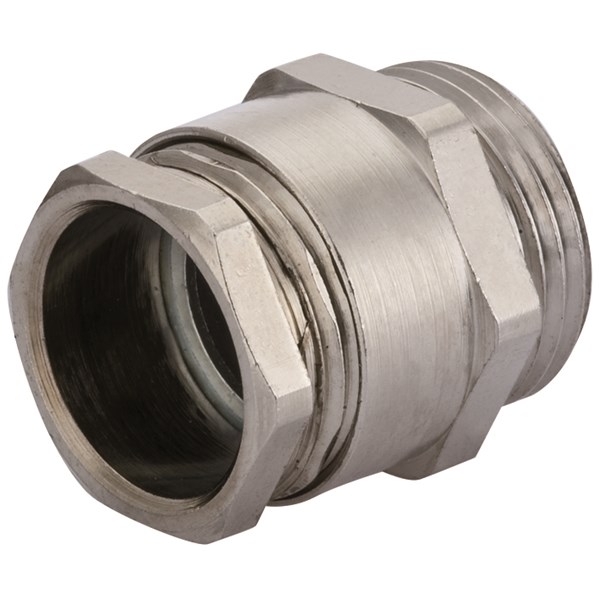

CABLE GLAND, DIN46320-C4 MS PG16, 5.5-14.5mm
1.101.1601.01
- Availability:
-
Yes
E1460946
Product Properties
| Pressure-compensating | No |
|---|---|
| Degree of protection (IP) | IP54 |
| With strain relief | No |
| Model | Straight |
| Material quality | Brass |
| RAL-number | 0 N/A |
| Thread type | PG |
| Glass-fibre reinforced | No |
| Shock resistant | Yes |
| Bend radius protection/trumpet flare | No |
| With locknut | No |
| Snapping in opening | No |
| Multi seal area | No |
| Flat cable coupling | No |
| Explosion-tested version | No |
| For armoured cable | No |
| EMC-version | No |
| Screened | No |
| Type of sealing | Cut-out ring |
| For Ex-zone gas | None |
| For Ex-Zone dust | None |
| Colour | Brass |
| Surface protection | Nickel-plated |
| Operating temperature | -40-100 °C |
| Material | Metal |
| Halogen free | Yes |
| Wrench width | 22 mm |
Dimensions
| MOQ | 50 . |
|---|---|
| Unit | pcs |
| Suitable for cable diameter | 5.5-14.5 mm |
| Nominal thread size metric/PG | 16 . |
| Pitch thread | 1.41 mm |
| Thread length | 6.5 mm |
| Wrench width | 22 mm |
| Hexagon angular dimension | 24 mm |
| Nominal thread size inch/gas pipe thread | Other |
Logistics
| Barcode | 733117613986 |
|---|---|
| Country of origin | DE |
| E-no | E1460946 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 50 . |
| Stock code | 1.101.1601.01 |
| Taric code | 85389099 |
| Unit | pcs |
Approvals
| Degree of protection (IP) | IP54 |
|---|
Other info
| ETIM-Class | EC000441 - Cable gland |
|---|---|
| ETIM-Release | 9.0 |
| Product Group | Metal, standard |
| Search Description | FÖRSKRUVNING, DIN46320-C4 MS |
| Alternative SKU | 1.101.1601.01 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
