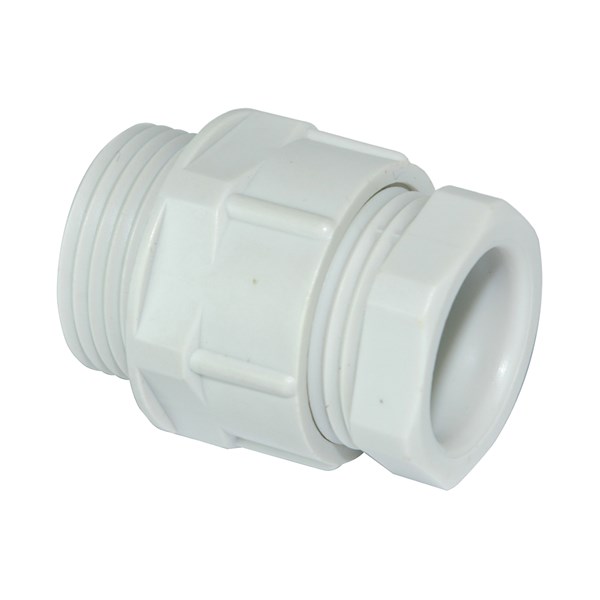

DIN 46320
Kabelförskruvning
1.201-serien:
Tillverkad i glasfiberförstärkt polyamid enligt DIN 46320-A-FS/PA.
Ej beständig mot kemiska oljor eller mineraloljor.
1.202-serien:
Tillverkad i glasfiberförstärkt polyamid enligt DIN 46320-A-FS/PA.
God beständighet mot syror, baser, havsvatten, bensin och mineraloljor.
Arbetstemperatur: -20º C till +80º C
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP54
- With strain relief:
- No
- Model:
- Straight
- Material quality:
- Polyamide (PA)
- RAL-number:
- 7035 .
- Thread type:
- PG, Metric
- Glass-fibre reinforced:
- Yes
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring, Cut-out ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Grey
- Surface protection:
- Untreated
- Operating temperature:
- -20-60 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 13 mm, 16 mm, 19 mm, 15 mm, 21 mm, 23 mm, 24 mm, 30 mm, 33 mm, 40 mm, 42 mm, 50 mm, 54 mm
Show more
Item List
- Total: 15
- Total: 15
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 15
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Hexagon angular dimension | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, DIN 46320 M12, 3.5-6mm | 50 . | pcs | 3.5-6 mm | 12 . | 1.5 mm | 8 mm | 15 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, DIN 46320 M16, 4.5-7mm | 50 . | pcs | 4.5-7 mm | 16 . | 1.5 mm | 8 mm | 19 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, DIN 46320 M20, 9-12mm | 50 . | pcs | 9-12 mm | 20 . | 1.5 mm | 9 mm | 24 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, DIN 46320 M25, 14-18mm | 50 . | pcs | 14-18 mm | 25 . | 1.5 mm | 11 mm | 33 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, DIN 46320 M32, 18-25mm | 10 . | pcs | 18-25 mm | 32 . | 1.5 mm | 11 mm | 42 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, DIN 46320 M40, 25-32mm | 10 . | pcs | 25-32 mm | 40 . | 1.5 mm | 13 mm | 54 mm | Other |
Yes
|
|
|
|
| CABLE GLAND, DIN 46320 PG7, 3.5-6mm | 50 . | pcs | 3.5-6 mm | 7 . | 1.27 mm | 8 mm | 13 mm | 15 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG9, 4.5-7mm | 50 . | pcs | 4.5-7 mm | 9 . | 1.41 mm | 8 mm | 16 mm | 19 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG11, 6-9mm | 50 . | pcs | 6-9 mm | 11 . | 1.41 mm | 8 mm | 19 mm | 22 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG13.5, 9-12mm | 50 . | pcs | 9-12 mm | 13.5 . | 1.41 mm | 9 mm | 21 mm | 24 mm | Other |
No
|
|
|
| CABLE GLAND, DIN 46320 PG16, 11-14mm | 100 . | pcs | 11-14 mm | 16 . | 1.41 mm | 10 mm | 23 mm | 27 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG21, 14-18mm | 50 . | pcs | 14-18 mm | 21 . | 1.588 mm | 11 mm | 30 mm | 33 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG29, 18-25mm | 10 . | pcs | 18-25 mm | 29 . | 1.588 mm | 11 mm | 40 mm | 42 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG36, 25-32mm | 10 . | pcs | 25-32 mm | 36 . | 1.588 mm | 13 mm | 50 mm | 53 mm | Other |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG13.5, 6.5-13.5mm | 50 . | pcs | 6.5-13.5 mm | 13.5 . | 1.41 mm | 9 mm | 21 mm | 24 mm | Other |
Yes
|
|
|
- Total: 15
Similar Options
Approvals
- Total: 15
| Product Description | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|
| CABLE GLAND, DIN 46320 M12, 3.5-6mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M16, 4.5-7mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M20, 9-12mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M25, 14-18mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M32, 18-25mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M40, 25-32mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG7, 3.5-6mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG9, 4.5-7mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG11, 6-9mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG13.5, 9-12mm | IP54 |
No
|
|
|
| CABLE GLAND, DIN 46320 PG16, 11-14mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG21, 14-18mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG29, 18-25mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG36, 25-32mm | IP54 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG13.5, 6.5-13.5mm | IP54 |
Yes
|
|
|
- Total: 15
Technical Properties
- Total: 15
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, DIN 46320 M12, 3.5-6mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | Metric | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 15 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M16, 4.5-7mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | Metric | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M20, 9-12mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | Metric | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 24 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M25, 14-18mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | Metric | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 33 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M32, 18-25mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | Metric | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 42 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M40, 25-32mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | Metric | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 54 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG7, 3.5-6mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | PG | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 13 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG9, 4.5-7mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | PG | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 16 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG11, 6-9mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | PG | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 19 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG13.5, 9-12mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | PG | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 21 mm |
No
|
|
|
| CABLE GLAND, DIN 46320 PG16, 11-14mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | PG | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 23 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG21, 14-18mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | PG | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 30 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG29, 18-25mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | PG | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 40 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG36, 25-32mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | PG | Yes | Yes | No | No | No | No | No | No | No | No | No | Sealing ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 50 mm |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG13.5, 6.5-13.5mm | No | IP54 | No | Straight | Polyamide (PA) | 7035 . | PG | Yes | Yes | No | No | No | No | No | No | No | No | No | Cut-out ring | None | None | Grey | Untreated | -20-60 °C | Plastic | Yes | 21 mm |
Yes
|
|
|
- Total: 15
Other information
- Total: 15
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, DIN 46320 M12, 3.5-6mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.1200.50 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M16, 4.5-7mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.1600.50 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M20, 9-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.2000.50 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M25, 14-18mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.2500.50 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M32, 18-25mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.3200.50 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 M40, 25-32mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.4000.50 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG7, 3.5-6mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.0700.10 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG9, 4.5-7mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.0900.10 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG11, 6-9mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.1100.10 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG13.5, 9-12mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.1300.10 |
No
|
|
|
| CABLE GLAND, DIN 46320 PG16, 11-14mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.1600.10 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG21, 14-18mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.2100.10 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG29, 18-25mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.2900.10 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG36, 25-32mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.3600.10 |
Yes
|
|
|
| CABLE GLAND, DIN 46320 PG13.5, 6.5-13.5mm | EC000441 - Cable gland | 9.0 |
|
Plastic, standard | 1.201.1302.10 |
Yes
|
|
|
- Total: 15
