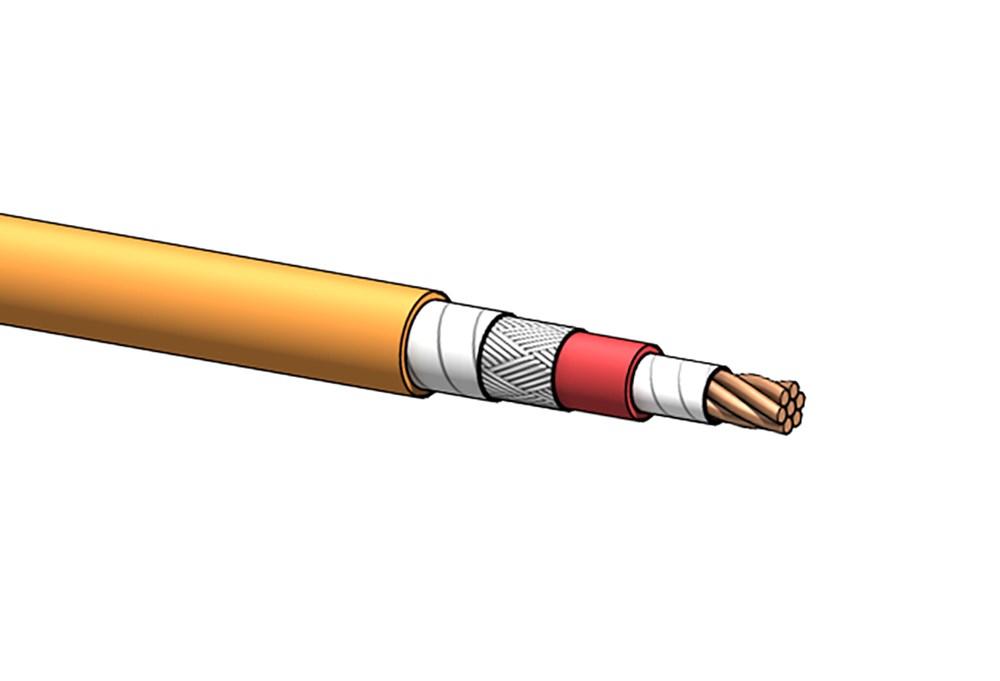

RADOX AUTO B - Multi conductor red Tinned
Shielded power cable for use in hybrid and electric vehicles (FHLR91XC13X & FHLR4GC13X)
Excellent resistance to high and low temperature, ozone and weather resistance, resistant to high pressure temperature, engine oil, fuels and hydrolysis, flame retardant, high abrasion resistant, solder resistant, easy to strip and process, according to ISO 6722 class D, LV 112, ISO 14572, LV 212, DIN 76722.
Complies with EU Directive 2000/53 / EC on end-of-life vehicles. It is free of lead, mercury, cadmium and chromium VI.
Use:
Low voltage cable, for use in trucks, among other things.
CAUTION: Special care must be taken for cables used with voltages above 60 VDC to protect them from mechanical stress to avoid shocks (ISO 6722: 2006)
Conductor: Annealed copper according to ISO C flexible 6
Conductor insulation: 155 (polyolefin)
Coat color: Orange
Technical data:
Operating voltage: 1000VAC 1500VDC
Test voltage: 50HZ, 1MIN 3500 kV AC
Temp. range: -40ºC to + 150ºC (3000H)
Minimum bending radius: 4x the diameter of the cable
Approvals, Standards:
ISO 6722 class D iSO 19642-9
Technical properties
- Number of cores:
- 3 .
- Colour outer sheath:
- Orange
- Nominal voltage:
- 1000 V
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Orange
- Material insulation:
- Polyolefin (POE)
- Operating temperature:
- -40-150 °C
- Conductor surface:
- Tinned
- Halogen free:
- Yes
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
EV-konceptet
Dimensions
- Total: 5
| Product Description | Nominal cross section conductor | MOQ | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|
| AUTO B, 2X2.5mm2,P ORANGE, REMS 600V, 150C | 1000 . | m |
No
|
|
|
||
| AUTO B, 3X2.5mm2,P ORANGE, REMS 600V, 150C | 2.5 mm² | 100 . | m | 1000 V |
Yes
|
|
|
| AUTO B, 4X2.5mm2,P ORANGE, REMS 600V, 150C | 500 . | m |
Yes
|
|
|
||
| AUTO B, 3X4mm2,P ORANGE, REMS 600V, 150C | 4 mm² | 350 . | m |
Yes
|
|
|
|
| AUTO B, 2x6mm2, ORANGE, REMS 600V, FT, 150C | 100 . | m |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | Availability | ||
|---|---|---|---|
| AUTO B, 2X2.5mm2,P ORANGE, REMS 600V, 150C |
No
|
|
|
| AUTO B, 3X2.5mm2,P ORANGE, REMS 600V, 150C |
Yes
|
|
|
| AUTO B, 4X2.5mm2,P ORANGE, REMS 600V, 150C |
Yes
|
|
|
| AUTO B, 3X4mm2,P ORANGE, REMS 600V, 150C |
Yes
|
|
|
| AUTO B, 2x6mm2, ORANGE, REMS 600V, FT, 150C |
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Number of cores | Colour outer sheath | Nominal voltage | Single insulated/Double insulated | Colour | Material insulation | Operating temperature | Conductor surface | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AUTO B, 2X2.5mm2,P ORANGE, REMS 600V, 150C | Orange | Double insulated | Orange | Yes |
No
|
|
|
|||||
| AUTO B, 3X2.5mm2,P ORANGE, REMS 600V, 150C | 3 . | Orange | 1000 V | Double insulated | Orange | Polyolefin (POE) | -40-150 °C | Tinned | Yes |
Yes
|
|
|
| AUTO B, 4X2.5mm2,P ORANGE, REMS 600V, 150C | Orange | Orange | Yes |
Yes
|
|
|
||||||
| AUTO B, 3X4mm2,P ORANGE, REMS 600V, 150C | 3 . | Orange | Double insulated | Orange | Yes |
Yes
|
|
|
||||
| AUTO B, 2x6mm2, ORANGE, REMS 600V, FT, 150C | Orange | Orange | Yes |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| AUTO B, 2X2.5mm2,P ORANGE, REMS 600V, 150C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - Radox Auto B, Battery cable, Red copper | RADOX AUTO B, 2X2.5MM2, P ORANGE, REMS, EVK2024 | 12582307 |
No
|
|
|
| AUTO B, 3X2.5mm2,P ORANGE, REMS 600V, 150C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - Radox Auto B, Battery cable, Red copper | RADOX AUTO B, 3G2.5MM2, P ORANGE, REMS, EVK2024 | 84132059 |
Yes
|
|
|
| AUTO B, 4X2.5mm2,P ORANGE, REMS 600V, 150C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - Radox Auto B, Battery cable, Red copper | RADOX AUTO B, 4X2.5MM2, P ORANGE, REMS, EVK2024 | 12585651 |
Yes
|
|
|
| AUTO B, 3X4mm2,P ORANGE, REMS 600V, 150C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - Radox Auto B, Battery cable, Red copper | RADOX AUTO B, 3X4MM2, P ORANGE, REMS, EVK2024 | 84090304 |
Yes
|
|
|
| AUTO B, 2x6mm2, ORANGE, REMS 600V, FT, 150C | EC003251 - Power cable >= 1 kV, for permanent installation | 9.0 |
|
Cable - Radox Auto B, Battery cable, Tinned | RADOX AUTO B, 2X6MM2, P ORANGE, REMS, EVK2024 | 12584915 |
Yes
|
|
|
- Total: 5
