RADOX 3 GKW, multi conductor
Halogen-free control cable for protected fixed installation in train applications. The cable has a very small outer diameter and is used in tight spaces.
Areas of use are control and control cabinets, control panels, signal circuits and internal control cable in other train equipment. Resistant to high mechanical loads, oil and fuel.

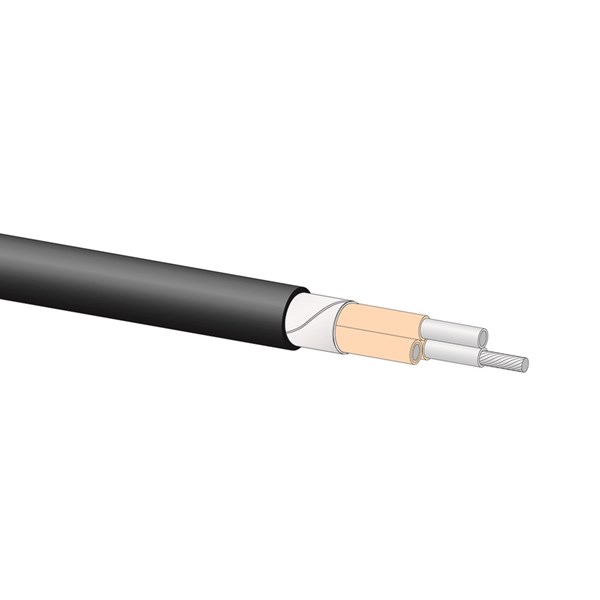

Structure
Conductor: Tinned multi-wire copper according to IEC 60228 class 5
Conductor insulation inner jacket: RADOX GKW P / GKW HP (polyolefin copolymer)
Conductor color: White, numbered. Transparent plastic foil
Conductor insulation outer sheath: RADOX GKW S (polyolefin copolymer)
Sheath color: Black
Technical data:
Operating voltage: 600/1000 V AC, 750/1500 V DC
Test voltage: 3500 V (50 Hz, 5 min)
Temp. range: -40ºC to + 120ºC
Minimum bending radius: 3 x cable diameter (see data sheet)
Approvals, flame resistance
BS 6853
DIN 5510
NF F16-101
BS 4066-3
BS 6583
BS 6853 cat. D
BS 6853 cat. B
DIN EN 50265-2-1
DIN EN 50266-2-4
DIN EN 50266-2-5
DIN EN 50268-2
NF C32-070 TEST 2
NF X10-702-2
NF X70-100 IEC 60332-1
EN 50265 -2-1 IEC 60332-3-24
EN 50266-2-4 IEC 60754-1
EN 50267-2-1 IEC 60754-2
EN 50267-2-3 IEC 61034-2
EN 50268-2
Technical properties
- Number of cores:
- 3 ., 5 ., 8 ., 2 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyolefin, None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Black, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-120 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 120 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- Yes, Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Operating temperature:
- -40-120 °C
- Core colour:
- Several
- Conductor surface:
- Tinned
- Min. permitted bending radius, stationary application/permanent installation:
- 70.72 mm, 84.24 mm, 106.08 mm, 44.7 mm, 79.04 mm
Show more
Item List
- Total: 8
- Total: 8
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 8
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RADOX 3GKW, 3x0.75mm2, BLACK 600V, HF, FT, 120C | 0.75 mm² | 1000 . | 6.8 mm | 70.72 mm | m | 600 V |
Yes
|
|
|
| RADOX 3GKW, 9x1.0mm2, BLACK 600V, HF, FT, 120C | 500 . | m |
No
|
|
|
||||
| RADOX 3GKW, 3x1.5mm2, BLACK 600V, HF, FT, 120C | 1.5 mm² | 1000 . | 8.1 mm | 84.24 mm | m | 600 V |
No
|
|
|
| RADOX 3GKW, 3g1.5mm2, BLACK 600V, HF, FT, 120C | 100 . | m |
No
|
|
|
||||
| RADOX 3GKW, 5x1.5mm2, BLACK 600V, HF, FT, 120C | 1.5 mm² | 1000 . | 10.2 mm | 106.08 mm | m | 600 V |
No
|
|
|
| RADOX 3GKW, 8x1.5mm2, BLACK EMC, 600V, HF, FT, 120C | 1.5 mm² | 500 . | 14.9 mm | 44.7 mm | m | 600 V |
No
|
|
|
| RADOX 3GKW, 3g2.5mm2, BLACK 600V, HF, FT, 120C | 1000 . | m |
No
|
|
|
||||
| RADOX 3GKW, 2x10mm2, XM, BLACK EMC, 600V, HF, FT, 120C | 10 mm² | 500 . | 7.6 mm | 79.04 mm | m | 600 V |
No
|
|
|
- Total: 8
Similar Options
Approvals
- Total: 8
| Product Description | Approved according to BS 4066-3 | Approved according to BS 6853 kat. B | Approved according to BS 6853 kat. D | Approved according to DIN 5510 | Approved according to DIN EN 50265-2-1 | Approved according to DIN EN 50266-2-4 | Approved according to DIN EN 50266-2-5 | Approved according to DIN EN 50268-2 | Approved according to EN 50267-2-1 | Approved according to EN 50267-2-3 | Approved according to EN 50268-2 | Approved according to IEC 60332-1 | Approved according to IEC 60332-3-24 | Approved according to IEC 60754-1 | Approved according to IEC 60754-2 | Approved according to NF C32-070 TEST 2 | Approved according to NF F16-101 | Approved according to NF X10-702-2 | Approved according to NF X70-100 | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Flame retardant | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RADOX 3GKW, 3x0.75mm2, BLACK 600V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
Yes
|
|
|
| RADOX 3GKW, 9x1.0mm2, BLACK 600V, HF, FT, 120C | According to IEC/EN 60332-1-2 |
No
|
|
|
|||||||||||||||||||||||||||
| RADOX 3GKW, 3x1.5mm2, BLACK 600V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| RADOX 3GKW, 3g1.5mm2, BLACK 600V, HF, FT, 120C | N/A | N/A | N/A | N/A | Yes | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
||||||||||||||||||||
| RADOX 3GKW, 5x1.5mm2, BLACK 600V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| RADOX 3GKW, 8x1.5mm2, BLACK EMC, 600V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
| RADOX 3GKW, 3g2.5mm2, BLACK 600V, HF, FT, 120C |
No
|
|
|
||||||||||||||||||||||||||||
| RADOX 3GKW, 2x10mm2, XM, BLACK EMC, 600V, HF, FT, 120C | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | N/A | N/A | N/A | N/A | Yes | Yes | No | No | According to IEC/EN 60332-1-2 |
No
|
|
|
- Total: 8
Technical Properties
- Total: 8
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Colour | Material insulation | Operating temperature | Core colour | Conductor surface | Halogen free | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RADOX 3GKW, 3x0.75mm2, BLACK 600V, HF, FT, 120C | 3 . | Polyolefin | Other | Colour | No | Polyolefin | Other | Other | According to IEC/EN 60332-1-2 | -40-120 °C | Copper | No | 120 °C | No | N/A | None | N/A | No | 600 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-120 °C | Several | Tinned | Yes | 70.72 mm |
Yes
|
|
|
| RADOX 3GKW, 9x1.0mm2, BLACK 600V, HF, FT, 120C | Polyolefin | Colour | Black | According to IEC/EN 60332-1-2 | No | Black | Yes |
No
|
|
|
|||||||||||||||||||||
| RADOX 3GKW, 3x1.5mm2, BLACK 600V, HF, FT, 120C | 3 . | Polyolefin | Other | Colour | No | Polyolefin | Other | Other | According to IEC/EN 60332-1-2 | -40-120 °C | Copper | No | 120 °C | No | N/A | None | N/A | No | 600 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-120 °C | Several | Tinned | Yes | 84.24 mm |
No
|
|
|
| RADOX 3GKW, 3g1.5mm2, BLACK 600V, HF, FT, 120C | Polyolefin | Colour | No | None | Black | According to IEC/EN 60332-1-2 | Copper | None | No | Yes | Class 5 = flexible | Black | Tinned | Yes |
No
|
|
|
||||||||||||||
| RADOX 3GKW, 5x1.5mm2, BLACK 600V, HF, FT, 120C | 5 . | Polyolefin | Other | Colour | No | Polyolefin | Other | Other | According to IEC/EN 60332-1-2 | -40-120 °C | Copper | No | 120 °C | No | N/A | None | N/A | No | 600 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-120 °C | Several | Tinned | Yes | 106.08 mm |
No
|
|
|
| RADOX 3GKW, 8x1.5mm2, BLACK EMC, 600V, HF, FT, 120C | 8 . | Polyolefin | Other | Colour | No | Polyolefin | Other | Other | According to IEC/EN 60332-1-2 | -40-120 °C | Copper | No | 120 °C | No | N/A | None | N/A | No | 600 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-120 °C | Several | Tinned | Yes | 44.7 mm |
No
|
|
|
| RADOX 3GKW, 3g2.5mm2, BLACK 600V, HF, FT, 120C |
No
|
|
|
||||||||||||||||||||||||||||
| RADOX 3GKW, 2x10mm2, XM, BLACK EMC, 600V, HF, FT, 120C | 2 . | Polyolefin | Other | Colour | No | Polyolefin | Other | Other | According to IEC/EN 60332-1-2 | -40-120 °C | Copper | No | 120 °C | No | N/A | None | N/A | No | 600 V | Yes | Class 5 = flexible | Black | Polyolefin (POE) | -40-120 °C | Several | Tinned | Yes | 79.04 mm |
No
|
|
|
- Total: 8
Other information
- Total: 8
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RADOX 3GKW, 3x0.75mm2, BLACK 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12561182 |
Yes
|
|
|
| RADOX 3GKW, 9x1.0mm2, BLACK 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12561196 |
No
|
|
|
| RADOX 3GKW, 3x1.5mm2, BLACK 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12561200 |
No
|
|
|
| RADOX 3GKW, 3g1.5mm2, BLACK 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12563588 |
No
|
|
|
| RADOX 3GKW, 5x1.5mm2, BLACK 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12561202 |
No
|
|
|
| RADOX 3GKW, 8x1.5mm2, BLACK EMC, 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 12567854 |
No
|
|
|
| RADOX 3GKW, 3g2.5mm2, BLACK 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | RADOX 3GKW, 3G2.5MM2, SVART | 12563590 |
No
|
|
|
| RADOX 3GKW, 2x10mm2, XM, BLACK EMC, 600V, HF, FT, 120C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Radox 3GKW Multi conductor | 3GKW | 84152221 |
No
|
|
|
- Total: 8
