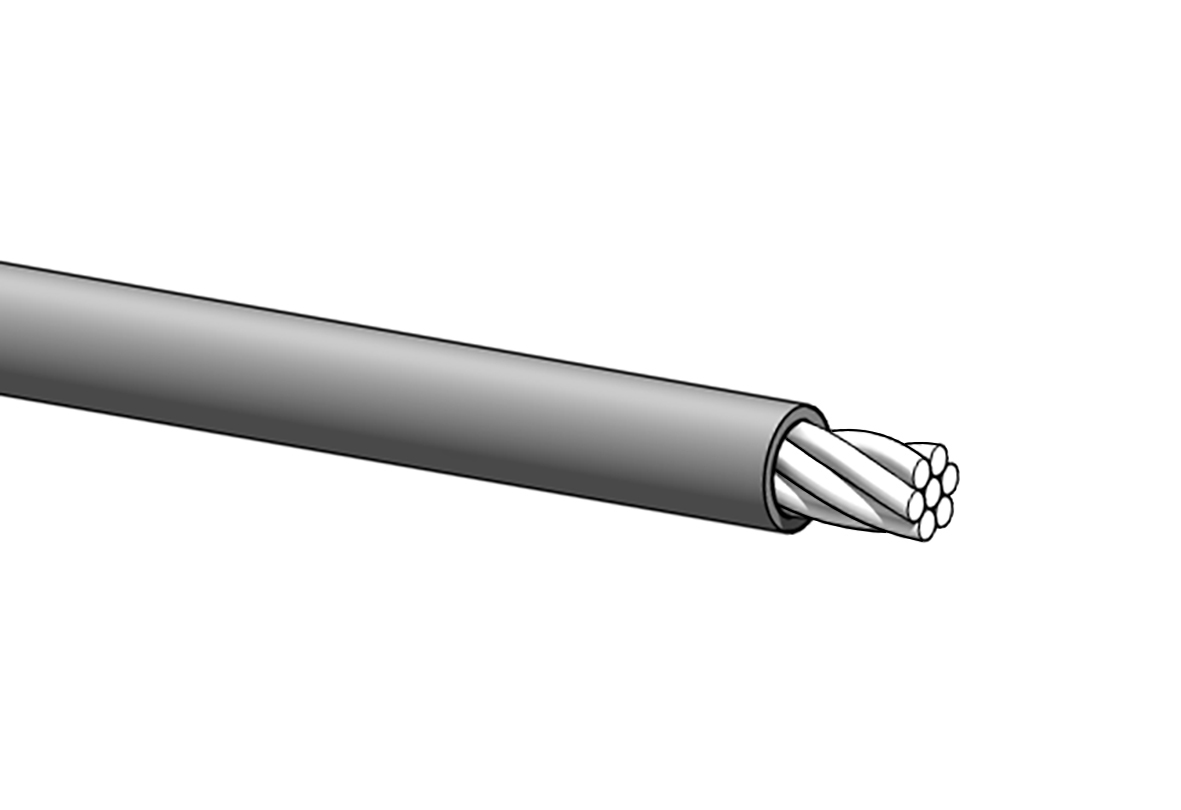

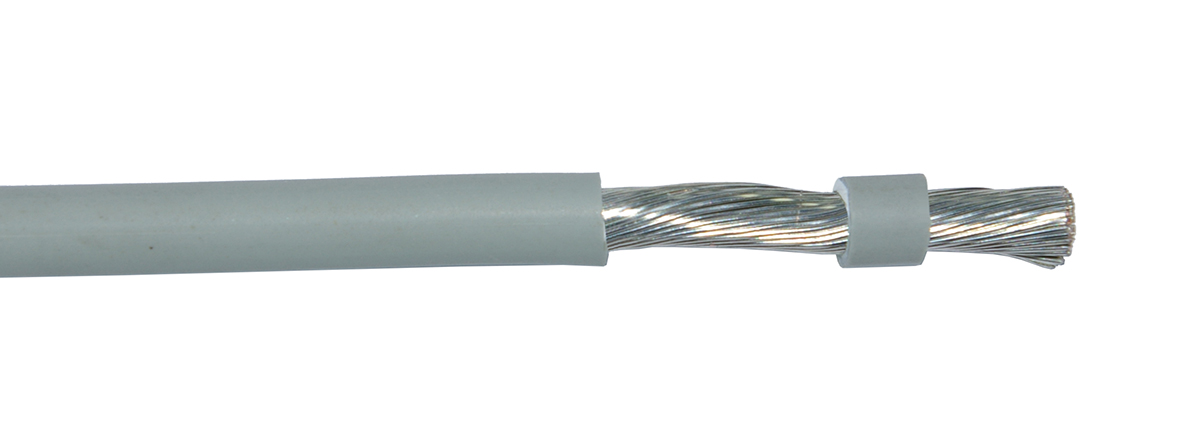

RADOX 3 GKW 600/1000 V - Single conductor

Halogenfri kopplingskabel för fast förläggning i tågapplikationer, lamparmaturer, elektriska applikationer samt kabeldragning i vagnar, terminaler och annan kraftförsörjningsapparatur. Tålig mot hög mekanisk belastning, olja och bränsle.

Show item list

Technical properties

Number of cores:
1 .
Material core insulation:
Polyolefin
Specification core insulation:
Other
Core identification:
None
Protective conductor:
No
Material outer sheath:
None
Specification material outer sheath:
Other
Colour outer sheath:
Blue, Grey, Red, Black, Other
Flame retardant:
According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration:
-40-120 °C
Conductor material:
Copper
Twisted cores:
No
Max. conductor temperature:
120 °C
Screen:
No
Protective barrier:
N/A
Armouring/reinforcement:
None
Insulation integrity:
N/A
Drain wire:
No
Nominal voltage:
600 V
Halogen free:
Yes, Yes
Conductor category:
Class 5 = flexible
Colour:
Grey, Green/yellow, Black, Blue, Red
Material insulation:
Polyolefin (POE)
Operating temperature:
-40-120 °C
Core colour:
Blue, Grey, Green/yellow, Red, Black
Conductor surface:
Tinned
Packaging:
Spool HS200, Spool HS400, Spool HS401, CK
Min. permitted bending radius, stationary application/permanent installation:
42.9 mm, 26.7 mm, 35.7 mm, 8.1 mm, 11.85 mm, 21.75 mm, 6 mm, 6.6 mm, 7.35 mm, 9.9 mm, 14.1 mm, 30.6 mm, 17.55 mm, 53.7 mm, 47.7 mm

Show more

  • Total: 33

12548125-500

Availability:
Yes

12553865-500

Availability:
No

12548126-500

Availability:
Yes

12553867-500

Availability:
No

12551402-500

Availability:
No

12561390-500

Availability:
No

12545286-500

Availability:
Yes

12551429-3900

Availability:
Yes

12553871-500

Availability:
No

12583121-500

Availability:
No

12583122-500

Availability:
No

12545288-500

Availability:
Yes

12553873-500

Availability:
Yes

12553875-100

Availability:
Yes

12545290-500

Availability:
Yes

12548127-500

Availability:
Yes

12553877-500

Availability:
Yes

12547689

Availability:
No

12545153-100

Availability:
No

12553879

Availability:
No

12566864-100

Availability:
No

12545292-100

Availability:
No

12561393

Availability:
No

12543216-100

Availability:
No

12553881

Availability:
No

12553883

Availability:
No

12553885

Availability:
No

12545155-100

Availability:
No

12553887

Availability:
Yes

12543214-50

Availability:
No

12548671

Availability:
No

12553889

Availability:
No

12542936

Availability:
No
  • Total: 33

Manuals, Datasheets, Sketches & Drawings

  • Total: 33
Product Description Availability
RADOX 3GKW, 0.5mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 0.5mm2, GREEN/YELLOW SPOOL HS151, 600V, HF,FT, 120C
No
RADOX 3GKW, 0.75mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 0.75mm2, GREEN/YELLOW SPOOL HS200, 600V, HF,FT, 120C
No
RADOX 3GKW, 1.0mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
No
RADOX 3GKW, 1.5mm2, BLACK SPOOL HS200, 600V, HF, 120C
No
RADOX 3GKW, 1.5mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 1.5mm2, GREY CK, 600V, HF, FT, 120C
Yes
RADOX 3GKW, 1.5mm2, GREEN/YELLOW SPOOL HS200, 600V, HF,FT, 120C
No
RADOX 3GKW, 2.5mm2, BLUE SPOOL HS400, 600V, HF, 120C
No
RADOX 3GKW, 2.5mm2, RED SPOOL HS400, 600V, HF, 120C
No
RADOX 3GKW, 2.5mm2, GREY SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 2.5mm2, GREEN/YELLOW SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 4.0mm2, GREEN/YELLOW SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 4.0mm2, GREY SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 6.0mm2, GREY SPOOL HS401, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 6.0mm2, GREEN/YELLOW SPOOL HS401, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 10mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 10mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 16mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 16mm2, BLACK 600V, HF, 120C
No
RADOX 3GKW, 16mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 25mm2, BLACK 600V, HF, 120C
No
RADOX 3GKW, 25mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 25mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 35mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 50mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 50mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 70mm2, GREEN/YELLOW 600V, HF,FT, 120C
Yes
RADOX 3GKW, 70mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 95mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 95mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 120mm2, GREY 600V, HF,FT, 120C
No
  • Total: 33
  • Total: 33
Product Description Availability
RADOX 3GKW, 0.5mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 0.5mm2, GREEN/YELLOW SPOOL HS151, 600V, HF,FT, 120C
No
RADOX 3GKW, 0.75mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 0.75mm2, GREEN/YELLOW SPOOL HS200, 600V, HF,FT, 120C
No
RADOX 3GKW, 1.0mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
No
RADOX 3GKW, 1.5mm2, BLACK SPOOL HS200, 600V, HF, 120C
No
RADOX 3GKW, 1.5mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 1.5mm2, GREY CK, 600V, HF, FT, 120C
Yes
RADOX 3GKW, 1.5mm2, GREEN/YELLOW SPOOL HS200, 600V, HF,FT, 120C
No
RADOX 3GKW, 2.5mm2, BLUE SPOOL HS400, 600V, HF, 120C
No
RADOX 3GKW, 2.5mm2, RED SPOOL HS400, 600V, HF, 120C
No
RADOX 3GKW, 2.5mm2, GREY SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 2.5mm2, GREEN/YELLOW SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 4.0mm2, GREEN/YELLOW SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 4.0mm2, GREY SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 6.0mm2, GREY SPOOL HS401, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 6.0mm2, GREEN/YELLOW SPOOL HS401, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 10mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 10mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 16mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 16mm2, BLACK 600V, HF, 120C
No
RADOX 3GKW, 16mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 25mm2, BLACK 600V, HF, 120C
No
RADOX 3GKW, 25mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 25mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 35mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 50mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 50mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 70mm2, GREEN/YELLOW 600V, HF,FT, 120C
Yes
RADOX 3GKW, 70mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 95mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 95mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 120mm2, GREY 600V, HF,FT, 120C
No
  • Total: 33
  • Total: 33
Product Description Availability
RADOX 3GKW, 0.5mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 0.5mm2, GREEN/YELLOW SPOOL HS151, 600V, HF,FT, 120C
No
RADOX 3GKW, 0.75mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 0.75mm2, GREEN/YELLOW SPOOL HS200, 600V, HF,FT, 120C
No
RADOX 3GKW, 1.0mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
No
RADOX 3GKW, 1.5mm2, BLACK SPOOL HS200, 600V, HF, 120C
No
RADOX 3GKW, 1.5mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 1.5mm2, GREY CK, 600V, HF, FT, 120C
Yes
RADOX 3GKW, 1.5mm2, GREEN/YELLOW SPOOL HS200, 600V, HF,FT, 120C
No
RADOX 3GKW, 2.5mm2, BLUE SPOOL HS400, 600V, HF, 120C
No
RADOX 3GKW, 2.5mm2, RED SPOOL HS400, 600V, HF, 120C
No
RADOX 3GKW, 2.5mm2, GREY SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 2.5mm2, GREEN/YELLOW SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 4.0mm2, GREEN/YELLOW SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 4.0mm2, GREY SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 6.0mm2, GREY SPOOL HS401, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 6.0mm2, GREEN/YELLOW SPOOL HS401, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 10mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 10mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 16mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 16mm2, BLACK 600V, HF, 120C
No
RADOX 3GKW, 16mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 25mm2, BLACK 600V, HF, 120C
No
RADOX 3GKW, 25mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 25mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 35mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 50mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 50mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 70mm2, GREEN/YELLOW 600V, HF,FT, 120C
Yes
RADOX 3GKW, 70mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 95mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 95mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 120mm2, GREY 600V, HF,FT, 120C
No
  • Total: 33
  • Total: 33
Product Description Availability
RADOX 3GKW, 0.5mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 0.5mm2, GREEN/YELLOW SPOOL HS151, 600V, HF,FT, 120C
No
RADOX 3GKW, 0.75mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 0.75mm2, GREEN/YELLOW SPOOL HS200, 600V, HF,FT, 120C
No
RADOX 3GKW, 1.0mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
No
RADOX 3GKW, 1.5mm2, BLACK SPOOL HS200, 600V, HF, 120C
No
RADOX 3GKW, 1.5mm2, GREY SPOOL HS200, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 1.5mm2, GREY CK, 600V, HF, FT, 120C
Yes
RADOX 3GKW, 1.5mm2, GREEN/YELLOW SPOOL HS200, 600V, HF,FT, 120C
No
RADOX 3GKW, 2.5mm2, BLUE SPOOL HS400, 600V, HF, 120C
No
RADOX 3GKW, 2.5mm2, RED SPOOL HS400, 600V, HF, 120C
No
RADOX 3GKW, 2.5mm2, GREY SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 2.5mm2, GREEN/YELLOW SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 4.0mm2, GREEN/YELLOW SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 4.0mm2, GREY SPOOL HS400, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 6.0mm2, GREY SPOOL HS401, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 6.0mm2, GREEN/YELLOW SPOOL HS401, 600V, HF,FT, 120C
Yes
RADOX 3GKW, 10mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 10mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 16mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 16mm2, BLACK 600V, HF, 120C
No
RADOX 3GKW, 16mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 25mm2, BLACK 600V, HF, 120C
No
RADOX 3GKW, 25mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 25mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 35mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 50mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 50mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 70mm2, GREEN/YELLOW 600V, HF,FT, 120C
Yes
RADOX 3GKW, 70mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 95mm2, GREY 600V, HF,FT, 120C
No
RADOX 3GKW, 95mm2, GREEN/YELLOW 600V, HF,FT, 120C
No
RADOX 3GKW, 120mm2, GREY 600V, HF,FT, 120C
No
  • Total: 33

Back to top

Do you need help finding the right product or other advice contact us.

Nelco Contact AB

Daléns gata 7

195 61 Arlandastad

Sweden



TEL: +46 (0)8 754 70 40

MAIL: order@nelco.se

Product Categories

Connectors

Installation Material

Connection & Completion

Cable

Tools & Machines

Linecard

About Nelco

About us

Values

Quality & Environment

GDPR

Contact

Delivery Terms

Returns

Contact us

FAQ



News

Corporate news

Fairs & exhibitions

Career

Social

LinkedIn

facebook

Instagram

Newsletter

We are using Cookies to give you a superior user experience. If you want to find out more about cookies and how we use them, please go to our cookie page. Further browsing of this site indicates that you accept our cookie policy.
Accept
