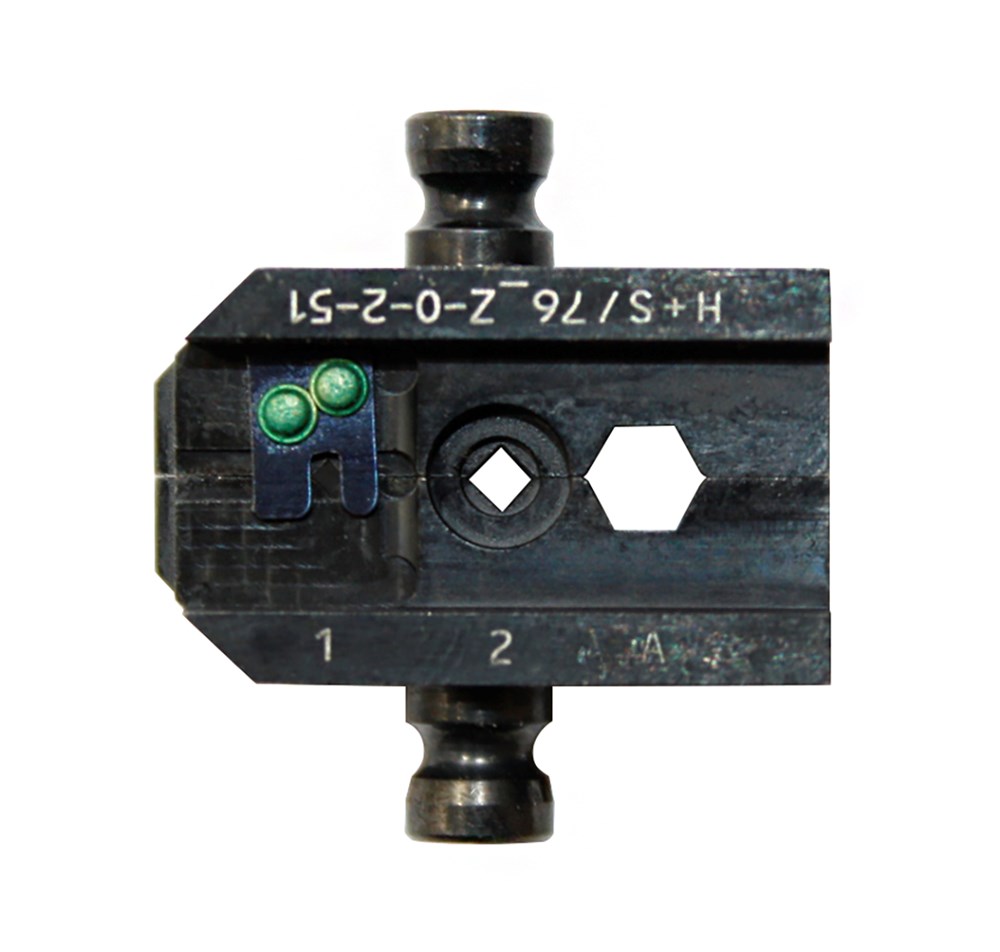

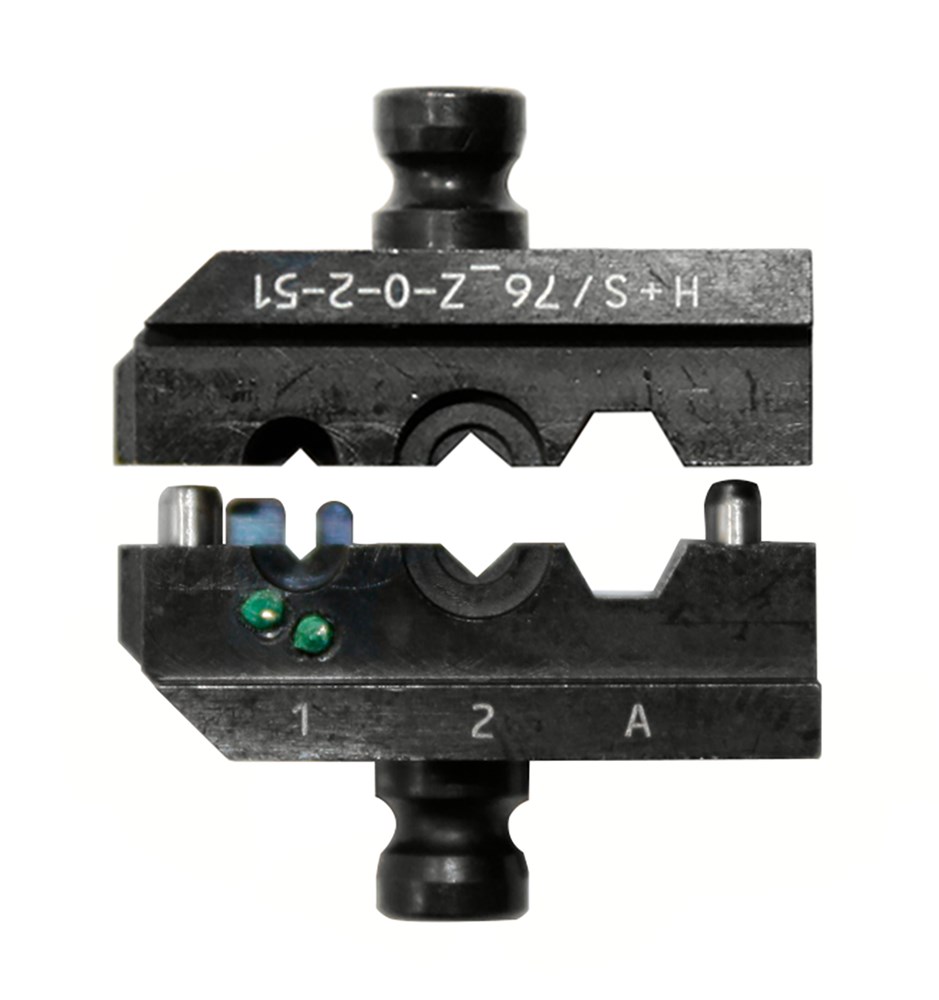

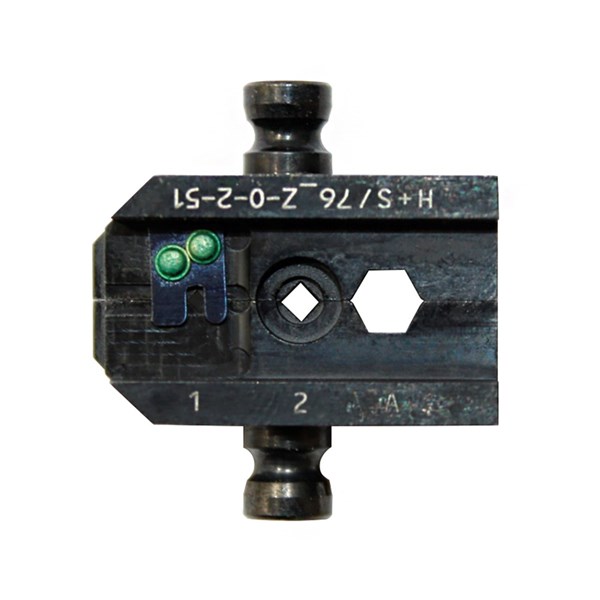

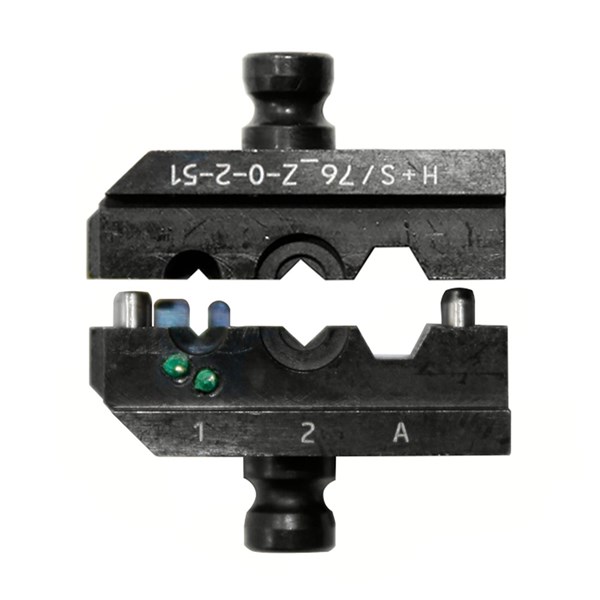

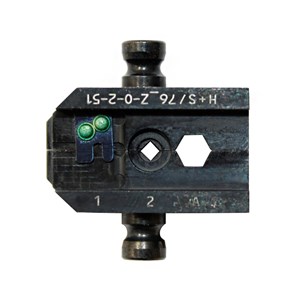

CRIMP DIES COAX FOR 22544754 76_Z-0-2-51 1/2A
22544756
- Availability:
-
No
- Total: 1
Related items
Coaxial connectors
Crimping coaxial for Huber & Suhner coaxial connectors.
22544754: Small tool without dies

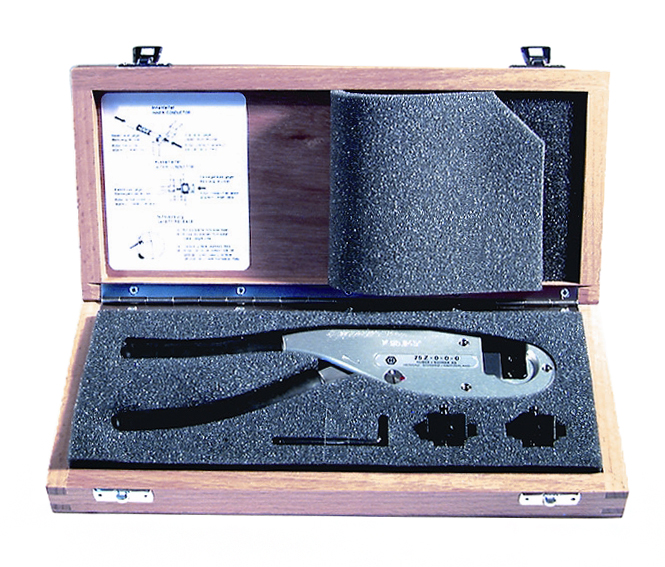

22544755: Small tool incl. 3 sets of dies (1/2A, 2B, 2C)
Dies:
1/2A: 76 Z-0-2-51, square 0.7/1.6 mm, hexagon 3.3 mm
2B: 76 Z-0-3-51, square 1.6 mm, hexagon 5.5 mm
2C: 76 Z-0-4-51, square 1.6 mm, hexagon 6.5 mm
- Total: 1
Product Properties
| With locking device (for mechanical tools) | Yes |
|---|---|
| Inserts exchangeable | No |
| Number of included inserts | 1 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Screen connector |
| Construction/operation | Mechanical |
| For component | Coaxial |
| Compression shape | Hexagon |
Dimensions
| MOQ | 1 . |
|---|---|
| Unit | pcs |
| Length | 250 mm |
Logistics
| Barcode | 761183207487 |
|---|---|
| Country of origin | CH |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | 22544756 |
| Taric code | 82073090 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Huber+Suhner |
| Product Group | Crimp dies Huber & Suhner |
| Search Description | 76_Z-0-2-51 |
| Alternative SKU | 22544756 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| General compliance statement from manufacturer | https://www.nelco.se/Image/GetDocument/1184 |
| REACH | No SVHC (241 Subs. 27 June 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | Compliant |
